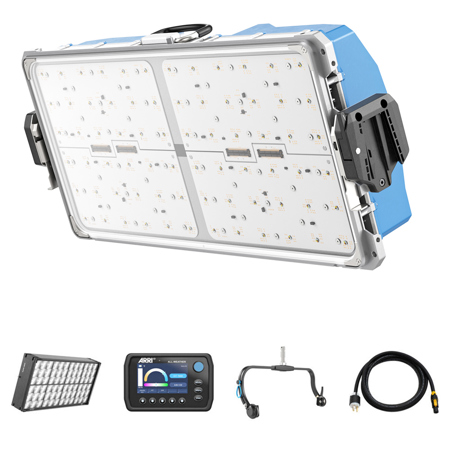

ARRI SkyPanel X21 800W RGBACL Modular Soft/Hard LED Light Panel Kit, Edison Connector, Blue

SkyPanel X modular system
ARRI's SkyPanel X brings advanced LED technology to the forefront with its flexible modular concept. By quickly and seamlessly expanding into multiple sizes, the SkyPanel X offers enhanced possibilities and meets the extensive needs of modern sets. It offers three configurations: X21 (a 2:1 unit), X22 (an expanded 2:2 surface), and X23 (a large 2:3 panel), capable of generating either wide soft light or intense hard light, via HyPer Optics or X21 Domes.

With ARRI's quick-lock system, setting up your modular light is a breeze. Choose between a traditional yoke or spigots directly on the frames, and configure your large fixture as an array in just two minutes, including wiring. It's quick, reliable, and really bright.

Reach beyond the Sky
Introduced as a modular system and SkyPanel X offers native soft and hard light technology, setting a new bar not only in terms of dimming and color science, but also in lux output and beam quality for medium to long throws. With up to 4,800 lux at 10 m / 32.8 ft and eight pixels per panel; dynamic CCT range of 1,500 K - 20,000 K; RGBACL full-spectrum color engine; wireless control; integrated power supply; advanced networking possibilities; and an IP66 rating, the SkyPanel X is an all-weather lighting solution tailored to existing workflows.

• Multi-Unit array and modularity
• IP66 All-weather
• Native Soft, Native Hard
• 4800 lux @ 10m / 32.8 ft for X21

The all-weather SkyPanel X
The SkyPanel X is your all-weather lighting solution. Engineered and IP66 certified for resilience against rain, storms, and cold water pressure washers, these lights embody innovation, reliability, and durability.

Soft light
• High lumen output
• Flicker-free low end dimming from 100% -0% for close-ups
• Adaptable for traditional SkyPanel techniques and the new X21 Dome
• Create 8-pixel patterns for effects
• Efficient and simplified workflow for quick and easy set up

Modular experience
• Upgrade your lighting setup easily with modular SkyPanel X units
• Get reliable power supply through one single power cable
• Benefit from tool-less frames with quick-lock system
• Maximum control capabilities in only one DMX profile

Control options
Explore the multiple control options for SkyPanel X, including the robust ALL-WEATHER Control Panel, ARRI's new LiCo App for Bluetooth control, LumenRadio's wireless integration, and much more!

A wide range of SkyPanel X applications
Explore modular panel lighting with SkyPanel X.

Whether you are a gaffer, DP, programmer, lighting technician or lighting designer, find the perfect configuration for your needs with our flexible solution.

Digital innovations with SkyPanel X
• Explore the future of virtual production lighting with SkyPanel X's digital twin
• Enjoy exceptional color quality through the ARRI ALEXA Modes
• Manage settings, effects, and more using the ARRI LiCo App

- Hard light -
• Optimal rounded beam with maximum punch and quality
• Create a long throw fixture with high-performance optic
• Unique pixel looks
• Ideal on a cherry picker, through windows, or bounced

SkyPanel X - hard light experience
With HyPer Optics, the SkyPanel X becomes a high-output ARRI hard light panel, casting a refined rounded beam.

For medium and long throws
As a native hard light system, SkyPanel X provides a rounded, spotted beam with extraordinary punch and quality.

8 pixel zones per panel
The HyPer Optic offers a high-contrast pixel look with solid, saturated colors and no light leak between zones. Every pixel is made from a 3x3 square of individually lensed LED clusters and is internally blocked from its neighboring pixels.

Hyper Optic
This hot-swappable lens for the X21 lamphead provides the highest performance while being compatible with third-party accessories.

- Dome -
Fast, beautiful, native soft light.

Close-to-talent lighting
• Great dimming curve and color
• As quiet as the S60-C
• Perfect soft wrap
• Flexible control options with built-in wireless
• Easy tweaking of softbox and diffusion frame

Features
• Hot-swappable diffuser
• Included with each SkyPanel X lamphead
• Most efficient, brilliant, and uniform soft
• lighting when directly over LEDs
• Interchangeable with modifiers

- ALL-WEATHER Control Panel -
An IP66 on-board display and remote device for maximum flexibility. The ALL-WEATHER Control Panel is the perfect companion for SkyPanel X. It is an onboard display thanks to X21's dedicated bay. It is a handy remote device when the lamphead is easily reachable thanks to its LEMO connector. It is a powerful tool to build X22 and X23 arrays for centralized control. And it is a great console companion to change settings and create presets on the fly. The ALL-WEATHER Control Panel runs on LiOS and is compatible with other ARRI fixtures such as the Orbiter.

Features
• Control panel for maximum flexibility
• Quick navigation, advanced user interface, and simple menus
• Optional control panel cable 5 m / 16.4 ft or 15 m / 49.2 ft

- X21 Manual Yoke -
The X21 Manual Yoke is the next generation stirrup for the SkyPanel X21 format. It is designed with a bent structure to allow for better tilting when using soft boxes, and it is equipped with a convenient quick-lock system that allows to remove the yoke in two seconds. It is suited for any tripod or rigging system that fits 28 mm spigots, and it includes an angle indicator close to the side lever and a blue cord for holding cables.

Features
• Yoke with Quick-lock system
• No tools needed for installation
• Tilt lock lever and tilt angle indicator
• Bent aluminum profile with attached 28 mm spigot / Junior pin

- 9.8' powerCON TRUE 1 to Edison Mains Cable -
The mains cable connects the SkyPanel PSU or SkyPanel X to a mains power outlet. It can be used for X21 in the SkyPanel X line, or for S30-C, S60-C and S120-C in the Classic SkyPanel line. This cable is suitable for all-weather use
