What is the color temperature range of the SkyPanel X21?

The SkyPanel X21 offers a dynamic CCT range from 1,500 K to 20,000 K, allowing for versatile color temperature adjustments.

How is the SkyPanel X21 controlled wirelessly?

The SkyPanel X21 can be controlled wirelessly using ARRI's LiCo App for Bluetooth control and LumenRadio's wireless integration.

What makes the SkyPanel X21 suitable for outdoor use?

The SkyPanel X21 is IP66-rated, making it resistant to rain, storms, and high-pressure water, ensuring durability in outdoor environments.

Can the SkyPanel X21 be used for both soft and hard lighting?

Yes, the SkyPanel X21 features native soft and hard light technology, making it adaptable for a wide range of lighting applications.

Is the SkyPanel X21 easy to integrate into existing setups?

Yes, the modular design of the SkyPanel X21 includes tool-less frames and a quick-lock system, allowing for easy integration and upgrades.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

ARRI SkyPanel X21 OB Specifications

  • Photometrics (5600K)

    1543 fc / 16,602 Lux at 3.3' (1m)
    171 fc / 1839 Lux at 9.8' (3m)
    43 fc / 462 Lux at 19.6' (6m)
    15 fc / 161 Lux at 32.8' (10m)

    With Filter
    1263 fc / 13,589 Lux at 3.3' (1m)
    140 fc / 1506 Lux at 9.8' (3m)
    35 fc / 376 Lux at 19.6' (6m)
    13 fc / 139 Lux at 32.8' (10m)

  • Photometrics (3200K)

    1458 fc / 15,688 Lux at 3.3' (1m)
    162 fc / 1743 Lux at 9.8' (3m)
    40 fc / 430 Lux at 19.6' (6m)
    15 fc / 161 Lux at 32.8' (10m)

    With Filter
    1198 fc / 12,890 Lux at 3.3' (1m)
    133 fc / 1431 Lux at 9.8' (3m)
    33 fc / 355 Lux at 19.6' (6m)
    12 fc / 129 Lux at 32.8' (10m)

  • Color Temperature

    1500 to 20000K

  • Power

    800W

  • Format size

    2:1 (horizontal)

  • Light engines

    4

  • Pixel zones

    8 max.

  • Max. output (lux)

    4,800 Lux @ 10 m, 5,600 K (native hard)

  • Max. output (lumen)

    51,809 Lumen (native open-face)

  • Connectors

    2x AC (In and Through), max. 20 A, TRUE1 TOP
    1x DC (In) 48 V for battery use
    2x DMX (In and Out), XLR-5pin
    2x LAN / Ethernet, RJ45, EtherCON compatible
    1x USB type C
    1x LEMO for ALL-WEATHER Control Panel

  • Rigging System

    Manual Yoke, bent, Quick-Release, 28mm spigot
    Twin Quick-Lock bracket for multi-unit setups

  • AC voltage

    100 - 240 V-, 50/60Hz

  • PSU

    Integrated

  • LED engine

    Full Spectrum, 6-color RGBACL LED

  • Native quality

    Hard (HyPer Optic), soft (X21 Dome or S60 Adapter), open-face

  • CCT range

    1,500 K - 20,000 K

  • CRI

    90 min. / 99 max. (High CRI VariFan mode)

  • TLCI

    93 typical (High CRI VariFan mode)

  • Camera sensor matching

    Yes, via ARRI ALEXA Mode

  • Dimming performance

    Flicker free, High-res low end dimming

  • Native beam angle

    11 Degree (hard), 106 Degree (soft), 120 Degree (open-face)

  • Diffuser

    X21 Dome (Included), Beam Enhancer filter, S60-C diffusers (Optional)

  • Accessory compatibility

    All SkyPanel S60-C accessories via S60 Adapter

  • Type of display

    Removable ALL-WEATHER Control Panel with LiOS3

  • Operational modes

    Standard (low noise), High Output, VariFan, ARRI ALEXA

  • Color modes

    CCT, HSI, RGBW, RGBACL, Effects, XY, Gel, Source Matching

  • DMX presets

    Yes, via Control Panel, RDM and DMX-512A

  • Legacy DMX modes

    Compatible with S60-C mode 2 and 6

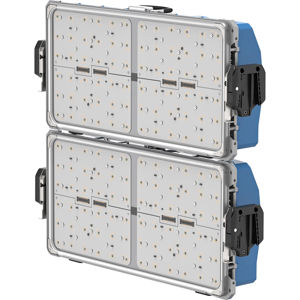

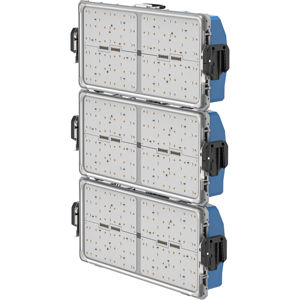

  • Multi-array setup

    Yes (up to 3 units in just one single DMX profile)

  • High-speed mode

    Yes

  • IP-rating

    IP66 (High-pressure jet cleaning, rain, heavy storms, high humidity)

  • Cooling system

    Passive + Active cooling system with double heat sink

  • Integrated wired control

    DMX-512A, RDM, Art-Net 4, sACN
    LAN (Web-control, ALSM, mDNS Bonjour, PTP, NTP)

  • Integrated wireless control

    CRMX Classic, CRMX2, W-DMX G3 / G4 / G4S / G5, BLE, Native Bluetooth 5.0

  • Daisy-chain modularity

    Yes, via TRUE1 TOP (power) and EtherCON / RJ45 (data)

  • Pre-programmed effects

    15 Pixel Macros, 15 effects

  • Max. ambient temperature

    104 Degree F (40 Degree C)

  • Certifications pending

    CE, UKCA, CB, ENEC, cNRTLus, FCC, ICES, PSE, KC, SRRC and more

  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • Dimensions

    Fixture only: 29.1 x 13.3 x 6.1" (738 x 339 x 154mm)
    Dome: 28 x 2.8 x 12.7" (711 x 70 x 323mm)

  • Weight

    Fixture only: 33 lbs (15kg) (Approx.)
    With Yoke Man: 39.7 lbs (18kg) (Approx.)
    Dome: 1.3 lbs (600g) (Approx.)

7 Accessories for ARRI SkyPanel X21 800W RGBACL Modular LED Light Panel, Open Box

  • All Accessories (7)
  • Controllers (1)
  • Frames (1)
  • Light Stands (1)
  • Clamps (1)
  • Dome (1)
  • Wireless and Wired Systems (1)
  • Cable Management (1)

About ARRI SkyPanel X21 OB

It's time to elevate your lighting setup with the SkyPanel X21 800W RGBACL Modular LED Light Panel, a groundbreaking innovation in the world of professional lighting. This modular system redefines lighting standards with its native soft and hard light technology, offering superior dimming, color science, and lux output for medium to long throws. Delivering up to 4,800 lux at a distance of 10 meters (32.8 feet) and featuring eight pixels per panel, the SkyPanel X21 provides a dynamic CCT range from 1,500 K to 20,000 K. Its RGBACL full-spectrum color engine ensures vibrant and accurate color reproduction, making it an ideal choice for any lighting professional.

Designed for versatility, the SkyPanel X21 includes wireless control capabilities, an integrated power supply, and advanced networking options, all housed within an IP66-rated enclosure. This all-weather lighting solution is engineered to withstand rain, storms, and high-pressure water, ensuring reliability and durability in any environment.

The SkyPanel X21 excels in both soft and hard lighting applications. Its soft light offers high lumen output with flicker-free dimming from 100% to 0%, perfect for close-up shots and adaptable to traditional SkyPanel techniques as well as the new X21 Dome. Create stunning 8-pixel patterns for dynamic lighting effects and enjoy a streamlined workflow for quick and easy setup.

For hard light applications, the SkyPanel X21 delivers an optimal rounded beam with maximum punch and quality, making it ideal for long throw fixtures, use on cherry pickers, through windows, or for bounce lighting. Its modular design allows for easy upgrades and integration into existing setups, with tool-less frames and a quick-lock system for maximum convenience.

Control your lighting with ease using the SkyPanel X's multiple control options, including the robust ALL-WEATHER Control Panel, ARRI's innovative LiCo App for Bluetooth control, and LumenRadio's wireless integration. This flexibility ensures you can tailor the lighting to your specific needs, whether you are a gaffer, DP, programmer, lighting technician, or lighting designer.

Explore the future of virtual production lighting with SkyPanel X's digital twin technology and enjoy exceptional color quality through ARRI ALEXA Modes. Manage settings, effects, and more with the intuitive ARRI LiCo App. The SkyPanel X21 is not just a lighting solution; it's a comprehensive tool for creative professionals seeking unparalleled performance and flexibility in their lighting setups.

ARRI SkyPanel X21 OB Features

  • SkyPanel X21 800W RGBACL Modular LED Light Panel
  • LED panel with native soft and native hard light, open-face lighting for bouncing purposes, and several modular configurations
  • IP66 all-weather professional lighting solution
  • Excelling in color rendition, dimming, and beam quality
  • Dynamic CCT range of 1,500 K - 20,000 K
  • RGBACL full-spectrum color engine
  • 8 pixels for X21
  • Integrated PSU and built-in wireless control
  • Dome
  • Hot-swappable diffuser
  • Included with each SkyPanel X lamphead
  • Most efficient, brilliant, and uniform soft lighting when directly over LEDs
  • Interchangeable with modifiers

Warranty Information

This product has a limited warranty of 36 months for parts and 12 months for labor.

Key Features

  • High-output SkyPanel X21 LED light panel with up to 4,800 lux at 10 meters
  • RGBACL full-spectrum color engine for vibrant and accurate color reproduction
  • IP66-rated for all-weather durability and resilience against harsh conditions
  • Versatile lighting with native soft and hard light technology for diverse applications
  • Wireless control options including ARRI LiCo App and LumenRadio integration
  • Modular design with tool-less frames and quick-lock system for easy setup and upgrades

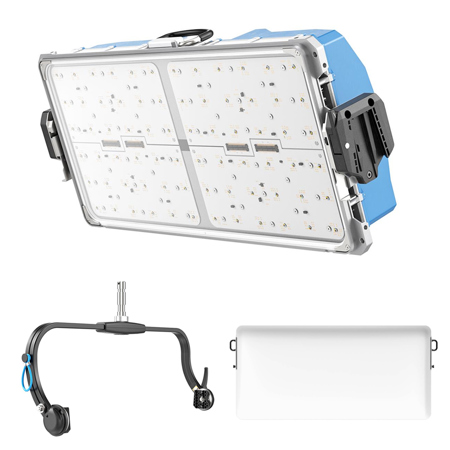

What's in the box:

  • ARRI SkyPanel X 800W RGBACL Modular LED Light Panel
  • X21 Dome
  • AC Power Supply (Integrated)
  • ARRI 3 Year Limited Warranty
