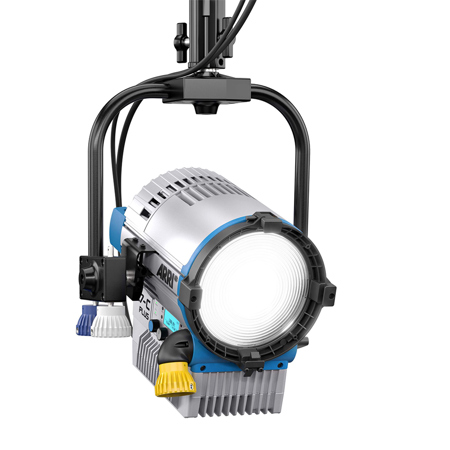

ARRI L7-C Plus 7" 220W RGBW LED Fresnel Light with Pole Operated Yoke, Blue/Silver, Cable Not Included

SKU: ARL10048806 MFR: L1.0048806
Earn VIP Reward Points

Key Features

  • Achieve perfect lighting with this 220W ARRI LED Fresnel, ideal for studio environments.
  • Enjoy superior color accuracy (CRI 94, TLCI 89) for true-to-life visuals in every shot.
  • Easily control brightness & color temp (2800-10000K) via onboard, DMX, or EtherCon.
  • Durable LED lighting with 50,000-hour life minimizes maintenance and maximizes uptime.
  • This ARRI Fresnel features pole-operated yoke for precise pan, tilt, and focus control.
  • Low heat dissipation ensures comfortable shoots, even in small studio spaces with this LED.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ARRI L7-C PLUS Specifications

General

General

Jump to...
  • Color Temperature

    Daylight

  • Color Temperature Range

    2800 to 10,000K

  • Beam Angle

    12 Degree to 45 Degree half peak angle

  • Lens Diameter

    7" / 177.8 mm

  • Type of Lamphead

    LED Fresnel

  • Optical System

    focusable Fresnel

  • Light Aperture

    7" (175mm)

  • Lamp Type

    180 W RGBW LED light engine

  • Colored Light

    Full RGB+W color gamut with hue and saturation control

  • Green-Magenta Adjustment

    Continuously adjustable (full minusgreen to full plusgreen)

  • Color Temperature Tolerance

    +/- 100 K (nominal), +/- 1/8 green-magenta (nominal)

Light Fixture

Jump to...
  • Number of Heads/Lights

    1

  • Photometrics

    12° at 3200K:
    10,776 fc / 116,000 Lux at 3.3' / 1 m*
    1198 fc / 12,900 Lux at 9.8' / 3 m
    431 fc / 4640 Lux at 16.4' / 5 m
    12° at 5600K:
    10,497 fc / 113,000 Lux at 3.3' / 1 m*
    1170 fc / 12,600 Lux at 9.8' / 3 m
    419 fc / 4520 Lux at 16.4' / 5 m
    45° at 3200K:
    1244 fc / 13,400 Lux at 3.3' / 1 m*
    138 fc / 1490 Lux at 9.8' / 3 m
    49 fc / 536 Lux at 16.4' / 5 m
    45° at 5600K:
    1216 fc / 13,100 Lux at 3.3' / 1 m*
    135 fc / 1460 Lux at 9.8' / 3 m
    48 fc / 524 Lux at

  • Dimming

    0 to 100 % continuous

  • Cooling System

    Fan

  • Color Accuracy Standard

    CRI 94
    TLCI 89

  • Power Source

    AC Power

  • Power Consumption

    220 W maximum

Mounting

Jump to...
  • Fixture Mounting

    Support Mount
    1x 1-1/8" Stud

  • Umbrella Mount

    No

  • Yoke Type

    Operated Yoke

Connectivity

Jump to...
  • Mobile App Compatible

    No

Physical Details

Jump to...
  • Dimensions

    14.3 x 13.8 x 11.8" / 36.2 x 35.1 x 30 cm

  • Weight

    22.5 lbs (10.2kg)

Control Options

Jump to...
  • Control

    On-board controller, EtherCon in & through, 5-Pin DMX in & through via adapter cable, USB-A

  • LAN / EtherCon

    Control and configuration via Art-Net, sACN, web page control of light and settings via HTTP

  • DMX / RDM via adapter cable

    DMX setup, hour counter, standard & manufacturer RDM commands

  • Software Interface - USB Type A

    Fixture service and settings configuration, fixture status, firmware upgrade through PC or Mac using ALSM

  • Apps

    ARRI Stellar
    ARRI Photometrics

  • Wireless Interface

    Via third party receiver

Electrical

Jump to...
  • Power Supply Range

    100 - 240 V-, 50 - 60 Hz

  • Lamphead Power Connection

    In and Through, powerCON TRUE1 compatible

  • Power Switch

    On/Off switch on cable

  • Daisy-chain

    Yes, power and data (powerCON TRUE1 and EtherCON compatible)

  • Protection Class / IP Rating

    I / IP20

  • Ambient Temperature Operation

    -4 to +113 Degree F (-20 to +45 Degree C)

  • Estimated LED Lifetime (L70)

    50,000 hours

  • Estimated Color Shift Over Lifetime

    +/- 5 % (CCT)

  • Certifications & Declaration

    CE, UKCA, CB, ENEC, cNRTLus, FCC, PSE

Mechanical

Jump to...
  • Color

    Blue/Silver

  • Versions

    Pole Operated

  • Handling

    Adjustable sliding stirrup
    High-strength tilt lock
    Pole operation option (pan, tilt, focus)

  • Mounting spigot

    28mm Junior pin

  • Tilt Angle

    +/- 90 Degree

Models
ARRI L7-C Plus 7" 220W RGBW LED Fresnel Light w/Pole Operated Yoke, Blue/Silver
$3,190.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

ARRI L7-C Plus 7" 220W RGBW LED Fresnel Light with Pole Operated Yoke, Black
$3,190.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

ARRI L5-C Plus 5" 135W RGBW LED Fresnel Light w/Pole Operated Yoke, Blue/Silver
$2,320.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

Kit Style1 Light Kit1 Light Kit1 Light Kit
Power SourceACACAC
MountPole Operated YokePole Operated YokePole Operated Yoke
Color TemperatureRGBWRGBWRGBW
Battery ConnectionNo Connection IncludedNo Connection IncludedNo Connection Included
Color Temperature Range2800-10000K2800-10000K2800-10000K
Specific Color TemperatureNANANA

About ARRI L7-C PLUS

Where professional lighting meets advanced technology, you'll find the ARRI L7-C Plus 7" 220W RGBW LED Fresnel Light with Pole Operated Yoke. This high-performance lighting solution boasts true Fresnel characteristics, including continuous focusability from spot to flood and a uniform, homogeneous light field. With up to 90% more light output than its predecessors, the L7-C Plus is a testament to ARRI's commitment to innovation and quality.

The L7-C Plus is powered by the latest, highly efficient LED technology, offering complete control over color and intensity. This makes it an ideal choice for applications requiring more punch or greater throwing distances, such as theater productions, live entertainment, and broadcast studios. Despite its superior performance, the L7-C Plus maintains a compact form factor, ensuring it fits seamlessly into any professional setup.

The light engine of the L7-C Plus is specially calibrated for optimum reproduction on broadcast and digital cinema cameras. This ensures pleasant skin tones and vividly rendered colors, with continuous control from 2,800 K to 10,000 K, between full plus or minus green and RGBW colors. A large selection of gels further enhances the versatility of this LED Fresnel light.

The L7-C Plus is built to last, with a robust and ergonomic design that meets the high standards of quality and reliability that ARRI is known for. Its flexibility makes it suitable for a wide range of applications, from continuous studio lighting and location work on movies and television, to live entertainment, photography, theater, and corporate productions.

Ease of use is at the heart of the L7-C Plus, with a familiar interface and enhanced connectivity options. The fixture offers network data input and lighting control via the ArtNet and Streaming ACN industry standards, simplifying workflows. On-board controls allow for quick access to all lamphead parameters, while advanced DMX control capabilities provide bi-directional feedback and reporting of key parameters.

The L7-C Plus also features a web portal for easy adjustments over an Ethernet or Wi-Fi network, and upgradable technology ensures the LED Fresnel is always running at peak performance. With its superior output, smooth operation, and advanced control options, the ARRI L7-C Plus 7" 220W RGBW LED Fresnel Light with Pole Operated Yoke is a powerful and versatile lighting solution for any professional setting.

ARRI L7-C PLUS Features

  • Up to 90% brighter, very similar size and weight to the original L-Series
  • Direct network connectivity for LAN input and light control via ArtNet and Streaming ACN
  • Continuous focusability from spot to flood
  • Smooth, homogeneous field of light
  • Complete control over color and intensity
  • Intuitive SkyPanel Classic onboard control and user interface
  • Compatible with standard barndoors and L-Series accessories

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Achieve perfect lighting with this 220W ARRI LED Fresnel, ideal for studio environments.
  • Enjoy superior color accuracy (CRI 94, TLCI 89) for true-to-life visuals in every shot.
  • Easily control brightness & color temp (2800-10000K) via onboard, DMX, or EtherCon.
  • Durable LED lighting with 50,000-hour life minimizes maintenance and maximizes uptime.
  • This ARRI Fresnel features pole-operated yoke for precise pan, tilt, and focus control.
  • Low heat dissipation ensures comfortable shoots, even in small studio spaces with this LED.

What's in the box:

  • ARRI L7-C Plus 7" 220W RGBW LED Fresnel Light with Pole Operated Yoke (Blue/Silver)
  • 1 1/8" (28mm) Junior Pin
  • ARRI 3 Year Limited Warranty
