ARRI 1200/1800W High Speed Electronic Ballast with ALF, DMX, ETL 120/220V, 1K H
See all Arri items

ARRI 1200/1800W High Speed Electronic Ballast with ALF, DMX, ETL 120/220V, 1K Hz

SKU: ARL20000358
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ARRI High Speed Elec. Ballast Specifications

  • Power Supply Input Range

    1200 / 1800W, automatic detection of the connected luminaire

  • Compatibility

    AS18, M18, Compact 1200, AS12, ARRI X 12, D12 heads

  • Line Voltage

    90 - 130V AC / 180 - 250V AC; 50/60 Hz; 1, N, PE (single phase)

  • Line Current

    24 - 17A / 12 - 9A

  • Apparent Power

    2250VA (max.)

  • Power Factor

    Approximately 0.98

  • Efficiency

    0.88 (min.)

  • Dimmer

    100 - 50%

  • Protection Class

    IP21

  • Compliance

    CE

  • Dimensions

    7.87" x 6.3" x 13.4" (200 x 160 x 340 mm)

  • Weight

    Approximately 17.6 lb (8.0 kg)

About ARRI High Speed Elec. Ballast

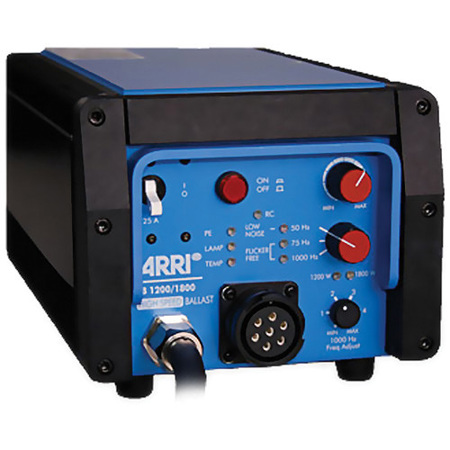

The ARRI 1200/1800W High Speed Electronic Ballast is a flicker-free power supply for 1,200 or 1,800W tungsten lamp heads. Compatible heads include the AS18, M18, Compact 1200, AS12, ARRI X 12 and D12.

ARRI High Speed Elec. Ballast Features

  • For 1,200W and 1,800W Lamp Heads
  • Supports Optional DMX Control
  • ALF (Active Line Filter)
  • CCL Technology
  • Dimmable
  • Multi-voltage

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • For 1,200W and 1,800W Lamp Heads
  • Supports Optional DMX Control
  • ALF (Active Line Filter)
  • CCL Technology
  • Dimmable
  • Multi-voltage
