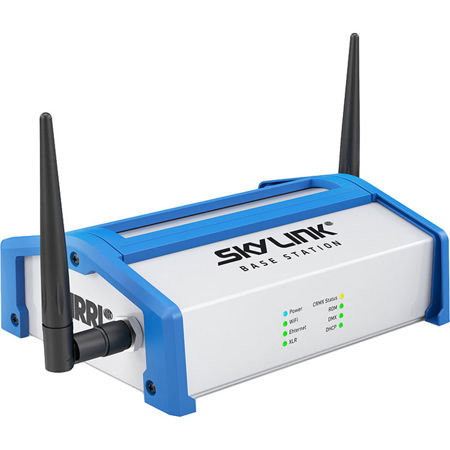

ARRI SkyLink Base Station with Edison Connector for SkyPanel LED Softlights, Up to 1640' CRMX Range, Blue/Silver

SKU: ARL20016359

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

ARRI SkyLink Specifications

  • Compatibility

    SkyPanel LED Softlights

  • Wireless Communication

    LumenRadio CRMX (DMX/RDM) Transmitter & Wi-Fi

  • Range

    CRMX: Up to 1640' (499.88m)
    Wi-Fi: Up to 246' (74.98m)

  • Frequency Range

    2402 - 2480MHz

  • Protocols

    DMX - 512(A), RDM ANSI E1.20, Art-Net, sACN

  • DMX Connector

    XLR 5-Pin Female

  • DMX Universe Support

    One Universe with 512 Channels

  • Ethernet

    EtherCON RJ45 Female

  • Antenna Connector

    Two RP-TNC Female

  • Antenna Type

    2x2 dBi RP-TNC Antenna

  • Control

    "Link" button for linking to CRMX devices
    Webpage interface for adjusting settings
    On-Board On/Off Switch

  • Power Supply Input Range

    100 to 240V, 50/60Hz

  • Power Supply Output Range

    12V DC

  • Power Input Connection

    2.5 x 5.5 DC Barrel Connector

  • Device Input Voltage

    5 - 12V DC

  • Certifications

    CE
    CB
    ENEC
    cNRTLus
    PSE

  • Ambient Temperature Operation

    -20 to 50 deg. C (-4 to 122 deg. F)

  • Protection Class

    III

  • IP Rating

    IP20

  • Dimensions

    10.7 x 6.0 x 5.4" (27.18 x 15.24 x 13.72cm)

  • Weight

    1.1kg (2.43 lbs)

About ARRI SkyLink

The perfect wireless solution for Arri SkyPanels is now available. Say goodbye to DMX cables with SkyLink. Arri and Innovative Dimmers have teamed up to create SkyLink: a two-part system that allows for wireless DMX and RDM communication to SkyPanels. The SkyLink Receiver and the SkyLink Base Station use LumenRadio for DMX/RDM communication and a Wi-Fi chip in the Base Station allows for direct control from a DMX control application on a tablet or computer. Setting up a control network has never been easier.

Wi-Fi to Wireless DMX
The real wireless magic happens in the SkyLink Base Station. Armed with two wireless chips, the SkyLink Base Station can communicate LumenRadio's Wireless DMX and the international standard of Wi-Fi. Therefore, a tablet or computer can communicate, via Wi-Fi, to the SkyLink Base Station which can, in turn, communicate the reliable CRMX standard to the SkyLink Receiver on the SkyPanel. This communication chain supports new and simple ways of controlling one or many SkyPanels

DMX + RDM = Total Control
Arri LED products have always included an excellent implementation of RDM (Remote Device Management) in addition to the DMX protocols. RDM allows for two-way communication with the fixture and enables the ability to change all settings on the lamp head remotely. The SkyLink system is fully RDM capable and allows for complete control over all aspects of the SkyPanel.

Outstanding Range
The reliable Wireless DMX in SkyLink allows for strong and consistent communication to the fixtures. With an outstanding range of 150m (500'), SkyLink performs well on stage with typical obstructions. In optimal conditions, for example direct line-of-sight, the SkyLink can receive a signal up to 500m (1640') away. This allows for dramatically increased freedom on set while still maintaining complete control over the SkyPanels.

ARRI SkyLink Features

  • Wireless for all SkyPanels
  • Wi-Fi to Wireless DMX
  • Fully RDM capable
  • Compact and rugged design
  • Power via USB port
  • Outstanding range
  • LumenRadio wireless technology
  • Available in kits or individually

What's in the box:

  • ARRI SkyLink Base Station
  • 2x Antenna
  • Power Supply
  • ARRI 2 Year Limited Warranty
