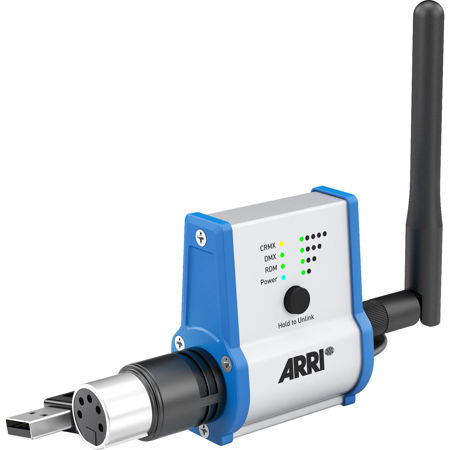

ARRI SkyLink Wireless Receiver for SkyPanel LED Softlights, Up to 1640' Range, Blue/Silver, Open Box

SKU: ARL216357OB

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the SkyLink Wireless Receiver?

The SkyLink Wireless Receiver is designed to provide a wireless solution for SkyPanel LED Softlights, allowing for wireless DMX and RDM communication with the lights.

Is the SkyLink Wireless Receiver compatible with all SkyPanel models?

Yes, the SkyLink Wireless Receiver is compatible with all SkyPanel models, including the S30, S60, and S120.

What is the range of the SkyLink Wireless Receiver?

The SkyLink Wireless Receiver has an outstanding range of up to 1640', ensuring strong and consistent communication with your fixtures.

Does the SkyLink Wireless Receiver allow for remote adjustment of settings?

Yes, the SkyLink system is fully RDM capable, allowing for two-way communication with the fixture and enabling remote adjustment of all settings on the lamp head.

What is the design of the SkyLink Wireless Receiver like?

The SkyLink Wireless Receiver boasts a unique, compact, and durable design. It is one of the smallest Wireless DMX receivers on the market and has a swivel DMX connector that can be rotated 180 degrees for optimal signal strength.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

ARRI SkyLink Specifications

  • Compatibility

    SkyPanel LED Softlights

  • Wireless Communication

    LumenRadio CRMX (DMX/RDM) Receiver

  • Range

    Up to 1640' (499.88m)

  • Frequency Range

    2404 - 2480MHz

  • Protocols

    DMX-512(A) and RDM ANSI E1.20

  • Voltage Input

    5V DC

  • Power Connection

    Male USB-A

  • Antenna Connection

    RP-SMA Female

  • Antenna Type

    2dBi RP-SMA Antenna

  • DMX Connection

    XLR 5-Pin Female with 180 deg. rotation

  • Control

    "Unlink" Button for disconnecting from CRMX network

  • Remote Device Management (RDM)

    DMX Setup and Standard RDM commands

  • Ambient Temperature Operation

    -20 to 50 deg. C (-4 to 122 deg. F)

  • Protection Class

    III

  • IP Rating

    IP20

  • Certifications

    CE
    CB
    ENEC
    cNRTLus
    FCC
    PSE

  • Dimensions

    4.0 x 1.1 x 4.4" (10.16 x 2.79 x 11.18cm)

  • Weight

    0.8kg (1.76 lbs)

About ARRI SkyLink

Discover the SkyLink Wireless Receiver, the ultimate wireless solution for your SkyPanel LED Softlights. This high-tech, compact device, developed in collaboration between Arri and Innovative Dimmers, is designed to eliminate the need for DMX cables, offering a seamless, user-friendly experience.

The SkyLink system is a two-part innovation that enables wireless DMX and RDM communication with your SkyPanels. The SkyLink Receiver and SkyLink Base Station utilize advanced LumenRadio technology for DMX/RDM communication, simplifying the process of setting up a control network.

The SkyLink Receiver is designed to plug directly into the DMX port on the back of any SkyPanel, drawing power from the USB port located just below the DMX. This compatibility ensures that the SkyLink can work with all SkyPanel models, including the S30, S60, and S120, providing a comprehensive wireless solution for the entire SkyPanel family.

The SkyLink system is fully RDM capable, allowing for two-way communication with the fixture and enabling remote adjustment of all settings on the lamp head. This feature offers total control over all aspects of your SkyPanel, making it an efficient tool for your lighting needs.

The SkyLink Wireless Receiver boasts a unique, durable design that fits perfectly within the SkyPanel family. Despite being one of the smallest Wireless DMX receivers on the market, it's specifically designed with the SkyPanel in mind. The swivel DMX connector allows for the SkyLink Receiver to be rotated 180 degrees to achieve the best signal strength, regardless of the SkyPanel's orientation.

The SkyLink system offers an outstanding range of up to 1640', ensuring strong and consistent communication with your fixtures. Whether you're working on stage with typical obstructions or in optimal conditions with direct line-of-sight, the SkyLink provides dramatically increased freedom on set while maintaining complete control over your SkyPanels. Experience the convenience and flexibility of the SkyLink Wireless Receiver for SkyPanel LED Softlights.

ARRI SkyLink Features

  • Wireless for all SkyPanels
  • Wi-Fi to Wireless DMX
  • Fully RDM capable
  • Compact and rugged design
  • Power via USB port
  • Outstanding range
  • LumenRadio wireless technology
  • Available in kits or individually

Warranty Information

This product has a limited warranty of 24 months for parts and 12 months for labor.

Product Documents

User Manual

Key Features

  • Control your SkyPanel LED softlights wirelessly with this ARRI SkyLink receiver.
  • Enjoy precise control with DMX-512(A) & RDM ANSI E1.20 protocols for lighting.
  • Experience a robust wireless range of up to 1640' for flexible studio setups.
  • This durable SkyLink receiver operates flawlessly from -4 to 122 deg. F.
  • Easy setup: Simply connect via USB-A and the 5-Pin XLR for DMX connection.
  • Trust in the ARRI SkyLink's compatibility with SkyPanel LED softlights.

What's in the box:

  • ARRI SkyLink Wireless Receiver
  • Antenna
  • ARRI 2 Year Limited Warranty
