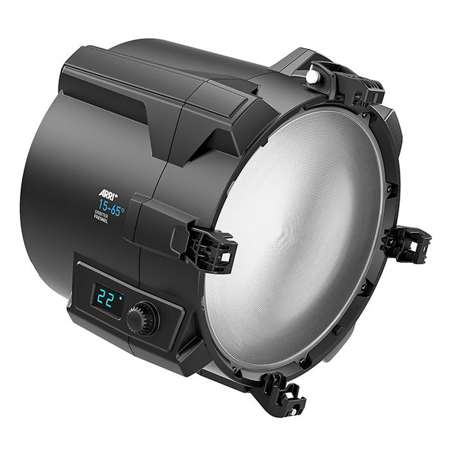

ARRI 15-65 Degree Orbiter Fresnel Lens

Exploring yet another galaxy
The Orbiter Fresnel Lens creates a precise light spot with a soft single shadow, and it delivers true Fresnel output with a real Gaussian field of light. The light output of Orbiter with the Fresnel lens is comparable to the ARRI L-Series LW and True Blue 5T2/3 with 2000 W Tungsten bulb.

The Fresnel lighting character works best with a large aperture and a wide zoom range. Despite its large aperture, the Orbiter Fresnel lens housing is compact (approx. 340 mm x 380 mm x 370 mm / 13.4 in x 15 in x 14.6 in) and lightweight (- 4.5 kg / 9.5 lbs). Its lens diameter of 285 mm / 11.2 in equals that of the True Blue ST2/3 and T5. The large zoom range of 15 to 65 Degree is fully motorized and can be precisely positioned while being controlled locally via Orbiter's Control Panel or remotely by DMX/RDM or IP based (ArtNet or sACN).

Application possibilities
Combined with Orbiter's ARRI Spectra light engine, the high-end optical system is perfectly suited for cinematic application, broadcast studios, as well as theaters or live productions. The Orbiter Fresnel lens is a great addition to the already existing Orbiter Open Face Optics 15 Degree , 30 Degree , and 60 Degree .

Orbiter Fresnel status LED display
Equipped with a display, status LED, and a high-resolution encoder, the Orbiter Fresnel lens offers information that is easily accessible. The display backlight can be adjusted, and status information and zoom angle are available via the metadata for maintenance and postproduction needs.

Mounting and accessory application
Orbiter's unique Quick Lighting Mount (QLM) system allows the Orbiter Fresnel lens to be mounted safely and quickly. ARRI accessories like the 4 and 8-leaf barndoors can be added to the new Orbiter Fresnel lens to enable a perfect cut. Physical gels can also be used in addition to the more than 300 already pre-programmed gels available for Orbiter.
