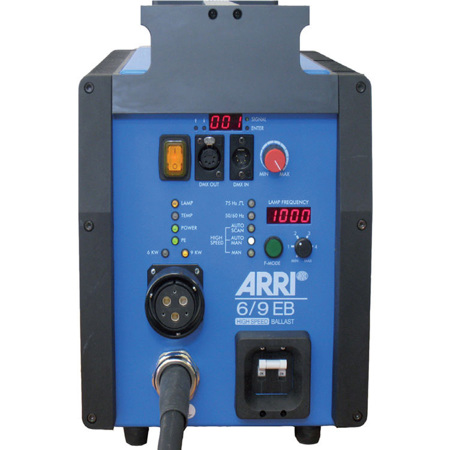

ARRI EB 6/9 High Speed Electronic Ballast with ALF, DMX and AutoScan
See all Arri items

ARRI EB 6/9 High Speed Electronic Ballast with ALF, DMX and AutoScan for 6000 and 9000W Discharge Lamps

SKU: ARL276185KH
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ARRI Electronic Ballast Specifications

  • Compatibility

    6000 and 9000W Discharge Lamps

  • Line Power

    11200 VA (maximum)

  • Supply Voltage

    180 - 250V / 50-60Hz 1, N, PE

  • Nominal Current

    56-44 A

  • Power Factor

    Cos phi 0.98 due to Active Line Filter

  • Lamphead Connector

    VEAM

  • Lamp Power

    6000W / 9000W

  • Power Adaption

    Constant control, automatic detection of lamphead and lamp type

  • Current Characteristic

    Square wave, 75Hz and 1000Hz (adjustable 900 - 1200Hz) in High Speed mode nearly square wave, 50/60Hz in "low noise" mode

  • Dimming

    50-100% of nominal lamp power

  • Starting

    Cold start and hot restrike

  • Typical Light Ripple

    Typ. <3%

  • Protective Rate

    IP 22

  • Ambient Conditions

    -20 to 50 deg. C (-4 to 122 deg. F)

  • Housing

    Blue standard housing

  • ON / OFF

    Yes

  • Protective Earth

    Yes

  • Lamp On

    Yes

  • Over Temperature

    Yes

  • Output Mode (Frequency)

    Yes

  • Remote / DMX

    Yes

  • Detected Lamp Power

    Yes

  • Automatic Lamp Recognition

    Yes

  • Automatic Lamphead Recognition

    Yes

  • Active Line Filter (ALF)

    Yes

  • Compensation for Cable Loss (CCL)

    Yes

  • AutoScan

    Yes

  • Output Type

    50Hz (low noise)
    60Hz (low noise)
    75Hz (flicker free)
    1000Hz (High speed)

  • Dimensions

    263 x 358 x 450mm (10.35 x 14.09 x 17.72")

  • Weight

    27kg (59.52lbs)

About ARRI Electronic Ballast

Arri is pleased to introduce a new generation of 1000Hz High Speed Ballasts that accept the challenge of modern digital high-speed photography with ease. With the new 1000Hz High Speed Ballasts it is easy to achieve high quality flicker free images even at frame rates of 1000 fps and in many cases beyond even with a single HMI daylight source. This new technology supplies the lamp with a greatly raised 1000Hz square wave current, allowing worriless shootings for commercials, sports, industrial applications, automotive component testing, ballistics or material testing. 1000Hz High Speed ballasts are available for all wattages from 125W to? 18000W.

ARRI Electronic Ballast Features

  • Up to 1200Hz lamp operation for frame up to 3000 fps with multiple sources
  • 75Hz for flicker free images at standard frame rates
  • 50 or 60Hz for low noise operation in environments with low noise requirements (microphones)
  • Blue standard housing with handle

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High Speed operation of 9,000W daylight lamps
  • Automatic or manual control of lamp frequency
  • Supports 50 or 60Hz (low noise)
  • Active Line Filter (ALF)
  • Compensation of Cable Losses (CCL)
  • DMX control for dimming and On/Off

What's in the box:

  • ARRI EB 6/9 High Speed Electronic Ballast
  • ARRI 1 Year Warranty
