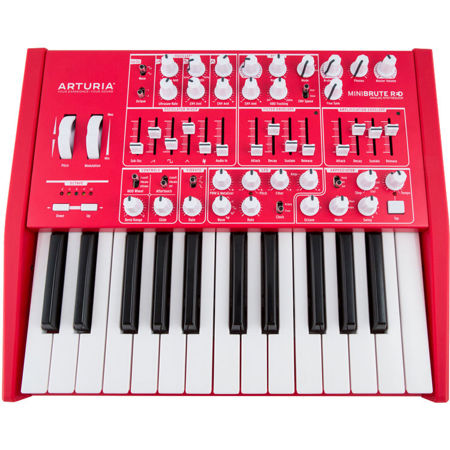

Arturia Minibrute Red Analog Synthesizer, Limited Edition

MiniBrute is a revolutionary new analog synthesizer from Arturia. Featuring a pure analog signal path and a host of unique features, it sets a new standard for what a hardware synthesizer should be
Its 100% analog audio signal path features a VCO wave mixer, the classic Steiner-Parker multimode filter and numerous analog innovations such as the Metalizer, Ultrasaw and the Brute Factor. Boasting complete MIDI, CV and USB connectivity, MiniBrute is right at home with your computer or your vintage synths, making it the ideal companion to deliver a pure analog blast anywhere you go.

• Monophonic synthesizer
• 100% Analog Audio Signal Path
• Steiner-Parker 2 pole Multimode Filter (Low Pass, Band Pass, High Pass and Notch)
• Voltage Controlled Oscillator with Sub-Osc (Square, Sine, -1 & -2 oct)
• Oscillator Mixer (Sub, Sawtooth, Square, Triangle, White Noise, Audio In)
• Signal Enhancers :
• Pulse Width Modulation
• Ultrasaw generating shimmering sawtooth waveforms
• Metalizer bringing extreme triangle harmonics
• Brute Factor delivering saturation and rich harmonics
• LFO1 with 6 waveforms (Sine, Triangle, Sawtooth, Square, Random Square, Random Sine) and bi-polar modulation destinations (to PWM & Metalize, Pitch, Filter, Amplifier)
• LFO1 clock syncable to Arpeggiator (Arpeg or free).
• LFO2 with selectable rate and 3 vibrato modes (trill up, trill down, sine)
• Two ADSR Envelope Generators with selectable slow/fast speed (from 1 millisecond to more than 10 seconds)
• Keyboard Tracking on the VCF Cutoff
• 25 note semi-weighted keyboard with aftertouch (assignable to Cutoff or Vibrato amount)
• Mod Wheel (assignable to Cutoff, Vibrato or LFO amount)
• Pitch Wheel (with selectable bend range)
• Octave selector from -2 to +2 octaves
• External Analog Audio Input
• CV Inputs: Pitch, Filter, Amp
• CV Output: Pitch (tracks the keyboard and pitch wheel)
• Gate In/Out
• Gate source selector (Audio/Hold/Keyboard)
• MIDI In/Out with 5 pin DIN connectors
• USB MIDI In/Out
• 1/4" Audio Output and 1/4" Headphone Output
• Full Function Arpeggiator: 4 modes of arpeggiation, 4 octave range control, 6 step divisions, 6 Swing positions, Hold function
• Tempo knob
• Tap tempo
• MIDI Sync
• Rugged Aluminum enclosure
• 12V DC 1A power

Bring the Noise
Designed for the analog purist, MiniBrute packs an extraordinary potential for warm and powerful sounds into a very portable design. Loaded with the legendary Steiner-Parker multimode filter, a multi-wave Oscillator and Sub Oscillator, MiniBrute excels at delivering fat bass lines, screaming leads and fascinating sonic experiments. You can process any external sound through its audio input, making this a powerhouse for adding warmth, grit and filter effects to drums, guitars and more.

Bring the Fun
In a world dominated by hardware with too few controls and endless navigation in tiny LCD screens, MiniBrute brings back the fun with a true hands-on approach to synthesis. You want it louder? Grab the volume knob and crank it up. You want it brighter? Grab the filter cutoff knob and crank it up. You want your sound to grow fangs and snarl like a beast? Grab the Brute Factor knob and CRANK. IT. UP. Itf s that easy! No factory presets, no buried menus to deal with. MiniBrute is just honest and true analog synthesis.

Authenticity & Innovation
Developed in partnership with synth guru Yves Usson, MiniBrute comes with brilliant innovations such as the Brute Factor, Metalizer, Ultrasaw and full USB, MIDI and CV connectivity for easy integration into any modern or vintage setup. MiniBrute met its match in the classic Steiner-Parker filter, specially revised by Nyle Steiner himself. Itf s arguably the best multimode filter design around, delivering analog warmth with a uniquely raw and aggressive edge.

MiniBrute sets a new standard for excellence with its truly unique sound
Small yet powerful, affordable but built like a tank, 100% analog from a company known for its digital instruments...everything about MiniBrute seems impossible. But when this synth meets your music, anything is possible.

Hands-On Heaven
Forget about tiny LCD screens, being lost in menus and sub-menus and trying to remember double functions and complex procedures. MiniBrute brings back the fun and the immediate hands-on experience of synthesis. When you want things to shake, grab the Sub Osc slider and bring it on. When you want it to sizzle, grab the filter knob and open it up. And when itf s time to unleash the beast, grab the Brute Factor knob and turn it loose! Itf s that easy.

• Oscillator/Sub
• Steiner-Parker Multimode Filter
• Brute Factor
• Oscillator Mixer
• CV Gate In/Out
• Arpeggiator
• Two LFOs
• Performance Controls
• Keyboard with Aftertouch
• Two 4 Stage Envelopes
• Audio In/Out
• MIDI In/Out
• USB In/Out

100% Analog Power
MiniBrute is a revolutionary analog synthesizer, combining the renowned savoir-faire of Arturia for designing professional musical instruments and the expertise of synth guru Yves Usson in crafting the finest analog modules.

MiniBrute was built with a simple goal in mind: offer great analog sound and a very easy-to-use interface, without ever compromising on quality
The result of fine R&D and skilled craftsmanship: a 100% Analog audio signal path, delivering huge bass lines, screaming leads, outstanding arpeggios and wild effects.

Sounds with an Attitude
So what does MiniBrute sound like? MiniBrute was designed with one thought in mind: produce amazing analog sounds. And it hits the target dead-center, serving up powerful basses, hypnotic drones, screaming leads, acid sequences, ethereal monopads, 80f s arpeggios, mind-blowing effects and fascinating sonic experiments. If youf re looking for deep funky basses, mellow leads, clavinets or woodwind-like sounds, MiniBrute can produce those too. But the beast that lurks within is always waiting for you to twist that knob...

Your Sounds, Your Attitude
MiniBrute doesnf t have presets. You yourself will build every sound you hear. That may seem strange, but take it from us: itf s fun, itf s creative and itf s an organic approach to making music. Plus itf s easier than browsing sub-menus!

Steiner-Parker Filter
MiniBrute incorporates the legendary Steiner-Parker multimode filter. Introduced for the first time in the Synthacon synthesizer back in the 70f s, this marvelous filter not only has a Low pass mode like other designs, but also Band pass, High pass and Notch positions, making it a highly-versatile and acclaimed boutique filter. The MiniBrute filter is based on the core of this legendary filter and it has been enhanced to deliver an even wider range of cutoff and resonance. Nyle Steiner himself has verified and approved these enhancements. Teamed with the MiniBrutef s multi-wave oscillator and its wide modulation capabilities, the Steiner-Parker filter adds an extremely versatile and aggressive edge that will make your sound stand out.

Oscillator On Steroids
• VCO
• Sub Osc
• Ultrasaw
• Metalizer

Brute Factor
Brute Factor was inspired by a patch made on a famous vintage synthesizer by connecting its headphone output to the external audio input. The result was a type of feedback loop thatf s ideal for raspy and grungy sounds. This technique has been adapted and implemented internally in the MiniBrute. At low Brute Factor settings the distortion is smooth and gentle, but it becomes harsher as you turn up the knob. When the level exceeds 75% of maximum the MiniBrute can go berserk and produce barely controllable, crazy feedback sounds.

Modulations Galore
Modulations are the key to widening a synthesizerf s sound palette. While many synths offer too few options and, in the end, a limited range of sounds, MiniBrute opens the door to a world of combinations that will allow you to create a unique and original sonic signature. The LFO1 waveforms include sine, triangle, sawtooth, square, random square and random sine waves. The modulation amounts are bipolar and can be routed to 4 destinations: PWM & Metalizer, Pitch, Filter and Amplifier. So you can really get creative and start modulating the Filter with a negative slope, for example, while increasing the Pitch. The LFO range is very wide (0.1 Hz to 100 Hz), allowing modulations that cover the gamut from subtle evolutions to wild FM effects.

Connect to the world
Thanks to its full MIDI/CV/USB connectivity, MiniBrute is designed to fit seamlessly in any modern or vintage studio.

• MIDI In/Out
• CV In/Out
• USB In/Out
• Audio In

Total Control
MiniBrute features a full set of 29 high-precision knobs, 14 metal sliders and 8 metal switches that offer direct control over your sound.

Keyboard Tailored to Your Needs
MiniBrute features a quality keyboard including velocity, aftertouch and 25 semi-weighted keys for a fast and accurate performance.

Continuing Analog History
The MiniBrute has roots stretching back to the 1970's, but it is definitely a child of the 21st century. It proudly stands among the MS-20s, Odysseys, Pro-Ones and MiniMgs while bringing its own personality and powerful sonic imprint to the table.
