ARRI S60-RP Specifications

  • Lamphead: Optical System

    Remote Phosphor Panel

  • Lamphead: Light Aperture

    25.39 x 11.81" / 645 x 300mm

  • Lamphead: Beam Angle

    110 deg. (Half Peak Angle)

  • Lamphead: Handling

    Steel Yoke, High Strength Tilt Lock, Pole Operation Option (Pan & Tilt)

  • Lamphead: Mounting

    28mm Spigot (Junior Pin)

  • Lamphead: Tilt Angle

    +/- 90 deg.

  • Lamphead: Lamphead Voltage Input

    48 V DC

  • Lamphead: Power Consumption

    420W Nominal, 450W Maximum

  • Lamphead: Lamphead Power Connection

    Male 3-Pin XLR - 15 amp (Pin 1: Negative / Pin 2: Positive)

  • Lamphead: Battery Connector

    Male 4-Pin XLR - 10 Amp (Pin 1: Negative / Pin 4: Positive)

  • Lamphead: Battery DC Voltage Range

    23 - 36 V DC

  • Lamphead: Battery Mode Light Output

    50% of Total Output

  • Lamphead: White Light

    Changeable Remote Phosphors Panels: 2700 K, 3200 K, 4300 K, 5600 K, 6500 K, Chroma Green

  • Lamphead: Color Temperature Tolerance

    +/- 200 K (nominal)

  • Lamphead: Color Rendition

    CRI >94

  • Lamphead: Dimming

    0 - 100% Continuous

  • Lamphead: Control

    On-Board Controller, 5-Pin DMX In and Through,
    EtherCon LAN Network Connectivity, USB-A

  • Lamphead: RDM

    DMX Setup, Hour Counter and Standard RDM Commands

  • Lamphead: USB Interface

    DMX Setup, Fixture Status and Firmware Upgrade Through PC, Mac and USB Stick

  • Lamphead: Ambient Temperature Operation

    -20 to +45 deg. C / -4 to +113 deg. F

  • Lamphead: Protection Class

    IP 20

  • Lamphead: Estimated LED Lifetime (L70)

    50000 hours

  • Lamphead: Estimated Color Shift

    Over Lifetime: < 200 K

  • Lamphead: Certifications (pending)

    CE, FCC; GS, cNRTL, CB

  • Power Supply Input Range

    90 - 250 V AC, 50 - 60Hz

  • Power Supply Output Range

    48 V DC

  • Power Input Connection

    powerCON TRUE1 (Edison Cables)

  • Power Output Connection

    Female 3-Pin XLR - 10 Amp (Pin 1: Negative / Pin 2: Positive)
    powerCON TRUE1 (mains power through)

  • Control

    On-Board On/Off Switch

  • Mounting

    Super Clamp Attachment / SkyPanel PSU Rail Mount

  • Weight

    Power Supply Unit: 11.02lbs / 5kg
    Manual Version: 26.46lbs / 12kg

11 Accessories for ARRI SkyPanel S60-RP Daylight LED Remote Phosphor Softlight, 5600 K, Manual, 3m (9.84') DC Cable, Edison powerCON, Blue/Silver

  • All Accessories (11)
  • Light Stand Accessories (6)
  • Adapters & Mounts (1)
  • Light Accessories (4)

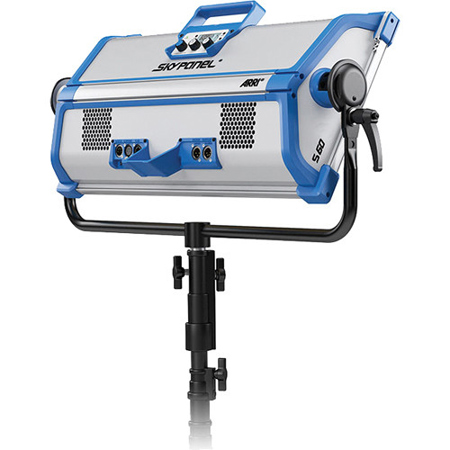

About ARRI S60-RP

SkyPanel is a compact, ultra-bright and high-quality LED soft light that sets a new standard for the industry. With a design focused on form, color, beam field and output, SkyPanel represents the culmination of more than a decade of research and development of LED technology at ARRI. SkyPanel will initially be available in two sizes: the S60 and S30. The S60 is a midrange model, featuring a light aperture of 645 x 300mm and accommodating the vast majority of applications. The S30 is a smaller, more portable version; half the length of the S60, it is perfect for on-the-go mobile applications. Both models are available in fully color tuneable and remote phosphor versions.

In addition to the fully tuneable color versions of the SkyPanel, remote phosphor versions are also available. To make white LEDs, phosphors are typically placed directly on a single blue LED. Remote phosphor technology uses many powerful blue LEDs to excite a panel coated in phosphors, which is positioned further away from the LEDs. These high-quality phosphors deliver near-perfect color rendition and outstanding light output. The remote phosphor versions of SkyPanel are roughly 10% brighter than the color versions and have a lower price point due to less complex electronics. Different color temperature panels are available, including 2,700 K; 3,200 K; 4,300 K; 5,600 K; and 6,500 K.

Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. Brighter than a 2 kW tungsten soft light or a 6 kW tungsten space light, the SkyPanel S60 has more than enough light for most applications. At the same time, the lamphead is able to perform beautifully at lower light levels. This range of illumination and color gives users an unprecedented amount of control. Made in Germany to the high standards for which all ARRI products are known, SkyPanel is built to last constructed from resilient materials and assembled by hand with great care. Other features include an on-board battery input for mobile applications, LAN port for network connectivity, USB-A port for firmware updates via thumb drive and many more.
