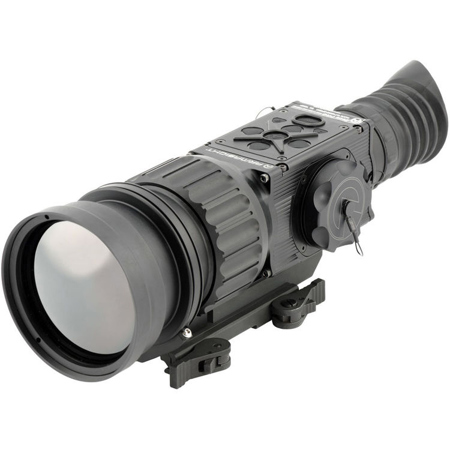

The Zeus Pro family of Thermal Weapon Sights showcases the best and latest advancements developed by Armasight in the field of uncooled thermal imaging technology for the dismounted soldier, special law enforcement team member and professional hunter. The Zeus Pro epitomizes Armasight's 20/50 design gold standard, which is defined from product inception as being capable of withstanding 20 meters immersion for 2 hours and engineered for routine use with 0.50 BMG weapon shock and recoil. Based around common core electronics, signal processing and eyepiece optics with generous eye-relief, the Zeus Pro Series Thermal Weapon Sight is available in a variety of options and price points that cater to every application - military and commercial.
• 24/7 Operation in presence of environmental obscurants (smoke, dust, haze, fog)
• Superior engineering and design from inception to Armasight's 20/50 standard
• Rugged MIL-STD-810 compliant performance
• Operates on 123A or AA batteries
• Reliable quick-release locking weapon mount
• Objective Germanium Lens Options
• TAU-2 17 micrometer Pitch Thermal Sensor
• SVGA 800x600 OLED Display
• Long eye-relief eyepiece lens
• Digital Inclinometer
• Battery Status Indicator
• Multiple User Selectable Ballistic and Quick Acquisition Reticles
• Selectable Reticle Color
• Selectable Palettes: White Hot/ Black Hot/ Sepia/ OEM Custom/ Other Color Variants
• Imaging Filter Algorithms: - Active Contrast Enhancement (ACE)- Second Generation Digital Detail Enhancement (DDE)- Smart Scene Optimization (SSO)- Information Based Histogram Equalization (IBHEQ)- Linear Automatic Gain Control (Linear AGC)- Silent Shutterless Non-uniformity Correction (SSN)
• Wireless 5-button Remote
• Tracking Digital e-Zoom: 2x / 4x / 8x (640x512 only)
• Still Picture and Video Recording Capability (Mounted DVR Option)
• Made in the USA
Utilizing the latest FLIR TAU-2 Technology, the Zeus Pro is offered in 336x256 or 640x512 pixel formats. These options are further enhanced by professional military grade 30mm, 50mm, 100mm Germanium (Ge) objective lenses creating a wide variety of optical magnifications and range performance capabilities that the customer can select from. Armasight has introduced a unique dual battery option for the Zeus Pro Thermal Weapon Sight consisting either of four 3.0VDC 123A batteries all oriented in the same direction to prevent confusion in replacement or four 1.5VDC AA batteries pre-loaded in a cartridge. In a pinch, a single 123A 3.0VDC battery can power the Zeus Pro for just over one hour.
The Zeus Pro Thermal Weapon Sight is characterized by its simple and intuitive controls, functions and features that are layered among direct button adjustments, direct combination button functions and electronic menu selections. In an effort to better support the art of shooting, Armasight has included ballistic drop reticles, electronic compass and inclinometer in the Zeus Pro package for finer range estimation and target orientation. The Zeus Pro uses a 9-pin multi-pin connector to provide video in imagery, where there may be a need for map or rangefinder display overlays and external power access. In support of these capabilities, Armasight offers an optional laser range finder, external battery pack, multispectral laser and other accessories designed to attach on the MIL-STD-1913 rail of the Zeus Pro. Solid state technology reticle adjustments and software algorithms, combined with a complementary color reticle platform, ensures maximum reticle contrast, high level target accuracy and boresight retention. This level of accuracy is translated into the tracking electronic zoom (e-zoom) function of the Zeus Pro thermal imaging weapon sights, which can be progressively increased from 1x to 2x to 4x and 8x without changing the point-of aim to point of-impact relationship of the targeting reticle.
A five-button wireless remote switch is included to operate and modify the settings on the Zeus Pro to optimize the imagery for the viewed scene without having to remove your hands from the weapon. The Zeus Pro has Bluetooth wireless capability and can directly interface with most smart phones with the potential for engaging a series of current and future applications.
The Zeus Pro Thermal Weapon Sight represents the most versatile and sophisticated Armasight product available in today's market for hunters, SWAT teams and military personnel, based on its superior price-to-performance value.
Special User-Adjustable Imaging Tools
Active Contrast Enhancement (ACE)
A digital "Contrast" correction that allows for a smart scene optimization based on dynamic adjustments where a variety of contrast levels occur depending on relative scene temperature.
Second Generation Digital Detail Enhancement (DDE)
A "Sharpness" correction that digitally enhances the picture to present clearer imagery, significantly improves edge sharpening and further reduces image noise.
Smart Scene Optimization (SSO)
A fine-tuning computational correction that significantly improves an overall visual acuity for targets that have thermal signatures similar to a surrounding background.
Information-Based Histogram Equalization (IBHEQ)
A "Sky/Sea" enhancement - information based environment dependent algorithm that automatically adjusts camera gain and excludes pixels determined to not contain critical information, specifically helpful in scenes with lots of sky or water.
Linear Automatic Gain Control (Linear AGC)
A correction used to automatically adjust the gain to an appropriate range, the weaker the image signal, the stronger the gain.
User-Controlled Manual Non-Uniformity Correction/Flat-Field Correction (UCMNUC/FFC)
There is a mechanical shutter between the camera sensor and the lens. This shutter is used to perform a non-uniformity correction (NUC) also known as flat-field correction (FFC). During FFC, the shutter presents a uniform temperature source to each detector element in the array. While imaging the flat-field source, the camera updates the offset correction coefficients, resulting in a more uniform image after the process is complete. All Zeus models allow for user to manually trigger or interrupt scheduled UCMNUC/FFC function.
Silent Shutterless NUC (SSN)
In addition to user controlled manual NUC/FFC all Zeus models employ a digital supplemental non-mechanical flat-field correction that allows to extend the periods between mechanical shutter events and to further reduce image noise. SSN is an always ON enhancement.
Maximize Your Armasight Pro Series Thermal Imager Experience with their New Enhanced Mobile Applications!
Armasight proudly unveils its new handheld mobile device applications for Android and iOS that significantly enhance the user experience of Armasight's -PRO series thermal imagers. These FREE applications allow hunters and others to pinpoint their position, their direction of aim and the geocoordinates (Geotagging) of the target when using Armasight's optional clip-on rangefinder using both terrain map or satellite map features on their respective mobile devices. Other key data displayed include shot counter for their latest imagers, battery status, compass, elevation and default range.
Additionally, these applications permit a user to select a tab for -PRO Series system level remote operations to change all functions normally reserved for the wireless remote via your cell phone in a very simple and intuitive graphic presentation. For Android users there is also the added benefit of importing Kestrel 4500 series weather station data directly to the mobile device. Access to these applications is easy and FREE through Google Play and the Apple Store. Download your copy today and start immediately enjoying the added benefits of Armasight's continued cutting edge development.
• Both iOS and Android applications will work with all Pro Series of scopes purchased after November 15th, 2015. Older Pro scopes may have full, partial or no functionality with Apps
• Geotagging/Coordinates (displayed on mobile device and in FOV of the scope)
• Target Direction/Orientation on the Map
• Battery Capacity Indication
• Shot Counter
• Elevation
• Digital Compass
• Target Range (requires optional LRF)
• Target Coordinates (requires optional LRF)
• Fully functional remote control shadowing all the functions of 5-button scope control:
• Reticle pattern and color selection
• One shot Zeroing
• Color Pallets Selection
• E-Zoom
• Screen Brightness
• Instant Manual NUC calibration
• Rifle Profile Selection
• Other drop-down menu functions
• Additional data available for Android application only and in conjunction with Kestrel 4500 series weather stations with Bluetooth:
• Wind Direction (displayed on mobile device and in FOV of the scope)
• Wind Speed (displayed on mobile device and in FOV of the scope)
• Crosswind
• Headwind
• Ambient Temperature
• Barometric Pressure
• Humidity
• Other weather station data
