Ashly ne4250.70pe 4-Channel Power Amplifier with Protea DSP and OPDante Card
Ashly ne4250.70pe: Picture 1 thumbnail
Ashly ne4250.70pe: Picture 2 thumbnail
See all Ashly items
20% Off

Ashly ne4250.70pe 4-Channel Network Enabled Power Amplifier with Protea DSP and OPDante Option Card

SKU: AS425070PED MFR: NE4250.70PED
Be the first to review this itemAsk a Question
$3,179.00
$3,974.00
Save: $795 (20%)
OR
$265/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Ashly 4-channel power amplifier.
  • Optimize audio with the integrated Protea DSP, offering precise signal processing.
  • Enjoy flexible connectivity with the optional Dante card for networked audio.
  • Deliver reliable performance for installed sound systems in any commercial space.
  • Simplify setup with intuitive controls and remote options for easy operation.
  • This network enabled amplifier provides ample power output for robust audio performance.
See More Product Details
Special Order?Estimated to Ship: 09/16/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Ashly ne4250.70pe Specifications

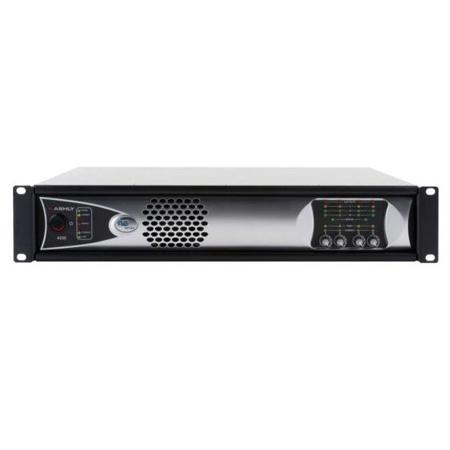

Front Panel

Front Panel

Jump to...

  • Controls

    Individual input attenuators, AC Power Switch

  • Cooling

    Temp dependent speed-controlled fan (Side-in, Front-out)

LED Indicators

Jump to...

  • Unit Status

    Power: Switch: On, Off (Blue)
    Standby: Standby, flashing (Yellow)
    Protect: On, Off (Red)
    Disable: On, Off (Yellow)
    COM: On, for Ethernet data or Device ID (Green)

  • Each Channel

    Signal level: Clip (Red); -6dB (Yellow) and -18dB, -12dB (Green)
    Bridge: Per Channel Pair (Green)
    Temp: Per Channel (Yellow)
    Current: Per Channel: Proportional to output (Green)

Channels

Jump to...

  • Channels

    4

Power

Jump to...

  • Power Output

    8 Ohm: 150W
    4 Ohms: 250W
    (Continuous Average Power Output: Per Channel, Low Z Models, Stereo Mode, All Channels Driven)

    8 Ohm: 500W (Low Z Output: Bridge Mode, All Channels Driven)

  • Distributed

    70V (Per Channel): 250W

Line Current Draw

Jump to...

  • Standby Mode

    190mA

  • Idle (no signal)

    540mA

  • Typical

    2.85A (1/8 Power Pink Noise)

  • Maximum

    6A (1/3 Power Pink Noise)

Thermal Dissipation

Jump to...

  • Standby Mode

    46.7 BTU/hr (All Channels Driven)

  • Idle (no signal)

    123 BTU/hr (All Channels Driven)

  • Typical

    341 BTU/hr (1/8 power pink noise, All Channels Driven)

  • Maximum

    378 BTU/hr(1/3 power pink noise, All Channels Driven)

General

Jump to...

  • Frequency Response

    20Hz-20kHz, (unweighted) +/-1dB

  • Input Impedance

    20k Ohms, Balanced

  • Voltage Gain

    32dB

  • Input Sensitivity

    7.2dBu

  • Maximum Input Level

    +21dBu

  • Software Controlled Internal HPF

    80Hz (12dB/oct), 400Hz (6dB oct), OFF (25V, 70V, 100V models)

  • Signal to Noise

    >107dB (20-20k, Unweighted)

  • Distortion (8 Ohm load)

    <0.5% (SMPTE, typical)
    <0.5% (THD-N, typical, 20Hz-20kHz)

  • Damping Factor

    >250 (8 Ohms, 1kHz)

  • Output Circuitry

    Class D

  • Amplifier/Load Protection

    Output Overcurrent, Main Supply Rail Overvoltage, Chassis Temperature, Inrush Limiting, Mains Fuse

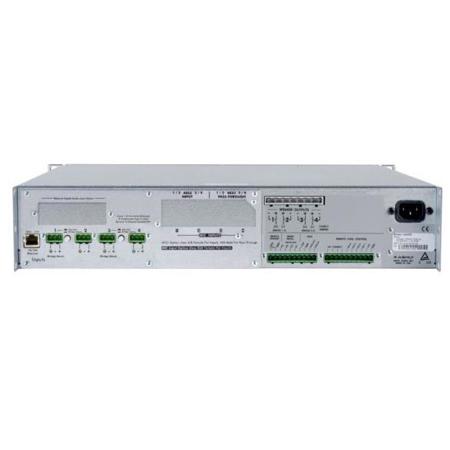

Rear Panel

Jump to...

  • Controls

    Ethernet, Channel bridge switch (Low-Z only), Remote Standby, Preset Recall (4), Remote Level (8), Remote Data

  • Connectors (each channel)

    Input: Euroblock
    Output: Euroblock

Power Requirement

Jump to...

  • AC Mains

    120VAC or 240VAC +/-10% (factory set), 50-60Hz

  • Power Cable Connector

    15A Edison, 3-Prong IEC

Airflow

Jump to...

  • Airflow

    IN through sides, OUT through front

Environmental

Jump to...

  • Environmental

    40 to 120 degree F (4 to 49 degree C) noncondensing

Certificates

Jump to...

  • Safety/Compliance

    TUV, CE, FCC, RoHS

DSP: Input Source Selection

Jump to...

  • Input Source Selection Options

    Analog, Auto (Net, AES3, Analog)

DSP: Brick Wall Limiter

Jump to...

  • Threshold

    -20dBu to +20dBu

  • Ratio

    infinity

  • Attack

    0.2ms/dB to 50 ms/dB

  • Release

    5ms/dB to 1000ms/dB

DSP: Compressor

Jump to...

  • Threshold

    -20dBu to +20dBu

  • Ratio

    1.2:1 to infinity

  • Attack

    0.2 to 50ms

  • Release

    5ms/dB to 1000ms/dB

  • Detector

    Peak/Average

  • Attenuation Bus

    2 available

  • Metering

    In, Out, Attenuation, Graphical

DSP: Autoleveler Controls

Jump to...

  • Target Level

    -40dBu to +20dBu

  • Action

    Gentle, normal, aggressive, user-defined

  • Maximum Gain

    0dB to +22dB

  • Metering

    Input Level, Gain, Attenuation

  • Ratio

    1.2:1 to 10:1

  • Threshold Below Target

    -30dB to 0dB

  • Gain Increase/Decrease Rate

    5ms/dB to 1000ms/dB

  • Hold Time

    0-6 sec

DSP: Ducking

Jump to...

  • Trigger Threshold

    -80dBu to +20 dBu

  • Ducking Release

    5ms/dB to 1000ms/dB

  • Ducking Depth

    0dB to -30dB, infinity

  • Enable Ducking at Matrix Mixer

    Yes

  • Metering

    Input

DSP: Gate

Jump to...

  • Threshold

    -80dBu to +20dBu

  • Range

    off, 100dB to 0dB

  • Attack

    0.2ms/dB to 50 ms/dB

  • Release

    5ms/dB to 1000ms/dB

  • Metering

    Key Signal, Gate LED, Graphical

DSP: Advanced Gate Controls

Jump to...

  • Key Engage Enable

    Yes

  • Key Frequency

    20Hz to 20kHz

  • Key Bandwidth

    0.016 to 3.995 Octave

DSP: Gain

Jump to...

  • Gain (with/without VCA)

    -50dB to +12dB, off, polarity invert

  • Digital VCA Groups

    4 available

  • Remote RD8C Gain

    Enable per channel, 0dB to infinity

  • WR-5 (neWR-5) Remote Gain

    0 to -50dB, Mute

DSP: EQ (FIR Filter)

Jump to...

  • File Type

    .csv, .fir (Output only, 48kHz only, 2-384 Taps)

DSP: EQ (31-Band)

Jump to...

  • Filter Type

    Constant Q or Proportional

  • Bandwidth

    0.499oct to 0.25oct

DSP: EQ (Parametric 2,4,6, or 10 Band)

Jump to...

  • Frequency

    20-20kHz

  • Level

    -30dB to +15dB

  • Q Value

    0.016 to 3.995 Octave

DSP: EQ (Hi/Low Shelf 6/12 dB/oct)

Jump to...

  • Frequency

    20Hz-20kHz

  • Level

    -15dB to +15dB

DSP: EQ (All Pass)

Jump to...

  • Frequency

    20Hz-20kHz

DSP: EQ (Variable Q HP/LP)

Jump to...

  • Frequency

    20Hz-20kHz

  • Q Value

    3.047 to 0.267

DSP: EQ (Notch/Bandpass)

Jump to...

  • Frequency

    20Hz-20kHz

  • Q Value

    92.436 to 0.267

DSP: Crossover (2 /3/4 Way Crossover)

Jump to...

  • Bessel & Butterworth Filters

    12/18/24/48 dB/oct

  • Linkwitz-Riley Filter

    12/24/48 dB/oct

  • Frequency

    Off, 20Hz-20KHz

DSP: Delay (@ 48kHz Sampling Rate)

Jump to...

  • Speaker Delay

    0-21ms

  • Delay

    0-682ms

DSP: Delay (@ 96kHz Sampling Rate)

Jump to...

  • Speaker Delay

    0-10.6ms

  • Delay

    0-341ms

DSP: Audio Metering Tool

Jump to...

  • Range

    -60dBu to +20dBu

  • Increments

    1dB

  • Peak Hold Indicator

    Yes

DSP: Signal Generator Tool

Jump to...

  • Signal Level

    Off, -50dBu to +20dBu

  • Sine Wave Frequency

    20Hz-12kHz

DSP: Matrix Mixer

Jump to...

  • Gain (0.5dB increments)

    Off, -50dB to +12dB

  • Mute

    Per channel

  • Enable Ducking at Mixer

    Yes

DSP: Processors

Jump to...

  • Input A/D, Output D/A

    24 bit

  • DSP Processors

    32-bit floating point

  • Sample Rates

    48kHz, 96kHz

  • Propagation Delay @ 48kHz

    1.42ms

  • Propagation Delay @ 96kHz

    0.71ms

Physical

Jump to...

  • Dimensions (W x H x D)

    19 x 3.50 x 16.84" (483 x 89 x 428mm)

  • Weight

    23 lb (10.4kg)

About Ashly ne4250.70pe

With the ne4250.70pe 4-Channel Network Enabled Power Amplifier with Protea DSP and OPDante Option Card, experience the power of advanced audio technology. This high-quality, durable amplifier is designed around an energy-efficient Class-D platform with a switching power supply, offering a powerful and efficient solution for your audio needs.

This advanced amplifier simplifies the connection and control process for networked systems, using standard 10/100 Ethernet protocol and Protea ne Software. No additional outboard control units are required, making it an ideal choice for both home and professional audio systems.

The ne4250.70pe model delivers a minimum power of 250 Watts RMS per channel into 70V loads with all channels operating. In bridged-mono mode, channels 1+2 or 3+4 deliver at least 500 Watts RMS into a 140V load. This powerful amplifier features Euroblock input and output connectors, balanced analog inputs, and remote standby for power up, DC remote level control, and contact closure preset recall.

With Ethernet control and monitoring, you can easily manage power functions, level, mute, polarity, temperature, current, and amplifier fault conditions. The amplifier boasts a frequency response of 20Hz to 20kHz +/-1.0dB, and a Signal-to-Noise ratio greater than 105dB unweighted. SMPTE intermodulation distortion is less than 0.5% into an 8 Ohm load, 10dB below rated output, ensuring high-quality sound.

The ne4250.70pe amplifier comes with an internal factory-installed digital signal processing (DSP) option controlled using Protea (network enabled) software. Each amplifier input channel can be configured with pluggable DSP blocks to have its own dynamics control, gain functions, graphic and/or parametric EQ, Hi-pass/Lo-pass filters, time delay, metering, and test signal generator. A mixer section with assignable routing allows any input to drive any or all amplifier outputs.

This amplifier is also capable of having factory-installed AES3, CobraNet, or Dante interface options. It fits perfectly in a standard 19-inch rack using two spaces and weighs 23 pounds or less. With Protea Digital Signal Processing for NE Multi-Channel, compatible with Microsoft Windows 8, 7 (Vista/XP) 32 & 64 bit systems, audio professionals find our Protea DSP to be very intuitive and easy to navigate. Experience the difference with the ne4250.70pe 4-Channel Network Enabled Power Amplifier with Protea DSP and OPDante Option Card.

Ashly ne4250.70pe Features

  • 10/100 Ethernet comes standard for remote control and monitoring
  • FIR Filter capable (with DSP)
  • DC voltage remote gain control
  • Switched-mode power supply, Class-D output
  • Stepped, calibrated input attenuators
  • Remote power standby
  • Disable all front panel controls via software
  • Temperature sensitive variable speed fan with side-to-front airflow
  • Selectable HPF frequencies (80Hz, 400Hz, off) on 25V, 70V, and 100V models
  • 4-stage level meters
  • Output current and temp indicators
  • Safety/Compliance: TUV, CE, FCC, RoHS

Warranty Information

This product has a limited warranty of 60 months for parts and 60 months for labor.
