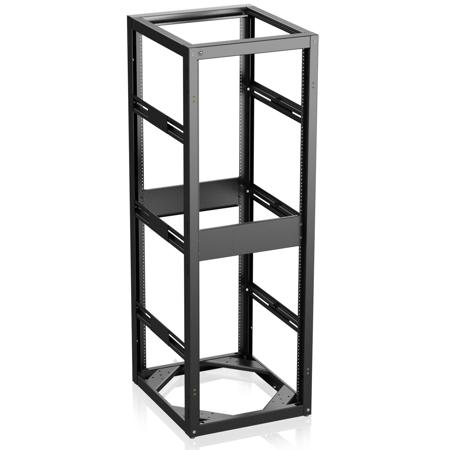

Atlas Sound 735-25 19" Wide Opening Stand Alone/Gangable Deep Floor Rack Cabinet with Adjustable Rails, 25" Depth, 35RU

For both single and multi-bay configurations requiring enhanced weight capacity and extended depths, the AtlasIED 735-25 offers a robust solution. This stand-alone/gangable deep floor rack cabinet is crafted with a 14-gauge frame construction, ensuring sturdy and reliable support for your electronic equipment.

Measuring 22 1/2" in width and 25" in depth, the 735-25 provides 35 vertical panel spaces, offering ample room for servers, routers, switches, and other networking devices. The multi-formed and welded frame members contribute to superior strength and load-bearing capability, making it an ideal choice for data centers, server rooms, or any environment where high-quality organization and storage solutions are needed.

The base of the 735-25 is constructed with double-formed front and rear sections, MIG welded and reinforced with 11-gauge CRS corner caster gussets. The vertical columns interlock with the frame top and base, adding double material thickness for enhanced load-bearing capability.

The mounting rail channel support members are multi-formed and MIG welded, providing superior interlocking support. The panel mounting rails are fully adjustable from front to rear, offering flexibility in equipment arrangement. The base includes four 3/8"-16 threaded sockets to accept leg levelers and four 11-gauge CRS corner gussets, punched to accept casters.

The 735-25 also features provisions for permanent floor securing, ensuring stability and safety. The rack rails are precision tapped 10-32 and recessed 1 3/16" (30mm), and include convenient RU indicator hash marks to aid in equipment alignment. These plated rails adhere to the standard E.I.A. 5/8"-5/8"-1/2" spacing.

This cabinet boasts a professional look with a solid, secure design, devoid of punched vents. This allows for a precise thermal air-flow design, free from the risk of contaminants or damaging objects entering through vents.

With the addition of the optional Seismic Bracket, SBK-700, the 700 Series Racks can meet the Telcordia NEBS (Network Equipment Building Systems) GR-63-CORE standard. When properly installed, the 700 Series can withstand the rigorous real-world dynamic test, enduring up to a zone 4 earthquake, comparable to a Richter magnitude 8.0.

In summary, the AtlasIED 735-25 deep floor rack cabinet offers a versatile, durable, and reliable solution for organizing and storing your electronic equipment.
