Ashly ne8250.25pe 8-Channel Power Amplifier with Protea DSP and OPDante Card
Ashly ne8250.25pe: Picture 1 thumbnail
Ashly ne8250.25pe: Picture 2 thumbnail
See all Ashly items
20% Off

Ashly ne8250.25pe 8-Channel Network Enabled Power Amplifier with Protea DSP and OPDante Option Card

SKU: AS825025PED MFR: NE8250.25PED
Be the first to review this itemAsk a Question
$4,899.00
$6,099.00
Save: $1200 (20%)
OR
$409/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience pristine audio with this 8-channel professional power amplifier.
  • Optimize sound with Protea DSP: precision audio control for any installed speaker.
  • Network-enabled for remote control; adjust settings easily via Ethernet connection.
  • Reliable Ashly amplifier delivering 250W at 4 Ohms for robust sound reinforcement.
  • Perfect for distributed audio systems; supports 25V speaker configurations.
  • Ensure consistent performance; integrated limiter protects your professional speakers.
See More Product Details
Special Order?Estimated to Ship: 08/24/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Ashly ne8250.25pe Specifications

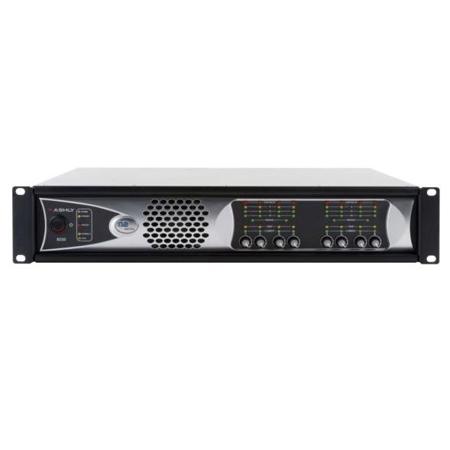

Front Panel

Front Panel

Jump to...

  • Controls

    Individual input attenuators, AC Power Switch

  • Cooling

    Temp dependent speed-controlled fan (Side-in, Front-out)

LED Indicators

Jump to...

  • Unit Status

    Power: Switch: On, Off (Blue)
    Standby: Standby, flashing (Yellow)
    Protect: On, Off (Red)
    Disable: On, Off (Yellow)
    COM: On, for Ethernet data or Device ID (Green)

  • Each Channel

    Signal level: Clip (Red); -6dB (Yellow) and -18dB, -12dB (Green)
    Bridge: Per Channel Pair (Green)
    Temp: Per Channel (Yellow)
    Current: Per Channel: Proportional to output (Green)

Channels

Jump to...

  • Channels

    8

Power

Jump to...

  • Power Output

    8 Ohm: 150W
    4 Ohms: 250W
    (Continuous Average Power Output: Per Channel, Low Z Models, Stereo Mode, All Channels Driven)

    8 Ohm: 500W (Low Z Output: Bridge Mode, All Channels Driven)

  • Distributed

    25V (Per Channel): 250W

Line Current Draw

Jump to...

  • Standby Mode

    290mA

  • Idle (no signal)

    565mA

  • Typical

    5A (1/8 Power Pink Noise)

  • Maximum

    11A (1/3 Power Pink Noise)

Thermal Dissipation

Jump to...

  • Standby Mode

    63.8 BTU/hr (All Channels Driven)

  • Idle (no signal)

    187 BTU/hr (All Channels Driven)

  • Typical

    700 BTU/hr (1/8 power pink noise, All Channels Driven)

  • Maximum

    775 BTU/hr(1/3 power pink noise, All Channels Driven)

General

Jump to...

  • Frequency Response

    20Hz-20kHz, (unweighted) +/-1dB

  • Input Impedance

    20k Ohms, Balanced

  • Voltage Gain

    26dB

  • Input Sensitivity

    4.2dBu

  • Maximum Input Level

    +21dBu

  • Software Controlled Internal HPF

    80Hz (12dB/oct), 400Hz (6dB oct), OFF (25V, 70V, 100V models)

  • Signal to Noise

    >107dB (20-20k, Unweighted)

  • Distortion (8 Ohm load)

    <0.5% (SMPTE, typical)
    <0.5% (THD-N, typical, 20Hz-20kHz)

  • Damping Factor

    >250 (8 Ohms, 1kHz)

  • Output Circuitry

    Class D

  • Amplifier/Load Protection

    Output Overcurrent, Main Supply Rail Overvoltage, Chassis Temperature, Inrush Limiting, Mains Fuse

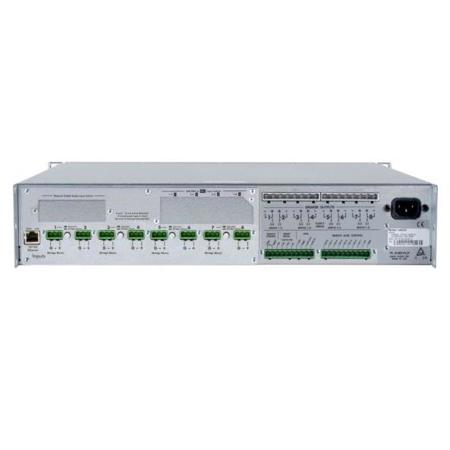

Rear Panel

Jump to...

  • Controls

    Ethernet, Channel bridge switch (Low-Z only), Remote Standby, Preset Recall (4), Remote Level (8), Remote Data

  • Connectors (each channel)

    Input: Euroblock
    Output: Euroblock

Power Requirement

Jump to...

  • AC Mains

    120VAC or 240VAC +/-10% (factory set), 50-60Hz

  • Power Cable Connector

    15A Edison, 3-Prong IEC

Airflow

Jump to...

  • Airflow

    IN through sides, OUT through front

Environmental

Jump to...

  • Environmental

    40 to 120 degree F (4 to 49 degree C) noncondensing

Certificates

Jump to...

  • Safety/Compliance

    TUV, CE, FCC, RoHS

DSP: Input Source Selection

Jump to...

  • Input Source Selection Options

    Analog, Auto (Net, AES3, Analog)

DSP: Brick Wall Limiter

Jump to...

  • Threshold

    -20dBu to +20dBu

  • Ratio

    infinity

  • Attack

    0.2ms/dB to 50 ms/dB

  • Release

    5ms/dB to 1000ms/dB

DSP: Compressor

Jump to...

  • Threshold

    -20dBu to +20dBu

  • Ratio

    1.2:1 to infinity

  • Attack

    0.2 to 50ms

  • Release

    5ms/dB to 1000ms/dB

  • Detector

    Peak/Average

  • Attenuation Bus

    2 available

  • Metering

    In, Out, Attenuation, Graphical

DSP: Autoleveler Controls

Jump to...

  • Target Level

    -40dBu to +20dBu

  • Action

    Gentle, normal, aggressive, user-defined

  • Maximum Gain

    0dB to +22dB

  • Metering

    Input Level, Gain, Attenuation

  • Ratio

    1.2:1 to 10:1

  • Threshold Below Target

    -30dB to 0dB

  • Gain Increase/Decrease Rate

    5ms/dB to 1000ms/dB

  • Hold Time

    0-6 sec

DSP: Ducking

Jump to...

  • Trigger Threshold

    -80dBu to +20 dBu

  • Ducking Release

    5ms/dB to 1000ms/dB

  • Ducking Depth

    0dB to -30dB, infinity

  • Enable Ducking at Matrix Mixer

    Yes

  • Metering

    Input

DSP: Gate

Jump to...

  • Threshold

    -80dBu to +20dBu

  • Range

    off, 100dB to 0dB

  • Attack

    0.2ms/dB to 50 ms/dB

  • Release

    5ms/dB to 1000ms/dB

  • Metering

    Key Signal, Gate LED, Graphical

DSP: Advanced Gate Controls

Jump to...

  • Key Engage Enable

    Yes

  • Key Frequency

    20Hz to 20kHz

  • Key Bandwidth

    0.016 to 3.995 Octave

DSP: Gain

Jump to...

  • Gain (with/without VCA)

    -50dB to +12dB, off, polarity invert

  • Digital VCA Groups

    4 available

  • Remote RD8C Gain

    Enable per channel, 0dB to infinity

  • WR-5 (neWR-5) Remote Gain

    0 to -50dB, Mute

DSP: EQ (FIR Filter)

Jump to...

  • File Type

    .csv, .fir (Output only, 48kHz only, 2-384 Taps)

DSP: EQ (31-Band)

Jump to...

  • Filter Type

    Constant Q or Proportional

  • Bandwidth

    0.499oct to 0.25oct

DSP: EQ (Parametric 2,4,6, or 10 Band)

Jump to...

  • Frequency

    20-20kHz

  • Level

    -30dB to +15dB

  • Q Value

    0.016 to 3.995 Octave

DSP: EQ (Hi/Low Shelf 6/12 dB/oct)

Jump to...

  • Frequency

    20Hz-20kHz

  • Level

    -15dB to +15dB

DSP: EQ (All Pass)

Jump to...

  • Frequency

    20Hz-20kHz

DSP: EQ (Variable Q HP/LP)

Jump to...

  • Frequency

    20Hz-20kHz

  • Q Value

    3.047 to 0.267

DSP: EQ (Notch/Bandpass)

Jump to...

  • Frequency

    20Hz-20kHz

  • Q Value

    92.436 to 0.267

DSP: Crossover (2 /3/4 Way Crossover)

Jump to...

  • Bessel & Butterworth Filters

    12/18/24/48 dB/oct

  • Linkwitz-Riley Filter

    12/24/48 dB/oct

  • Frequency

    Off, 20Hz-20KHz

DSP: Delay (@ 48kHz Sampling Rate)

Jump to...

  • Speaker Delay

    0-21ms

  • Delay

    0-682ms

DSP: Delay (@ 96kHz Sampling Rate)

Jump to...

  • Speaker Delay

    0-10.6ms

  • Delay

    0-341ms

DSP: Audio Metering Tool

Jump to...

  • Range

    -60dBu to +20dBu

  • Increments

    1dB

  • Peak Hold Indicator

    Yes

DSP: Signal Generator Tool

Jump to...

  • Signal Level

    Off, -50dBu to +20dBu

  • Sine Wave Frequency

    20Hz-12kHz

DSP: Matrix Mixer

Jump to...

  • Gain (0.5dB increments)

    Off, -50dB to +12dB

  • Mute

    Per channel

  • Enable Ducking at Mixer

    Yes

DSP: Processors

Jump to...

  • Input A/D, Output D/A

    24 bit

  • DSP Processors

    32-bit floating point

  • Sample Rates

    48kHz, 96kHz

  • Propagation Delay @ 48kHz

    1.42ms

  • Propagation Delay @ 96kHz

    0.71ms

Physical

Jump to...

  • Dimensions (W x H x D)

    19 x 3.50 x 16.84" (483 x 89 x 428mm)

  • Weight

    23 lb (10.4kg)

About Ashly ne8250.25pe

Become a part of the revolution in audio technology with the ne8250.25pe 8-Channel Network Enabled Power Amplifier with Protea DSP and OPDante Option Card. This innovative product is part of our NE Series of Multi-Channel, Network-Enabled Power Amplifiers, designed with an energy-efficient Class-D platform and a switching power supply for optimal performance.

The ne8250.25pe amplifier simplifies the process of connecting and controlling a networked system. It offers unparalleled ease of use, setup, and control using the standard 10/100 Ethernet protocol and Protea ne Software. There's no need for any special outboard control units, making this a seamless addition to your audio setup.

This amplifier is available in two distinct packages - the ne4250, a 4-channel model, and the ne8250, an 8-channel model. Both are rated at a powerful 250W per channel and come in separate Hi-Z and Low-Z models to suit your specific needs.

The ne8250.25pe stands out with its on-board Protea DSP Processor. This feature allows the amplifier to be customized for any installation, with the option to add AES3 inputs, mic pre inputs, CobraNet, or Dante modules.

The Protea Digital Signal Processing for NE Multi-Channel is compatible with Microsoft Windows 8, 7 (Vista/XP) 32 & 64 bit systems. This user-friendly DSP is favored by audio professionals for its intuitive navigation and ease of use.

Experience the future of audio technology with the ne8250.25pe 8-Channel Network Enabled Power Amplifier with Protea DSP and OPDante Option Card.

Ashly ne8250.25pe Features

  • 10/100 Ethernet comes standard for remote control and monitoring
  • FIR Filter capable (with DSP)
  • DC voltage remote gain control
  • Switched-mode power supply, Class-D output
  • Stepped, calibrated input attenuators
  • Remote power standby
  • Disable all front panel controls via software
  • Temperature sensitive variable speed fan with side-to-front airflow
  • Selectable HPF frequencies (80Hz, 400Hz, off) on 25V, 70V, and 100V models
  • 4-stage level meters
  • Output current and temp indicators
  • Safety/Compliance: TUV, CE, FCC, RoHS

Warranty Information

This product has a limited warranty of 60 months for parts and 60 months for labor.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience pristine audio with this 8-channel professional power amplifier.
  • Optimize sound with Protea DSP: precision audio control for any installed speaker.
  • Network-enabled for remote control; adjust settings easily via Ethernet connection.
  • Reliable Ashly amplifier delivering 250W at 4 Ohms for robust sound reinforcement.
  • Perfect for distributed audio systems; supports 25V speaker configurations.
  • Ensure consistent performance; integrated limiter protects your professional speakers.

What's in the box:

  • ne8250.25pe 8-Channel Network Enabled Power Amplifier with Protea DSP
  • Ashly 5 Year Limited Warranty
