ASUS RT-AX89X Specifications

  • Network Standard

    IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6

  • Product Segment

    AX6000 ultimate AX performance

  • Coverage

    Very large homes

  • Data Rate

    802.11a: 6,9,12,18,24,36,48,54 Mbps
    802.11b: 1, 2, 5.5, 11 Mbps
    802.11g: 6,9,12,18,24,36,48,54 Mbps
    802.11n: up to 600 Mbps
    802.11n (1024 QAM): up to 1000 Mbps
    802.11ac (1024 QAM): up to 4333 Mbps
    802.11ac: up to 3466 Mbps
    802.11ax (2.4GHz): up to 1148 Mbps
    802.11ax (5GHz): up to 4804 Mbps

  • Antenna

    External antenna x 4

  • Transmit/Receive

    2.4 GHz 4 x 4
    5 GHz 4 x 4

  • Processor

    1.8 GHz quad-core processor

  • Memory

    256 MB Flash
    1 GB RAM

  • Wi-Fi Technology

    OFDMA (Orthogonal Frequency Division Multiple Access)
    Beamforming: standard-based and universal
    1024-QAM high data rate
    20/40/80/160 MHz bandwidth

  • Operating Frequency

    2.4 GHz / 5 GHz

  • Encryption

    WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support

  • Firewall & Access Control

    Firewall: SPI intrusion detection, DoS protection
    Access control: Parental control, Network service filter, URL filter, Port filter

  • Management

    UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log

  • VPN Support

    IPSec Pass-Through
    PPTP Pass-Through
    L2TP Pass-Through
    PPTP server
    OpenVPN server
    PPTP client
    L2TP client
    OpenVPN client

  • WAN Connection Type

    Internet connection type: Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP

  • Utilities

    Router setup wizard; Firmware restoration; Device discovary; printer setup utility

  • Ports

    RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 8
    USB 3.1 Gen 1 x 2

  • Features

    Link Aggregation: 802.3ad
    MU-MIMO
    Traffic Analyzer
    Adaptive QoS
    WTFast Gamers Private Network
    AiProtection Pro
    Parental Control
    Guest Network:
    2.4 GHz x 3, 5 GHz x 3
    VPN server:
    PPTP Server, OpenVPN Server, IPSec server
    VPN client:
    PPTP client, L2TP client, OpenVPN client
    NAT Pass-Through:
    PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP

  • Features (Contd.)

    Pass-Through, PPPoE relay
    Mac OS Backup
    Enhanced media server
    Image:
    Jpeg
    Audio:
    mp3, wma, wav, pcm, mp4, lpcm, ogg
    Video
    : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov (AiPlayer app compatible)
    AiCloud personal cloud service
    3G/4G data sharing

    Printer Server:
    Multifunctional printer support (Windows only) LPR protocol support

  • Features (Contd..)

    LPR protocol support
    Download Master:
    Support bt, nzb, http, ed2k
    Support encryption, DHT, PEX and magnet link
    Upload and download bandwidth control
    Download schedulingAiDisk file server:
    Samba and FTP server with account management
    Dual WAN
    IPTV support
    Roaming Assist

  • Button

    WPS Button, Reset Button, Power Button, Wireless on/off Button, LED on/off Button

  • LED Indicator

    Power x 1
    Wi-Fi x 2
    WAN x 1
    LAN x 1
    USB x 2
    WPS x 1

  • Power Supply

    AC Input: 110V-240V(50-60Hz)
    DC Output: 19 V with max. 2.37 A current

  • OS Support

    Windows 10
    Windows 8
    Windows 7
    Mac OS X 10.6
    Mac OS X 10.7
    Mac OS X 10.8

  • Operation mode

    Wireless router mode
    Access point mode
    Media bridge mode

  • Dimensions (W x D x H)

    11.8 x 7.4 x 2.4" (29.9 x 18.7 x 6.09cm)(Without Bezel)

  • Weight

    2.42 lbs (1.01kg)

  • UPC Code

    192876122303

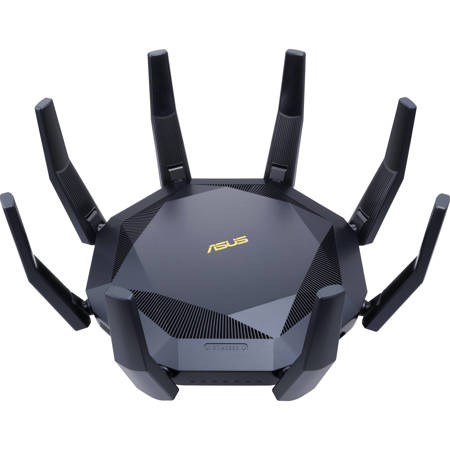

About ASUS RT-AX89X

FEATURED REVIEWS

Octopod Router Give GigE service.

By bob W.

Adorama took the order and direct shipped from ASUS and landed in my lap in a week. The router came up - was integrated into my 3 story house as the central command for a 3 Router AIMesh including the RT-AX89X, the RT-AX86U and RT-AX58U. I now get GigE Internet throughout the wired connections around the house and 750Mbps on wireless to my WiFi6 clients. Nice upgrade. I mounted the router on a ring to provide good airflow for the system to prevent overheating. Great performance so far.

Great Router - Great Retailer

By JOHN C.

Great Router...Easy to set up...Lots of set up options...AiMesh was easy to set up...Great coverage of 3100SF...Good Range. Adorama price was excellent...On Sale and on a very hard product to find...Packaged really well in shipping...communications about order was timely...followup communications was welcomed...Will recommend them to others

The New Era of Home Wi-Fi
The growing number of connected personal and IoT devices has led to an overall increase in network density that is pushing the limits of the current Wi-Fi standard. The latest Wi-Fi 6 (802.11ax) provides future-proof technologies, higher network efficiency, faster Wi-Fi speeds, greater coverage and improved battery life for connected devices, providing a significantly better networking experience for users.

Warp-speed Wi-Fi
RT-AX89X is a 4x4 dual-band Wi-Fi router that provides 160MHz bandwidth and 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 6000Mbps - 1148Mbps on the 2.4GHz band and 4804Mbps on the 5GHz band - RT-AX89X is 2.3X faster than 802.11ac 4x4 dual-band routers.

Built for Multi-device Households
With a revolutionary combination of OFDMA and MU-MIMO technology, Wi-Fi 6 (802.11ax) provides up to 4X greater network capacity and efficiency in traffic-dense environments. Previous-generation Wi-Fi 5 (802.11ac) can only handle one device at a time on each network channel, which is an inefficient use of available bandwidth. OFDMA support in the Wi-Fi 6 divides each channel into small sub-channels, allowing signals from multiple devices to be bundled together and transmitted simultaneously, reducing latency for a smoother, more responsive Wi-Fi experience.

Better Battery Life for Your Devices
Target Wake Time (TWT) allows RT-AX89X to schedule designated intervals for devices to transmit data. This allows them to sleep when there is no need to wait for a router signal, reducing power consumption by up to 7X for significantly improved battery life.

Wi-Fi that Goes Farther
With the latest Wi-Fi 6 (802.11ax) featuring OFDMA technology, RT-AX89X provides increased Wi-Fi signal range and better coverage by dividing each channel into smaller sub-channels. These sub-channels have a smaller bandwidth that enables them to travel up to 80 percent farther, resulting in a better Wi-Fi connection throughout your home

Give your Online Gaming a Double Boost
RT-AX89X's Adaptive QoS prioritizes game packets for smoother online play. It also has built-in wtfast to seek out and secure the shortest possible path between your gaming device and the game server, minimizing game ping and lag.

Commercial-grade Security for your Home Network
RT-AX89X has lifetime free AiProtection Pro, powered by Trend Micro with automatic, regularly updated security signatures to protect your devices and personal data from internet threats. This strong security offers advanced parental controls, including the ability to block specific websites and mobile app types.

Wired or Wireless. The Choice is Yours.

More LAN Ports for More Convenience
Eight Gigabit LAN ports make RT-AX89X the ideal solution if you have multiple wired devices, such as NAS systems, PCs and switches. And, if you ever want to host a LAN party at home, RT-AX89X makes it possible.

Wireless that's as Stable as Wired Ethernet
When you are far away from your router, enjoying the stability of a wired network connection is usually impractical or impossible. With special designed antennas, AiRadar beamforming and RangeBoost technology, RT-AX89X provides wide coverage and a stable signal, letting you enjoy a reliable and smooth connection for gaming or work anywhere in your home.

Powerful Whole-home Wi-Fi System. The Way You Want.
In most cases, your RT-AX89X can deliver smooth, reliable Wi-Fi to every part of your home. But Wi-Fi coverage can be affected by many factors - room layout, construction materials, and even furnishings. ASUS AiMesh is an innovative new router feature that fixes these problems: it creates a whole-home Wi-Fi network using multiple ASUS routers. AiMesh is powerful, flexible and you can use a mix of ASUS router models - protecting your investment! AiMesh gives you time-saving central control, and seamless roaming capability. AiMesh is Wi-Fi you can rely on - for all your devices, all the time!

• Turn your ASUS routers into whole-home Wi-Fi system with a simple firmware update
• Mix and match preferred models from selected ASUS routers
• Create a Wi-Fi network with either a single SSID or multiple SSIDs
• All router features works across the entire Wi-Fi system

Extreme Power with 1.8GHz Quad-core CPU
RT-AX89X features a top-of-the-line 1.8GHz 64-bit quad-core CPU that is more powerful than many desktop processors. With its incredible performance, RT-AX89X maximizes throughput for the best networking performance, accelerates USB data transfers and more.

Features

Next-Gen Wi-Fi 6 Standard
802.11ax Wi-Fi standard for better efficiency and throughput.

Ultrafast Wi-Fi Speed
6000Mbps Wi-Fi speed to handle even the busiest network with ease.

Wider Usage and More Convenience
4 antennas + 8 LAN ports to support more clients at the same time.

Commercial-grade Security
AiProtection Pro, powered by Trend Micro, blocks internet security threats for all your connected smart devices.

Better Partner with Mesh System
Compatible with ASUS AiMesh Wi-Fi system for seamless whole-home coverage.

Smart Home Ready
Control your RT-AX89X by linking your Amazon Alexa to it with simple voice commands.

ASUS RT-AX89X Features

  • Next-Gen Wi-Fi 6 Standard
  • Ultrafast Wi-Fi Speed
  • Wider Usage and More Convenience
  • Commercial-grade Security
  • Better Partner with Mesh System
  • Smart Home Ready

Product Documents

User Manual

Key Features

  • Next-Gen Wi-Fi 6 Standard
  • Ultrafast Wi-Fi Speed
  • Wider Usage and More Convenience
  • Commercial-grade Security
  • Better Partner with Mesh System
  • Smart Home Ready

What's in the box:

  • RT-AX89X AX6000 Dual-Band Wi-Fi 6 Gaming Router
  • Power Cord
  • RJ45 Ethernet Cable
  • Quick Start Guide
  • ASUS 2 Year Limited Warranty
