ASUS ROG Zenith II Extreme Alpha AMD Ryzen TRX40 E-ATX Gaming Motherboard
See all Asus items

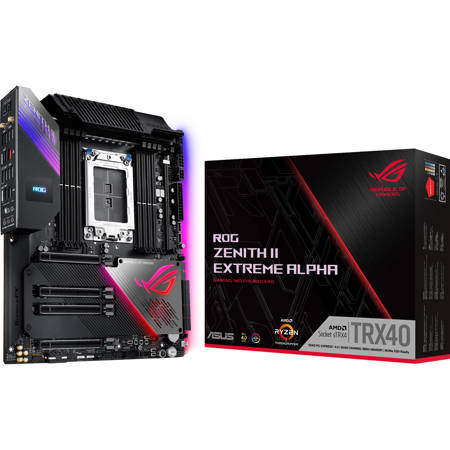

ASUS ROG Zenith II Extreme Alpha AMD Ryzen TRX40 E-ATX Gaming Motherboard

SKU: AS90MB14K0MA

This item is no longer available.

Recommended Alternatives

Asus Pro B660M-C D4-CSM: Picture 1 regular
ASUS Pro B660M-C D4-CSM Intel Socket LGA1700 Micro-ATX Commercial Motherboard
$144.99
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Rezart C : I've read good reviews about itFERNANDO R : Because I like to have the best from Asus.Ruslan C : good

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ASUS ROG Zenith II Specifications

General

General

Jump to...

  • Chipset

    AMD TRX40

  • CPU Socket

    TRX4

Back Panel I/O

Jump to...

  • USB

    1 x USB 3.2 Gen 2x2 Type-C
    6 x USB 3.1 / USB 3.2 Gen 2 Type-A
    1 x USB 3.1 / USB 3.2 Gen 2 Type-C
    4 x USB 3.1 / USB 3.2 Gen 1 Type-A

  • Audio

    1 x S/PDIF
    5 x 3.5 mm

  • Ethernet / Controller

    1 x Intel Gigabit
    1 x Aquantia AQC-107 10GbE

  • Wi-Fi Antenna

    2 x Connector

  • Buttons

    BIOS Flashback, Clear CMOS

Memory

Jump to...

  • Memory Slots

    8 x 288-Pin

  • Memory Support

    DDR4 2133, 2400, 2666, 2800, 3733, 3800, 4133, 4266, 4333, 4400, 4600, 4733 MHz

  • Maximum Capacity

    256 GB

  • Channel Architecture

    Quad Channel

Storage Expansion

Jump to...

  • SATA

    4 x SATA III

  • M.2

    1 x 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III)
    2 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)

  • DIMM.2

    1

  • Optane Memory Support

    Yes

  • RAID Support

    RAID 0, 1, 10

Internal I/O

Jump to...

  • Expansion Slots

    4 x PCIe 4.0 x16

  • USB

    2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)
    2 x USB 2.0 Header (Supports 3 USB Type-A Port)

  • Multi-GPU Support

    3-Way NVIDIA SLI

  • Air Cooling

    2 x 4-Pin CPU
    2 x 4-Pin System
    1 x 2-Pin W_IN
    1 x 2-Pin W_OUT
    1 x 3-Pin W_FLOW

  • Liquid Cooling

    2 x 4-Pin Pump
    1 x 9-Pin Monoblock Sensor

  • Power Connectors

    1 x 6-Pin ATX
    1 x 24-Pin Mainboard
    2 x 8-Pin ATX
    1 x 4-Pin Molex

  • Security

    TPM Module

  • LED Header

    2 x RGB

  • Audio

    1 x S/PDIF

  • Diagnostics

    Clear CMOS, Flash BIOS, ReTry

BIOS

Jump to...

  • ROM

    2 x 128 Mb

Audio

Jump to...

  • Audio Codec

    SupremeFX CODEC S1220 (8-Channel)

  • DAC

    ESS SABRE9018Q2C

Wireless

Jump to...

  • Bluetooth

    5.1

  • Wi-Fi

    Wi-Fi 6 (802.11ax) (MU-MIMO)

Physical

Jump to...

  • Form Factor

    E-ATX

Other

Jump to...

  • UPC Code

    192876619681

About ASUS ROG Zenith II

Built to dominate the battlefield for high-end gamers and content creators. The ROG Zenith II Extreme Alpha featuring 16 Infineon TDA21490 teamed up power stages to releases the full might of the AMD 3rd Gen Ryzen Threadripper processor while keeping thermals under control and support PCIe Gen4 speed, paired with 5x M.2 slots, Wi-Fi 6 (802.11ax), 10 Gbps Ethernet, 5x M.2, 8x SATA, USB 3.2 Gen 2x2 and Aura Sync RGB.

Enhance Power Solution
Upgraded Power solution provides the higher system power capacity up to 16% lower the VRM MOSFET temperature up to 4% when you apply the latest AMD 3990X 64 core CPU under extremely loading.

Details
ASUS ROG Zenith II Extreme TRX40 Gaming AMD 3rd Gen Ryzen Threadripper sTRX4 EATX Motherboard with 16 Infineon Power Stages, PCIe 4.0, Wi-Fi 6 (802.11ax), 10 Gbps Ethernet, 5x M.2, 8x SATA, USB 3.2 Gen 2x2 and Aura Sync RGB.

ASUS ROG Zenith II Features

  • Ready for AMD 3rd Gen Ryzen Threadripper Processors: PCIe 4.0 ready
  • 4733Mhz memory OC performance, with up to five M.2 drives and USB3.2 Gen2x2 support
  • 16 Infineon TDA21490 teamed up power stages, ProCool II power connectors
  • Active-cooling VRM heatsink, PCIe-zone M.2 aluminum heatsink, backplate
  • Fan Extension Card II and water-cooling zone, microfine alloy chokes and 10K capacito
  • Onboard Aquantia 10 Gbps Ethernet, Wi-Fi 6 (802.11ax) with MU-MIMO support
  • Color OLED display and ASUS-exclusive Aura Sync RGB lighting & GameFirst V technology
  • SupremeFX S1220 and ESS SABRE9018Q2C for enthusiast-grade audio performance

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ready for AMD 3rd Gen Ryzen Threadripper Processors: PCIe 4.0 ready
  • 4733Mhz memory OC performance, with up to five M.2 drives and USB3.2 Gen2x2 support
  • 16 Infineon TDA21490 teamed up power stages, ProCool II power connectors
  • Active-cooling VRM heatsink, PCIe-zone M.2 aluminum heatsink, backplate
  • Fan Extension Card II and water-cooling zone, microfine alloy chokes and 10K capacito
  • Onboard Aquantia 10 Gbps Ethernet, Wi-Fi 6 (802.11ax) with MU-MIMO support

What's in the box:

  • ASUS ROG Zenith II Extreme Alpha AMD Ryzen TRX40 E-ATX Gaming Motherboard
  • ASUS 3 Year Limited Warranty
