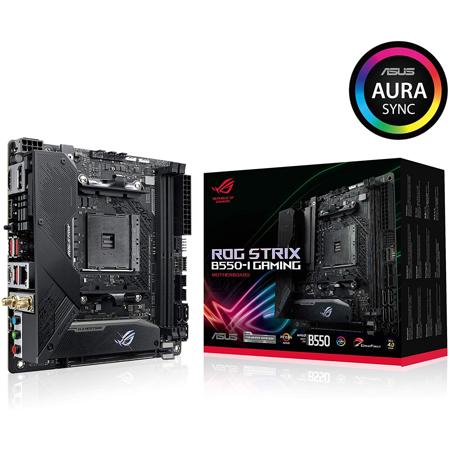

Asus ROG Strix B550-I 3rd Gen AMD Ryzen AM4 Mini-ITX SFF Gaming Motherboard
See all Asus items

ASUS ROG Strix B550-I 3rd Gen AMD Ryzen AM4 Mini-ITX SFF Gaming Motherboard

SKU: AS90MB14L0M0

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Joseph C : To build a pc

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ASUS ROG Strix B550-I Gaming Specifications

  • CPU

    AMD AM4 Socket for 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors

  • Chipset

    AMD B550

  • Memory

    3rd Gen AMD Ryzen Processors:
    2x DIMM, Max. 64GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory

  • Memory (Contd.)

    Next Generation AMD Ryzen PRO Processors:
    2x DIMM, Max. 64GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
    Dual Channel Memory Architecture
    OptiMem II
    ECC Memory (ECC mode) support varies by CPU.

  • Graphic

    1x HDMI 2.1(4K@60HZ)
    1x DisplayPort 1.4

  • Expansion Slots

    3rd Gen AMD Ryzen Processors: 1x PCIe 4.0 x16 (x16 mode)

  • Storage

    Total supports 2x M.2 slots and 4x SATA 6Gb/s ports
    3rd Gen AMD Ryzen Processors:
    1x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support

    AMD B550 Chipset:
    1x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
    4x SATA 6Gb/s port(s), Support Raid 0, 1, 10

  • LAN

    Intel I225-V 2.5Gb Ethernet
    Asus LANGuard

  • Wireless Data Network

    Intel Wi-Fi 6 AX200
    2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
    Supports dual band frequency 2.4/5 GHz
    Supports channel bandwidth: HT20/HT40/HT80/HT160

  • Bluetooth

    Bluetooth v5.1

  • Audio

    SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A:
    Dual OP Amplifiers
    Impedance sense for front and rear headphone outputs
    Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    Supports up to 32-Bit/192kHz playback

    Audio Feature:
    Rear audio USB Type-C port

  • Audio (Contd.)

    LED-illuminated design
    Audio Shielding
    Premium Japanese audio capacitors

  • USB Ports

    Rear USB Port ( Total 6 )
    4x USB 3.2 Gen 2 port(s)(1x USB Type-C +3x Type-A)
    1x USB 2.0 port(s)
    1x USB 2.0 port(s)(1x audio USB Type-C )
    Front USB Port ( Total 5 )
    1x USB 3.2 Gen 2 front panel connector port(s)(1x USB Type-C)
    2x USB 3.2 Gen 1 port(s)
    2x USB 2.0 port(s)

  • Software Features

    ROG Exclusive Software:
    RAMCache III
    ROG CPU-Z
    GameFirst VI
    Sonic Studio III + Sonic Studio Virtual Mixer
    Sonic Radar III
    DTS Sound Unbound
    Overwolf
    Anti-virus software

  • Software Features (Contd.)

    Asus Exclusive Software Features:
    Armoury Crate:
    Aura Creator
    Aura Sync
    AI Noise Cancelling Microphone

    AI Suite 3: 5-way Optimization
    TPU
    EPU
    DIGI+ VRM
    Fan Xpert 4
    Turbo APP: EZ update
    WinRAR
    UEFI BIOS

    Asus EZ DIY:
    Asus CrashFree BIOS 3
    Asus EZ Flash 3
    Asus UEFI BIOS EZ Mode
    FlexKey

  • Asus Special Features

    Aura Sync:
    Standard RGB header(s)
    Addressable Gen 2 RGB header(s)

    Asus Q-Design:
    Asus Q-CODE
    Asus Q-DIMM
    Asus Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
    Asus Q-Slot

    Asus Thermal Solution: Aluminum M.2 heatsink
    Asus EZ DIY:
    BIOS Flashback button
    BIOS FlashBack LED
    Clear CMOS header

  • Asus Special Features (Contd.)

    Procool
    Pre-mounted I/O shield
    SafeSlot
    Rear audio USB Type-C connector

  • Back I/O Ports

    1x Intel I225-V 2.5Gb Ethernet
    1x DisplayPort
    1x HDMI
    4x USB 3.2 Gen 2 (1x USB Type-C+3x Type-A)
    2x USB 2.0 (one port can be switched to USB BIOS FlashBack 1 for audio USB Type-C)
    1x BIOS FlashBack Button(s)
    1x Asus Wi-Fi Module
    3x LED-illuminated audio jacks

  • Internal I/O Ports

    1x CPU Fan connector(s)
    1x Chassis Fan connector(s)
    1x AIO_PUMP connector
    1x Aura RGB Strip Header(s)
    1x Addressable Gen 2 header(s)
    1x USB 3.2 Gen 1 front panel TypeC connector
    1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
    1x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

  • Back I/O Ports (Contd.)

    2x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD)
    4x SATA 6Gb/s connector(s)
    1x 24-pin EATX Power connector(s)
    1x 8-pin ATX 12V Power connector(s)
    1x Front panel audio connector(s) (AAFP)
    1x Thermal sensor connector(s)
    1x Clear CMOS jumper(s)
    1x System panel connector
    1x Speaker connector
    1x VRM_HS_FAN Header

  • BIOS

    256 Mb Flash ROM, UEFI AMI BIOS

  • Manageability

    WOL by PME, PXE

  • Operating System

    Windows 10 64-bit

  • Dimensions

    Mini ITX Form Factor
    6.7x 6.7" (17x 17cm)

  • UPC Code

    192876786383

About ASUS ROG Strix B550-I Gaming

ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle 3rd Gen AMD Ryzen CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-I Gaming is ready to become your next compact gaming build.

PCIe 4.0-Ready
ROG Strix B550-I Gaming has two M.2 slots, ROG Strix B550-I Gaming features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 2280 socket and NVM Express RAID for a performance boost.

SupremeFX
Built-in ROG SupremeFX audio technology ensures pristine audio for ROG Strix B550-I Gaming. Along with ensuring a flat frequency response for a neutral, detailed sound signature, it offers two front-panel outputs driven by op amps that deliver high-quality audio to gaming headsets.

Undeniably ROG Strix
ROG Strix B550-I Gaming embodies the ROG spirit with eye-catching aesthetics, including the next-generation distorted ROG eye logo and recessed cybertext patterning etched on the I/O shroud. These new designs move ROG Strix boldly into the future, while clearly reflecting the series' gaming roots.

FlexKey
Front-panel header allows customization of the front-panel chassis reset button, providing options for quick access to Aura lighting controls, DirectKey, or system reset

BIOS FlashBack
Users can place a BIOS file onto a FAT32-formatted USB drive and simply plug it into the USB BIOS FlashBack port and press a button to update the (UEFI) BIOS. Updates can be made even if memory or CPU aren't present

5-Way Optimization
Take care of complex tuning with just one click. Asus 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics. The automated CPU tuning feature of 5-Way Optimization leverages the same onboard intelligence as AI Overclocking, but goes further by running a Prime95-based stress test that continually monitors the system.

• TPU insight
• EPU guidance
• Fan Xpert 4
• DIGI+ power controls
• Turbo App

ASUS ROG Strix B550-I Gaming Features

  • AMD AM4 Socket and PCIe 4.0: The perfect pairing for 3rd Gen AMD Ryzen CPUs
  • 8+2 DrMOS power stages with high-quality alloy chokes and durable capacitors
  • VRM and PCH heatsinks with Asus Stack Cool 3+ design
  • On-board WiFi 6 (802.11ax), Bluetooth V5.1 and 2.5 Gb LAN with Asus LANGuard
  • Supports HDMI 2.1 (4K@60HZ) and DisplayPort 1.2 output
  • Dual M.2 slots (NVMe SSD)-one with PCIe 4.0 x4 connectivity
  • USB 3.2 Gen 2 front panel Type-C connector, USB 3.2 Gen 2 Type-C port
  • SupremeFX S1220A codec with DTS Sound Unbound and Sonic Studio III
  • Mini-ITX form factor, Asus-exclusive Aura Sync RGB lighting
  • RGB header and addressable Gen 2 RGB header for greater customization

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • AMD AM4 Socket and PCIe 4.0: The perfect pairing for 3rd Gen AMD Ryzen CPUs
  • 8+2 DrMOS power stages with high-quality alloy chokes and durable capacitors
  • VRM and PCH heatsinks with Asus Stack Cool 3+ design
  • On-board WiFi 6 (802.11ax), Bluetooth V5.1 and 2.5 Gb LAN with Asus LANGuard
  • Supports HDMI 2.1 (4K@60HZ) and DisplayPort 1.2 output
  • Dual M.2 slots (NVMe SSD)-one with PCIe 4.0 x4 connectivity

What's in the box:

  • ROG Strix B550-I Gaming 3rd Gen AMD Ryzen AM4 Mini-ITX SFF Motherboard
  • I/O Shield
  • 4x SATA 6Gb/S Cable
  • 2x M.2 Screw
  • ROG Strix Stickers
  • M.2 Bracket
  • Cable Ties
  • Wi-Fi Antenna
  • Extension Cable For Addressable LED
  • Panel Cable
  • ROG Audio USB Type-C Cable
  • User Manual
