Asus ROG Strix B550-F AMD AM4 3rd Gen Ryzen ATX Gaming Motherboard
Unboxing | ASUS ROG Strix B550-F Gaming (Wi-Fi) Motherboard
ASUS ROG Strix B550-F: Picture 1 thumbnail
See all Asus items

ASUS ROG Strix B550-F AMD AM4 3rd Gen Ryzen ATX Gaming Motherboard

SKU: AS90MB14S0M0

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?WESLEY C : BECAUSE I LOVE YOUMICHELLE V : I need pc and it good item yemsSEAN W : It was the most recommended B550 motherboard by Tom's HardwareJENNIFER S : I needed itjonathan a : go priceJuan C : good item, good price!

Reviews about this item

Review Summary

2025-02-04T19:00:00

Rated 5 out of 5

Great Board!

I bought this board on the 3rd after going through two MSI boards that were dead on arrival. This motherboard went in like candy and windows install was quick and painless. It has a lot of great features including a dedicated port to update bios from usb.Its well worth the money no doubt

Tyr_the_DM

2023-09-11T20:00:00

Rated 5 out of 5

This Motherboard Has Made Me Happy

I got my motherboard a couple to 3 months ago. It was to outfit a new PC build after 9 years with my previous ASUS motherboard. This board had the features I wanted, it looked good, was a well-thought-out design and had the features I desired to have on it. The design is esthetically pleasing to look at, and it was easy to get set-up with my other components. It's performed well with the Ryzen CPU I paired it with and no issues using it. I feel I chose the right motherboard for my needs. So far, it's functioning like a solid product.

tillbillybear

2023-06-05T20:00:00

Rated 5 out of 5

Perfect motherboard for my use.

Part of my new computer pc build, when selecting the parts list. Specs of the motherboard meet what I was looking for in terms of gaming ability support. Highly recommend if looking for Republic of Gamers products.

Malthael_ROS

2023-04-17T20:00:00

Rated 2 out of 5

Great motherboard if you like to get radiated.

If you enjoy walks on the beach, ice cream, the supernatural, gaming, deep learning, and lethal doses of radiation, this is the right motherboard for you!

API T.

2022-10-16T20:00:00

Rated 5 out of 5

Vert Fast

My first gaming computer and co.pared to all the other computers I have owned this is the smoothest running I have had.

ToxiiiZom6ie

2022-09-11T20:00:00

Rated 3 out of 5

Audio Just Stopped Working

I bought this motherboard about a year ago and the audio just stopped working. I called ASUS support for technical assistance. They had me look at settings in my desktop and asked what trouble shooting I had performed. They got my information and then passed the issue to their second level support. Instead of receiving a call, all I received were links for me to use to solve my problem and let us know if you need anything else. ASUS needs to create a Support category for review.

SDddddddddd

2022-07-09T20:00:00

Rated 5 out of 5

A great board for a great price

Bought this motherboard in December and I can comfortably say it works like a charm. I would highly recommend this board to anyone building a pc and is looking for a pretty good board for an affordable price. Definitely got lucky finding this board as it was the last one in stock at microcenter!

oscarfelix

2022-07-01T20:00:00

Rated 5 out of 5

Very nice board! Wish I'd gotten the WiFi version

I really love this board. Bios is familiar and easy to navigate, and the board runs great! Only thing I'd do different if I had to do it all over again is that I would get the wifi version for a few dollars more. Otherwise this is pretty much perfect.

TheHackster

2021-12-29T07:03:45

Rated 5 out of 5

I like it. Here's why:

The B-550-F board came in great condition, and I was able to start assembling my new pc. Pros: > PCIE 4.0 speed. > BIOS flashback button. > Lots of USB 3.0 and 2.0 ports. Cons: > This board does not have a wifi/bluetooth card on it. I knew I needed a new motherboard with PCIE 4.0, but I forgot to check if they came with wifi/bluetooth cards installed. // I personally would've spent more money to get those features, but it's not a deal breaker for me anymore. > No USB-C motherboard header. Overall: I'd recommend this board, and if you don't want to use AUX, or wired xbox controller, then you should spend more for a motherboard with it. // I could buy wifi card, or bluetooth, but thats just extra steps I'd have to take. // ALSO, if you are using an AIO cooler, then you might get a CPU FAN ERROR when your pc posts. The solution that worked for me, was to go into BIOS and set the cpu fan from Monitor -> Ignore. and it worked.

Jimmy N.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ASUS ROG Strix B550-F Specifications

  • CPU

    AMD AM4 Socket 3rd Gen AMD Ryzen Processors

  • Chipset

    AMD B550

  • Memory

    3rd Gen AMD Ryzen Processors:
    4x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

  • Memory (Contd.)

    Next Generation AMD Ryzen PRO Processors:
    4x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
    Dual Channel Memory Architecture
    OptiMem II
    ECC Memory (ECC mode) support varies by CPU.

  • Graphic

    Integrated Graphics Processor
    1x DisplayPort 1.2
    1x HDMI 2.1(4K@60HZ)

  • Multi-GPU Support

    Supports AMD 2-Way CrossFireX Technology

  • Expansion Slots

    3rd Gen AMD Ryzen Processors: 1x PCIe 4.0 x16 (x16 mode)
    AMD B550 Chipset:
    1x PCIe 3.0 x16 (x4 mode)
    3x PCIe 3.0 x1

  • Storage

    Total supports 2x M.2 slots and 6x SATA 6Gb/s ports
    3rd Gen AMD Ryzen Processors:
    1x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

    AMD B550 Chipset:
    1x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    6x SATA 6Gb/s port(s)
    Support Raid 0, 1, 10

  • LAN

    Intel I225-V 2.5Gb Ethernet
    Asus LANGuard

  • Audio

    ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A:
    Dual OP Amplifiers
    Impedance sense for front and rear headphone outputs
    Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    Supports up to 32-Bit/192kHz playback

  • Audio (Contd.)

    Audio Feature :
    SupremeFX Shielding Technology
    Gold-plated jacks
    Optical S/PDIF in port(s) at back panel
    Audio Shielding
    Premium Japanese audio capacitors
    Audio Cover

  • USB Ports

    Rear USB Port ( Total 8 )
    2x USB 3.2 Gen 2 port(s)(1x Type-A +1x USB Type-C)
    4x USB 3.2 Gen 1 port(s)(4x Type-A)
    2x USB 2.0 port(s)
    Front USB Port ( Total 6 )
    2x USB 3.2 Gen 1 port(s)
    4x USB 2.0 port(s)

  • Software Features

    ROG Exclusive Software:
    RAMCache III
    ROG CPU-Z
    GameFirst VI
    Sonic Studio III + Sonic Studio Virtual Mixer
    Sonic Radar III
    DTS Sound Unbound
    Overwolf
    Anti-virus software

    Asus Exclusive Software Features
    Armoury Crate:
    Aura Creator
    Aura Sync
    AI Noise Cancelling Microphone

  • Software Features (Contd.)

    AI Suite 3: PPSU
    EPU
    DIGI+ VRM
    Fan Xpert 4
    TurboV EVO: EZ update
    WinRAR
    UEFI BIOS

    Asus EZ DIY
    Asus CrashFree BIOS 3
    Asus EZ Flash 3
    Asus UEFI BIOS EZ Mode

  • Asus Special Features

    Aura Sync:
    Standard RGB header(s)
    Addressable Gen 2 RGB header(s)

    Asus Q-Design:
    Asus Q-DIMM
    Asus Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
    Asus Q-Slot

    Asus Thermal Solution: Aluminum M.2 heatsink
    Asus EZ DIY:
    BIOS FlashBack button
    BIOS FlashBack LED
    Clear CMOS header
    ProCool
    Pre-mounted I/O shield
    SafeSlot

  • Back I/O Ports

    1x Intel I225-V 2.5Gb Ethernet
    1x DisplayPort
    1x HDMI
    2x USB 3.2 Gen 2 (1x Type-A+1x USB Type-C)
    4x USB 3.2 Gen 1
    2x USB 2.0
    1x Optical S/PDIF out
    1x BIOS FlashBack Button(s)
    5x Gold-plated audio jacks
    Asus Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)

  • Internal I/O Ports

    1x CPU Fan connector(s)
    1x CPU OPT Fan connector(s)
    3x Chassis Fan connector(s)
    1x AIO_PUMP connector
    1x AAFP connector
    2x Aura RGB Strip Header(s)
    1x Addressable Gen 2 header(s)
    1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
    2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

  • Internal I/O Ports (Contd.)

    1x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
    1x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    6x SATA 6Gb/s connector(s)
    1x Thunderbolt header(s)
    1x 24-pin EATX Power connector(s)
    1x 8-pin ATX 12V Power connector(s)
    1x 4-pin ATX 12V Power connector(s)

  • Internal I/O Ports (Contd..)

    1x System panel(s)
    1x Thermal sensor connector(s)
    1x Clear CMOS jumper(s)

  • BIOS

    256 Mb Flash ROM, UEFI AMI BIOS

  • Manageability

    WOL by PME, PXE

  • Operating System

    Windows 10 64-bit

  • Dimensions

    ATX Form Factor
    12x 9.6" (30.5x 24.4cm)

  • UPC Code

    192876749692

About ASUS ROG Strix B550-F

FEATURED REVIEWS

Great Board!

By Tyr_the_DM

I bought this board on the 3rd after going through two MSI boards that were dead on arrival. This motherboard went in like candy and windows install was quick and painless. It has a lot of great features including a dedicated port to update bios from usb.Its well worth the money no doubt

This Motherboard Has Made Me Happy

By tillbillybear

I got my motherboard a couple to 3 months ago. It was to outfit a new PC build after 9 years with my previous ASUS motherboard. This board had the features I wanted, it looked good, was a well-thought-out design and had the features I desired to have on it. The design is esthetically pleasing to look at, and it was easy to get set-up with my other components. It's performed well with the Ryzen CPU I paired it with and no issues using it. I feel I chose the right motherboard for my needs. So f...

View full Review

ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle 3rd Gen AMD Ryzen CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-F Gaming gives you a head start on your dream build.

PCIe 4.0-Ready
ROG Strix B550-F Gaming features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 22110 socket and NVM Express RAID for a performance boost.

SupremeFX
Built-in ROG SupremeFX audio technology ensures pristine audio for ROG Strix B550-F Gaming. Along with ensuring a flat frequency response for a neutral, detailed sound signature, it offers two front-panel outputs driven by op amps that deliver high-quality audio to gaming headsets.

Audio cover
Effective shielding against electromagnetic interference preserves the integrity of audio signals for the best sound quality.

Audio-line shielding
Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.

Dual OP amplifiers
With two op-amps onboard you're able to pump exceptional audio to your favorite cans, with 32-600 Ohm-headphone impedance for great flexibility.

Premium Nichicon audio capacitors
Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity.

Undeniably ROG Strix
ROG Strix B550-E Gaming embodies the ROG spirit with eye-catching aesthetics, including the next-generation distorted ROG eye logo and recessed cybertext patterning etched on the I/O shroud. These new designs move ROG Strix boldly into the future, while clearly reflecting the series' gaming roots.

ASUS ROG Strix B550-F Features

  • AMD AM4 Socket and PCIe 4.0: The perfect pairing for 3rd Gen AMD Ryzen CPUs
  • 12+2 DrMOS power stages with high-quality alloy chokes and durable capacitors
  • Fanless VRM and chipset heatsinks with Asus Stack Cool 3+ design
  • High-performance Gaming Networking: 2.5 Gb LAN with Asus LANGuard
  • Supports HDMI 2.1(4K@60HZ) and DisplayPort 1.2 output
  • Dual M.2 slots (NVMe SSD)-one with PCIe 4.0 x4 connectivity
  • USB 3.2 Gen 2 Type-C port and Thunderbolt 3 header
  • SupremeFX S1220A codec with DTS Sound Unbound and Sonic Studio III

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • AMD AM4 Socket and PCIe 4.0: The perfect pairing for 3rd Gen AMD Ryzen CPUs
  • 12+2 DrMOS power stages with high-quality alloy chokes and durable capacitors
  • Fanless VRM and chipset heatsinks with Asus Stack Cool 3+ design
  • High-performance Gaming Networking: 2.5 Gb LAN with Asus LANGuard
  • Supports HDMI 2.1(4K@60HZ) and DisplayPort 1.2 output
  • Dual M.2 slots (NVMe SSD)-one with PCIe 4.0 x4 connectivity

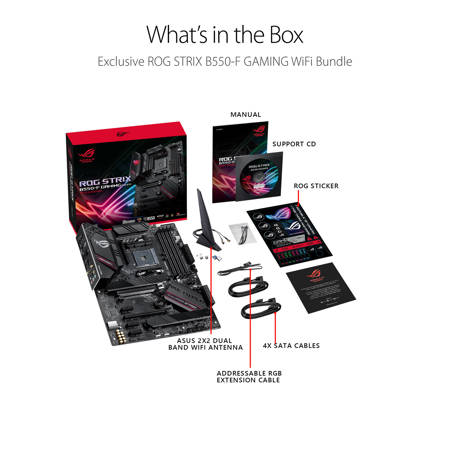

What's in the box:

  • ROG Strix B550-F Gaming AMD AM4 3rd Gen Ryzen ATX Gaming Motherboard
  • 4x SATA 6Gb/s Cables
  • Supporting DVD
  • ROG Strix Stickers
  • Cable Ties
  • Extension Cable for Addressable LED
  • M.2 SSD Screw
  • M.2 Rubber
  • User Manual
  • Asus 3 Year Limited Warranty
