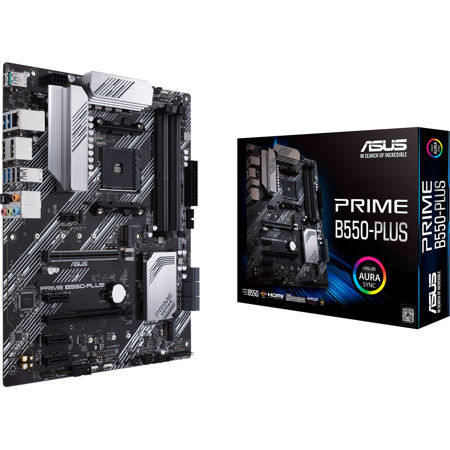

Name: ASUS Prime B550-PLUS AMD AM4 ATX Motherboard
Brand: ASUS
SKU: AS90MB14U0
Price: 139.99 USD
Availability: Discontinued
Rating: 5 (2 reviews)

ASUS Prime B550-PLUS AMD AM4 ATX Motherboard

ASUS Prime B550-PLUS

Asus

Adorama

Computers

Computer Components

Motherboard Interfaces

ASUS Motherboard Interfaces

ASUS Prime B550-PLUS

Top Rated Gear: ASUS Prime B550-PLUS AMD AM4 ATX Motherboard Expansion Ports: DisplayPort, HDMI, M.2, PCIe, Thunderbolt, USB, Internal Interface: PCIe, Number of Ports: 8, Series Compatibility: Desktop

ASUS

ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.Tune It Your WayComprehensive controls form the foundation of the ASUS Prime series. The Prime B550 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work - maximizing your productivity.Intelligent ControlEPUAll-around Energy EfficiencyWith the Energy Processing Unit (EPU), you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode.Fan Xpert 4Flexible Air- and Liquid-Cooling ControlsFan Xpert 4 software provides comprehensive control over fans, water pumps and all-in-one (AiO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, water pumps and AiO coolers can also be controlled via the UEFI BIOS.Digi+ VRM ControlPrecise Digital Power ControlThe Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.UEFI BIOSThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.Advance ModeAdvanced Tuning for Serious TweakersAn intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various Advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.Search FunctionQuickly and easily find the option or setting you need.ASUS User ProfilePort configuration settings between different BIOS versions or share them with friends.EZ ModeQuick and Simple SetupEZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings - all to help you get your rig up and running in no time.Intuitive Graphical Fan ControlFine-tune individual fan settings simply by dragging a curve with the mouse.EZ XMPImprove DRAM performance with one click.Aura On/Off mode (Stealth)Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.Cool to the CorePrime B550 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.HeatsinksVRM Heatsink and Thermal PadsTwo massive VRM heatsinks with underneath thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.Cooler by DesignPrime B550 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.Multiple Temperature SourcesEach header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.AIO Pump HeaderA dedicated PWM/DC header for self-contained water-cooling setups.Smart ProtectionA dedicated integrated circuit protects each fan header from overheating and overcurrent.4-Pin PWM/DC FanEach onboard chassis fan header supports PWM and DC mode.Build on a Solid FoundationPrime B550 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.StoragePCIe 4.0 M.2 (up to 64 Gbps)Achieve Speed With Onboard M.2PCIe 4.0 M.2 Slot supports up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to 64Gbps PCIe 4.0 storage device to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.ConnectivityUSB 3.2 Gen 2, Type-A & Type-CNumerous USB ports support high-end rigs loaded with peripherals, including a USB Type-C and a Type-A connectors with fast USB 3.2 Gen 2 connectivity for compatible cases.Thunderbolt 3 SupportPrime B550-Plus supports ThunderboltEX 3-TR, an Intel certified Thunderbolt 3 add-on card that enables bi-directional speeds of up to 40 Gbps via a single cable. Additionally, an integrated Thunderbolt 3 header can support up to six devices in a daisy-chain and provide up to 100 watts of power to fast-charge devices.Little Things Make a Big DifferencePrime B550 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.AudioOutstanding Audio, Combined onboard features deliver elevated audioIntelligent design and premium hardware create audio quality unlike anything you've ever experienced.Audio ShieldingSeparates analog/digital signal domains, significantly reducing multi-lateral interference.Separate Layer for Left and Right TracksEnsures minimal crosstalk between audio paths.Premium Japanese CapacitorsPremium parts provide an immersive sound signature, with exceptional fidelity.PersonalizationAura Sync, Outshine the CompetitionA well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for RGB LED strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.Addressable Gen 2 RGB HeaderThe addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing Aura RGB gear.Armoury CrateArmoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and highlight to help you stay in touch with the ASUS community.DIY FriendlySafeSlot, Protect Your Graphics CardSafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.Overvoltage Protection: World-class circuit-protecting power designAn exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.DRAM Overcurrent Protection: Short-circuit damage preventionOnboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.Stainless-Steel Back I/O: 3X corrosion-resistance for greater durabilityCorrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.LANGuard: Pumped-up throughput 2.5X higher surge toleranceASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.

This was my first Asus Prime board I purchased to update my HTPC. All the components such as the CPU, Ram, SSD drive and Video card fit perfectly. I updated the BIOS and everything went easy and smoothly. My PC is now running quietly and efficiently. All my motherboards I have purchased in the past were from Asus and I will continue to purchase them.

Great motherboard just like all Asus motherboards

I got this motherboard in my package about a half a month ago and it's working perfectly. Aside from the board looking gorgeous, it also has all the ports you'd ever need. I don't know much about pc building or components but 2 nvme ssd slots and multiple pcie slots sounds good to me. It also has 4 channels for ram which is an added bonus. Overall it's a freak looking and working board with instructions that clearly outline where everything goes.
