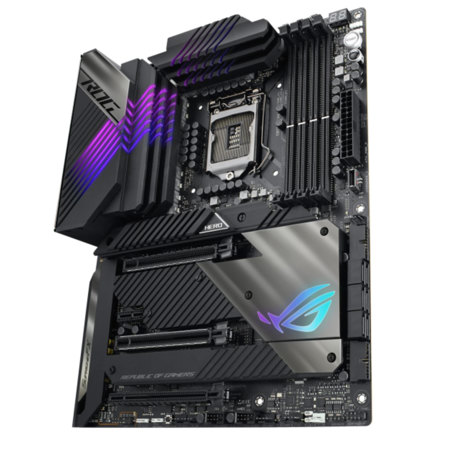

ASUS ROG Maximus XIII Hero Z590 LGA 1200 ATX Gaming Motherboard
See all Asus items

ASUS ROG Maximus XIII Hero Z590 LGA 1200 ATX Gaming Motherboard

SKU: AS90MB15X0M0

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2024-10-24T20:00:00

Rated 5 out of 5

Great Features and Compatibility

Bought this around a year ago for a replacement motherboard and was supprised at the quality along with the warranty. Helped me get my Personal Computer up and running and offered some great bios utilization and features.

SwaggerNaughtz

2023-05-17T20:00:00

Rated 3 out of 5

Good but problematic..

I bought this a month ago now, and it was running GREAT! But one afternoon when I got home I turned on my pc and now it shows Q code d6 which means no video graphics card detected! However after trying every SINGLE THING I COULD DO TO TRY AND MAKE IT WORK... Nothing. I tried every different graphics card I have in my pile of pc parts. Nothing. So after all this, I hope to be able to get a new one sent to me asap.

Shelbscomputerman92

2023-04-30T20:00:00

Rated 5 out of 5

Everything you need and more!

An excellent board. 3.0 + 4.0 nvme lanes. Duel ethernets. It's quality through and through. I've always used ASUS boards for all my builds over 30 years of doing so. Have never had an issue. Thanks ASUS

reaphavoc1

2023-01-29T19:00:00

Rated 5 out of 5

Great for Overclocking

I bought this motherboard not to long ago and I want to try overclocking. it brought my 11900k from 5.0ghz to 5.3ghz boost. Also i tried it on my ram aswell went from 3200 cl16 to 3600 cl16. The Q code reader makes it easy to find and address problems aswell and its aesthetically pleasing to look at the motherboard

SadBoiiiMatt

2022-09-11T20:00:00

Rated 5 out of 5

Great Features

I bought this MB a year ago and I have had no issues. Plenty of ram, SSD connections, Great purchase!

princevegeta

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ASUS ROG Maximus XIII Hero Specifications

  • CPU

    Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
    Supports Intel 14 nm CPU
    Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

  • Chipset

    Intel Z590 Chipset

  • Memory

    Memory Channels:4DDR4 (Dual channel)
    Max Memory Size:128GB
    DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel Extreme Memory Profile (XMP)
    OptiMem III

  • Graphics

    2x HDMI 2.0 2 x Intel Thunderbolt 4 ports
    2x HDMI 2.0
    2x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.2/1.4 and Thunderbolt video outputs

  • Expansion Slots

    Intel 11th &10th Gen Processors
    2x PCIe 4.0/3.0 x16 slot(s)
    Intel 11th Core processors support PCIe 4.0 x16 or x8/x8 or x8/x4 mode(s)
    Intel10th Core processors support PCIe 3.0 x16 or x8/x8 or x8/x4 mode(s)

    Intel Z590 Chipset
    1x PCIe 3.0 x16 slot (supports x4 mode)
    1x PCIe 3.0 x1 slots

  • Multi-GPU Support

    Supports NVIDIA 2-Way SLI Technology

  • Storage

    Supports 4x M.2 slots and 6x SATA 6Gb/s ports
    Intel11th &10th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280/22110
    Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs, M.2_2 slot (Key M), type 2242/2260/2280
    Intel 11th Core processors support PCIe 4.0 x4 mode
    Intel 10th Core processors support PCIe 3.0 x4 mode

  • Storage (Contd.)

    Intel Z590 Chipset
    M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
    M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
    6x SATA 6Gb/s ports

  • Ethernet

    2x Intel I225-V 2.5Gb Ethernet ASUS LANGuard
    ASUS LANGuard

  • USB

    Rear USB:Total 10 ports
    2x Thunderbolt 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support
    6x USB 3.2 Gen 2 port(s) (6 x Type-A)
    2x USB 2.0 port(s) (2 x Type-A)

    Front USB:Total 9 ports
    1x USB 3.2 Gen 2x2 connector(s) (suppport(s) USB Type-C)
    2x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
    2x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

  • Audio

    ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082, Impedance sense for front and rear headphone outputs, Supports: Jack-detection/ Multi-streaming/ Front Panel Jack-retasking, High quality 120 dB SNR stereo playback output and 113 dB SNR recording input, Supports up to 32-Bit/384 kHz playback

  • Audio (Contd.)

    Audio Features
    SupremeFX Shielding Technology, ESS SABRE9018Q2C DAC/AMP, Gold-plated audio jacks, Rear optical S/PDIF out port, Premium Japanese audio capacitors, Audio cover

  • Back Panel I/O Ports

    2x Thunderbolt 4 USB Type-C port(s), 6x USB 3.2 Gen 2 port(s) (6 x Type-A), 2x USB 2.0 port(s) (2 x Type-A) , 1x HDMI port, 1x ASUS Wi-Fi Module, 2x Intel I225-V 2.5Gb Ethernet, 5x Gold-plated audio jacks, 1x Optical S/PDIF out port, 1x BIOS FlashBack button, 1 x Clear CMOS button

  • Internal I/O Connectors

    2x Thunderbolt 4 port(s) (2x USB Type-C) with up to 5V/3A, 15W charging support

    Fan and Cooling related
    1x 4-pin CPU Fan header(s), 1x 4-pin CPU OPT Fan header(s), 1x 4-pin AIO Pump header(s), 3x 4-pin Chassis Fan header(s), 1x 4-pin H_AMP Fan header(s), 1x W_PUMP+ header(s), 1x 2-pin Water In header, 1x 2-pin Water Out header, 1x 3-pin Water Flow header

  • Internal I/O Connectors (Contd.)

    Power related
    1x 24-pin Main Power connector, 2x 8-pin +12V Power connector

    Storage related
    4x M.2 slots (Key M), 6x SATA 6Gb/s ports

    USB
    1x USB 3.2 Gen 2x2 connector (support(s) USB Type-C), 2x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports, 2x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

  • Internal I/O Connectors (Contd..)

    Miscellaneous
    3x AURA Addressable Gen 2 header(s), 1x AURA RGB header(s), 1x FlexKey button, 1x Front Panel Audio header (AAFP), 1x ReTry button, 1x Speaker header, 1x SPI TPM header (14-1pin), 1x Start button, 1x 10-1 pin System Panel header, 1x Thermal Sensor header

  • Special Features

    Extreme OC Kit
    FlexKey button, ReTry button, Start button

    Extreme Engine Digi+
    10K Black Metallic Capacitors, MicroFine Alloy Choke

    ASUS Q-Design
    Q-Code, Q-Connector, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot

    ASUS Thermal Solution
    M.2 heatsink backplate, M.2 heatsink, VRM heatsink design

  • Special Features (Contd.)

    ASUS EZ DIY
    BIOS FlashBack button, Clear CMOS button, ProCool II, Pre-mounted I/O shield, SafeSlot

    AURA Sync
    AURA RGB header(s), Addressable Gen 2 RGB header(s)

    ASUS HYDRANODE
    3 x Chassis fan support (CHA_FAN1P,CHA_FAN2P,CHA_FAN3P)

  • Software Features

    ROG Exclusive Software
    Mem Tweakit, RAMCache III, ROG CPU-Z, GameFirst VI, Sonic Studio III + Sonic Studio Virtual Mixer, Sonic Radar III, DTS Sound Unbound, Overwolf, BullGuard Internet Security (1-year full version)

    ASUS Exclusive Software
    Armoury Crate, AIDA64 Extreme (1 year full version), AURA Creator, AURA Sync, Two-Way AI Noise Cancelation

  • Software Features (Contd.)

    AI Suite 3
    5-Way Optimization with AI Overclocking, TPU, EPU , DIGI+ Power Control, Fan Xpert 4, Turbo app, EZ update, AI Charger, DAEMON Tools, MyASUS, WinRAR

    UEFI BIOS
    MemTest86, AI Overclocking Guide, ASUS EZ DIY, ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

  • BIOS

    256 Mb Flash ROM, UEFI AMI BIOS

  • Manageability

    WOL by PME, PXE

  • Operating System

    Windows 10 64-bit

  • Form Factor

    ATX

  • Dimensions

    12 x 9.6" (30.5 x 24.4cm)

  • UPC Code

    195553089364

About ASUS ROG Maximus XIII Hero

FEATURED REVIEWS

Great Features and Compatibility

By SwaggerNaughtz

Bought this around a year ago for a replacement motherboard and was supprised at the quality along with the warranty. Helped me get my Personal Computer up and running and offered some great bios utilization and features.

Everything you need and more!

By reaphavoc1

An excellent board. 3.0 + 4.0 nvme lanes. Duel ethernets. It's quality through and through. I've always used ASUS boards for all my builds over 30 years of doing so. Have never had an issue. Thanks ASUS

Intel Z590 ATX gaming motherboard with 14+2 power stages, PCIe 4.0, Onboard WiFi 6E (802.11ax), Dual Intel 2.5 Gb Ethernet, Quad M.2 with heatsinks and embedded backplates, Dual onboard Thunderbolt 4, USB 3.2 Gen 2x2 front-panel connector and Aura Sync RGB lighting. Intel Socket LGA 1200 for 11th Gen Intel Core processors and 10th Gen Intel Core, Pentium Gold and Celeron Processors

Intelligent Control
ASUS-exclusive software and firmware utilities that simplify setup and improve performance: AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation.

Robust Power Solution
14+2 teamed power stages rated for 90 Amps, ProCool II power connectors, MicroFine alloy chokes and 10K Japanese-made black metallic capacitors.

Optimized Thermal Design
Enlarged VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, quad M.2 heatsinks with embedded backplates and ROG Water-Cooling Zone.

High-performance Networking
Onboard WiFi 6E (802.11ax), dual Intel 2.5 Gb Ethernet and ASUS LANGaurd.

Fastest Gaming Connectivity
PCIe 4.0, quad M.2, USB 3.2 Gen 2x2 front-panel connector, dual USB Type-C ports with Thunderbolt 4 USB-C.

Industry-leading Gaming Audio
ROG SupremeFX ALC4082 with ESS ES9018Q2C DAC for high-fidelity audio.

Unmatched Personalization
ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers.

DIY-friendly Design
Pre-mounted I/O shield, BIOS FlashBack, Q-Code, FlexKey, Q-Connector, SafeSlot and Graphics Card Holder.

Renowned Software
Bundled 1-year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

ASUS ROG Maximus XIII Hero Features

  • Intelligent Control
  • Robust Power Solution
  • Optimized Thermal Design
  • High-performance Networking
  • Fastest Gaming Connectivity
  • Industry-leading Gaming Audio
  • Unmatched Personalization
  • DIY-friendly Design
  • Renowned Software

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Intelligent Control
  • Robust Power Solution
  • Optimized Thermal Design
  • High-performance Networking
  • Fastest Gaming Connectivity
  • Industry-leading Gaming Audio

What's in the box:

  • ROG Maximus XIII Hero Z590 LGA 1200 ATX Gaming Motherboard
  • ARGB RGB Extension Cable
  • RGB Extension Cable
  • 4x SATA 6Gb/s Cables
  • Wi-Fi Moving Antennas
  • M.2 SSD Screw Packages
  • Q-Connector
  • ROG Key Chain
  • ROG Logo Plate Stickers
  • ROG Graphics Card Holder
  • Support DVD
  • User Manual
  • ASUS 3 Year Limited Warranty
