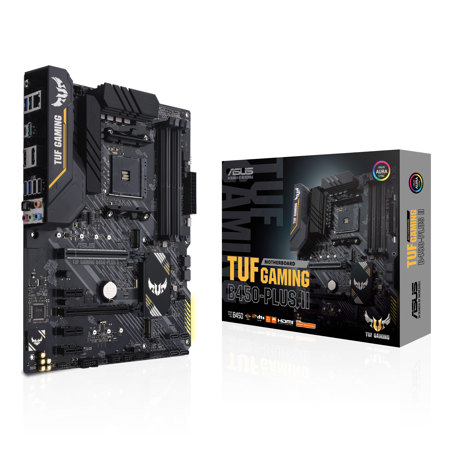

ASUS TUF GAMING B450-PLUS II AMD Socket AM4 ATX Gaming Motherboard

SKU: AS90MB1650M0

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ASUS TUF GAMING B450-PLUS II Specifications

  • CPU

    AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors

  • Chipset

    AMD B450

  • Memory

    3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
    4x DIMM, Max. 128GB, DDR4 4400(O.C)/3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
    Dual Channel Memory Architecture
    ECC Memory (ECC mode) support varies by CPU

  • Graphic

    Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
    1x DisplayPort 1.2
    1x HDMI 2.0b

  • Multi-GPU Support

    Supports AMD CrossFireX Technology

  • Expansion Slots

    3rd/2nd/1st Gen AMD Ryzen Processors:
    1x PCIe 3.0/2.0 x16 (x16 mode)
    2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors:
    1x PCIe 3.0/2.0 x16 (x8 mode)
    AMD Athlon with Radeon Vega Graphics Processors:
    1x PCIe 3.0/2.0 x16 (x4 mode)
    AMD B450 chipset:
    1x PCIe 2.0 x16 (max at x4 mode)
    3x PCIe 2.0 x1

  • Storage

    3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics:
    1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

    AMD Athlon with Radeon Vega Graphics Processors:
    1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)

  • Storage (Contd.)

    3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega
    Graphics Processors:
    2x SATA 6Gb/s port(s)
    Support Raid 0, 1, 10

    AMD B450 chipset:
    1x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE 2.0 x4)
    4x SATA 6Gb/s port(s)
    Support Raid 0, 1, 10

  • LAN

    Realtek L8200A
    TUF LANGuard

  • Audio

    Realtek ALC S1200A 8-Channel High Definition Audio CODEC

    Audio Feature:
    Exclusive DTS Custom for GAMING Headsets
    Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

  • Audio (Contd.)

    Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality

  • USB Ports

    Rear USB Port (Total 8):
    2x USB 3.2 Gen 2 port(s)(1 x USB Type-C)(1x Type-A +0 x )
    4x USB 3.2 Gen 1 port(s)(4x Type-A)
    2x USB 2.0 port(s)(2 x Type-A)

    Front USB Port (Total 6):
    2x USB 3.2 Gen 1 port(s)
    4x USB 2.0 port(s)

  • Special Features

    ASUS TUF Protection:
    ASUS SafeSlot: Protect your graphics card Investment
    ASUS Overvoltage Protection: World-class circuit-protecting power design
    ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    ASUS DIGI+ VRM: Precision control for stable power
    ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!

  • Special Features (Contd.)

    AURA:
    Aura Lighting Control
    Aura RGB Strip Headers

    ASUS Exclusive Features:
    AI Suite 3
    Ai Charger
    Turbo LAN
    PC Cleaner
    Armoury Crate
    BIOS FlashBack Button

    ASUS Quiet Thermal Solution:
    Stylish Fanless Design Heat-sink solution & MOS Heatsink
    ASUS Fan Xpert 4 Core

  • Special Features (Contd..)

    ASUS EZ DIY:
    ASUS CrashFree BIOS 3
    ASUS EZ Flash 3
    ASUS USB BIOS FlashBack
    ASUS UEFI BIOS EZ Mode

    ASUS Q-Design:
    ASUS Q-Slot
    ASUS Q-DIMM
    Armoury Crate

  • Software Features

    ASUS Exclusive Software:
    Armoury Crate:
    Aura Creator
    Aura Sync
    AI Noise-Canceling Microphone

    AI Suite 3:
    Performance And Power Saving Utility

    TurboV EVO
    EPU
    Digi+ VRM
    Fan Xpert 4 core:
    EZ update
    PC Cleaner

  • Software Features (Contd.)

    TUF GAMING CPU-Z
    AI Charger
    ASUS Turbo LAN
    DAEMON Tools
    DTS Custom for GAMING Headsets
    Norton Anti-virus software (Free Trial for 60 days)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY:
    ASUS CrashFree BIOS 3
    ASUS EZ Flash 3
    ASUS UEFI BIOS EZ Mode

  • ASUS Special Features

    ASUS TUF Protection:
    ASUS DIGI+ VRM
    ASUS Enhanced DRAM Overcurrent Protection
    ASUS ESD Guards
    TUF LANGuard
    ASUS Overvoltage Protection
    ASUS SafeSlot
    ASUS Stainless-Steel Back I/O

  • ASUS Special Features (Contd.)

    ASUS Q-Design:
    ASUS Q-DIMM
    ASUS Q-Slot

    ASUS Thermal Solution:
    Aluminum heatsink design

    ASUS EZ DIY:
    BIOS FlashBack button
    BIOS FlashBack LED

    AURA Sync:
    AURA RGB headers

  • Back I/O Ports

    1x DisplayPort
    1x HDMI
    1x LAN (RJ45) port(s)
    2x USB 3.2 Gen 2 (1x USB Type-C+1x Type-A)
    4x USB 3.2 Gen 1 Type-A
    2x USB 2.0
    5x Audio jack(s)
    1x BIOS FlashBack Button(s)

  • Internal I/O Ports

    1x CPU Fan connector(s) (1x 4 -pin)
    3x Chassis Fan connector(s) (3x 4 -pin)
    1x AIO_PUMP connector (1x 4 -pin)
    2x Aura RGB Strip Header
    1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
    2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

  • Internal I/O Ports (Contd.)

    1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 2.0 x 4 mode)
    1x SPI TPM header
    6x SATA 6Gb/s connector(s)
    1x 24-pin EATX Power connector(s)
    1x 8-pin ATX 12V Power connector(s)
    1x Front panel audio connector(s) (AAFP)
    1x System panel(s)
    1x Clear CMOS jumper(s)
    1x COM port header

  • BIOS

    256 Mb Flash ROM, UEFI AMI BIOS

  • Manageability

    WOL by PME, PXE

  • Operating System

    Windows 10 64-bit
    Windows 7 64-bit

  • Form Factor

    ATX Form Factor

  • Dimensions

    12.0 x 9.6" (30.5 x 24.4cm)

  • UPC Code

    192876957493

About ASUS TUF GAMING B450-PLUS II

Durable. Stable. Reliable.
TUF Gaming B450-PLUS II distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance - an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.

Rock-Solid Performance
With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory and storage, TUF Gaming B450-PLUS II is the perfect foundation for your next high-core-count battle rig.

Power Design

Driver & MOSFET - DrMOS
The onboard VRM of TUF Gaming B450-PLUS II utilizes 8+2 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 3rd Gen AMD Ryzen Processors demand.

Stack Cool 3+
2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures and provide more headroom to push CPUs beyond stock speeds.

System Stability

TUF Components

TUF Chokes
Certified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability.

TUF Capacitors
Proprietary capacitors provide up to 20% greater temperature tolerance and 5X-longer lifespan.

Controller - Digi+ VRM
The integrated Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.

Cooling

Cooler by design

VRM Heatsink
A large, high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation.

Thermal Pad
High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink.

Comprehensive Fan Controls
TUF Gaming B450-PLUS II features comprehensive fan controls that can be configured via Fan Xpert 4 utility or via the award-winning ASUS UEFI BIOS.

Multiple temperature sources
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or via the UEFI.

AiO water-cooling set
An integrated AiO system enables full control of PWM or DC water pumps, making it perfect for custom or self-contained cooling setups.

4-pin PWM/DC fan
All onboard chassis fan headers support auto-detection of PWM or DC fans.

Smart protection
A dedicated integrated circuit protects each fan header from over-temperature and overcurrent.

Connectivity

USB 3.2 Gen 2 Type-A & Type-C
Numerous USB ports support gaming rigs loaded with peripherals, including a USB Type-A and a Type-C connectors with fast USB 3.2 Gen 2 connectivity for compatible cases.

Thunderbolt 3 support
An integrated Thunderbolt 3 header supports up to 40 Gbps of aggregate interface bandwidth. One Thunderbolt 3 port can support up to six devices in a daisy-chain, and provide up to 100 watts of power to fast-charge devices.


Easy PC DIY
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want - even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.

TUF Gaming Alliance - Build with confidence
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.

TUF Protection

SafeSlot
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured via a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

ESD guards
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge - greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV.

Keyboards and Mouse Connectors
Additional on-circuit ESD transient-voltage-suppression.

VGA Protection
Additional on-circuit ESD TVS diodes to protect VGA output functionality.

USB Connectors
TVS diode for surface-mount and dual in-line package.

TUF LANGuard
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

DRAM overvoltage protection
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

Stainless-steel back I/O panel
TUF Gaming motherboards have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide to provide a 3X-longer lifespan versus traditional panels. With this protective feature, TUF Gaming motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.

Easy Configuration

BIOS FlashBack
BIOS FlashBack is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack port and press the button. Updates can even be performed without having memory or a CPU installed.

Armoury Crate
Armoury Crate is a new software utility designed to give you centralized control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for unified system lighting effects. You can also turn on the AI Noise-Canceling Microphone function for crystal-clear in-game voice communication. The software also provides control of settings for a select and growing number of products, including keyboard and mouse preferences as well as laptop overclocking and fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and news areas to help you stay in touch with the gaming community.


Immersive Gaming
TUF Gaming B450-PLUS II provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.

Networking

Exclusive Gigabit Ethernet
Experience ultra-fast gaming with the ASUS-exclusive Realtek L8200A Gigabit Ethernet. With performance and stability enhancements, the LAN is optimized for CPU-efficient, low-latency data transfers.

Turbo LAN - Network-Optimization Software for Customizable Packet Prioritization
Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, it allows you to configure application priority via an intuitive interface, and reduces network lag.

One Click Turbo
Adjust the network transmission priority by one click!

Auto Detect Game List
Turbo Lan will detect every game in system, and add in list automatically.

AI Noise-Canceling Microphone
AI Noise-Canceling Microphone software is exclusively featured on ASUS motherboards and supports 3.5 mm, USB, or Bluetooth headsets. The utility leverages a massive deep-learning database to preserve the sound of your voice while eliminating distracting keyboard clatter, mouse clicks, and other forms of environmental noise. And it only places a slight load on the CPU, ensuring minimal impact on gaming performance.

Gaming Audio

Signal-to-noise ratio - Pristine Audio
The unique audio codec designed in close collaboration with Realtek for TUF Gaming B550M series motherboards features an unprecedented 108 dB signal-to-noise ratio for the stereo line out and a 103dB SNR for the line in, providing pristine audio quality.

ASUS TUF GAMING B450-PLUS II Features

  • Comprehensive cooling: VRM heatsinks, PCH heatsink, Fan Xpert 4 core
  • Next-gen connectivity: USB 3.2 Gen 2 Type-A and Type-C support
  • Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
  • AI Noise-Canceling Microphone: Provides crystal-clear in-game voice communication
  • Aura Sync RGB Lighting: Synchronize LED lighting with a vast portfolio of compatible PC gear

Key Features

  • Comprehensive cooling: VRM heatsinks, PCH heatsink, Fan Xpert 4 core
  • Next-gen connectivity: USB 3.2 Gen 2 Type-A and Type-C support
  • AI Noise-Canceling Microphone: Provides crystal-clear in-game voice communication
  • Aura Sync RGB Lighting: Synchronize LED lighting with a vast portfolio of compatible PC gear

What's in the box:

  • TUF GAMING B450-PLUS II AMD Socket AM4 ATX Gaming Motherboard
  • 2x SATA 6Gb/s Cable
  • M.2 Screw Pack
  • Supporting DVD
  • TUF GAMING Sticker
  • TUF Certification Card
  • ASUS 3 Year Limited Warranty
