ASUS FX505 TUF Specifications

  • Material/Finish

    Lid: Sand-blasted Finish - Gun Metal
    Bezel: Texture-Plastic
    Inside: IMR-Plastic
    Bottom: Texture-Plastic

  • Processor

    AMD Ryzen 7-3750H Processor 2.3GHz (6M cache, up to 4.0GHz)

  • Discrete/Optimus

    Optimus

  • Graphic

    NVIDIA GeForce GTX 1650

  • Graphic Memory

    GDDR5 4GB

  • IGPU

    AMD VEGA Graphics

  • Panel Size

    15.6"

  • Resolution FHD

    1920x1080 16:9

  • Refresh Rate

    60Hz

  • Viewing Angle

    170/170

  • Panel Tech

    IPS-level

  • Brightness

    200nits

  • Contrast

    700:1

  • NTSC %

    45%

  • SRGB %

    62.50%

  • Adobe %

    47.34%

  • Anti glare

    Yes

  • Total System Memory

    DDR4 2400 8GB

  • Memory Slot

    2x

  • DIMM Memory

    DDR4 2400 8GB

  • Memory Max.

    32GB

  • System Storage Installed

    PCIE NVME 256G M.2 SSD
    SATA 1TB 5400RPM 2.5' HDD

  • M.2 slots

    1 (support either SATA and NVMe)

  • M.2 SSD Support List

    PCIE 128G M.2 SSD
    PCIE 256G M.2 SSD

  • LAN

    10/100/1000 Mbps

  • Wi-Fi/Bluetooth

    Wi-Fi 5(802.11ac)+Bluetooth 4.2 (Dual band)

  • I/O Ports

    1x Type A 2.0
    2x Type A 3.1 (Gen.1)
    1x 3.5mm combo audio jack

  • Display output

    1x HDMI 2.0

  • Webcam

    720p HD

  • Mic

    Built-in array microphone

  • Keyboard Type

    Illuminated Chiclet Keyboard RGB

  • Aura Sync

    No

  • Speakers

    2x2W speaker

  • Audio Tech

    DTS software

  • Operating System

    Windows 10 (64bit)

  • Security

    Kensington Lock

  • Battery

    48WHrs, 3S1P, 3-cell Li-ion

  • Power

    6.0
    150W AC Adapter
    Output: 20V DC, 7.5A, 150W
    Input: 100-240V AC, 50/60Hz universal

  • Dimension (W x D x H)

    14.17 x 10.31 x 0.98 - 1.02" (36.0 x 26.2 x 2.50 - 2.60cm)

  • Weight

    4.85 lbs (2.20Kg)

  • UPC Code

    192876341612

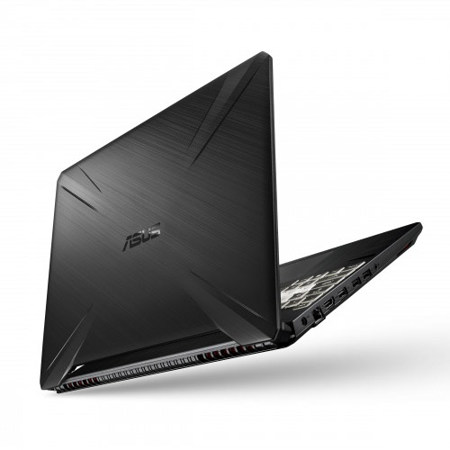

About ASUS FX505 TUF

Join Forces
Unite the latest AMD Ryzen processor and NVIDIA GeForce GTX graphics on an IPS-level NanoEdge display with the new ASUS TUF Gaming FX505, which delivers immersive, high-performance gaming at an affordable price. It's tested and certified to meet military-grade MIL-STD-810G standards, ensuring the toughness and durability you need to withstand the knocks and bumps of everyday work and play.

IPS-Level Nanoedge Display

Extreme Immersion on an Ultrafast Display
The new NanoEdge design has a slimmer-than-ever 6.5mm bezel for extremely engaging visuals in a much more compact package. ASUS TUF Gaming FX505 features an IPS-level panel for supersmooth gameplay with minimal motion blur. Wide-view technology ensures consistent colors when you're looking at the screen from extreme angles.

Game-Ready Performance

Focused Firepower to Take on Any Task
This compact gaming laptop punches well above its weight. The ASUS TUF Gaming FX505 is equipped with the latest GeForce GTX GPU for smooth gaming and live-streaming, plus an AMD Ryzen processor with quad cores and eight threads that make everyday multitasking and productivity quick and efficient. With the combined firepower of these processors, you're ready to take on any task inside and outside the gaming arena.

Turing Shaders
Featuring concurrent execution of floating point and integer operations, adaptive shading technology, and a new unified memory architecture with twice the cache of its predecessor, Turing shaders enable awesome performance increases in today's games.

ASUS TUF Gaming

Tougher than Standard
Infused with the spirit of The Ultimate Force (TUF), ASUS TUF Gaming FX505 has passed a series of rigorous military-grade MIL-STD-810G durability tests, successfully surviving varying conditions including solar radiation exposure, high altitude, and temperature extremes. It's certified to endure day-to-day use, from accidental knocks to sudden drops on a desk. Durable and stable, ASUS TUF Gaming FX505 has been pushed to the limit to ensure only the very best for gamers.

Design

Solid Build Quality
ASUS TUF Gaming FX505 has several stand-out designs that exude toughness and power. Its Gold Steel metal, and Stealth Black plastic covers feature a distinctive Radiating-X design with a matching sandblasted or brushed finish. The hexagonal design on the underside of the chassis provides additional structural rigidity, completing the laptop's modern and aggressive lines.

Hyperstrike Keyboard

Desktop-Inspired RGB-Backlit Keyboard
ASUS TUF Gaming FX505 has a keyboard that's optimized for gaming, featuring RGB backlighting across all zones that can be controlled via the TUF Aura Core panel so you can express your own unique style. Exclusive HyperStrike technology ensures more accurate typing and improved ergonomics thanks to a desktop-inspired layout with a highlighted WASD key group, broader space bar, isolated arrow keys, and recognizable gaps between the function keys. In addition, Overstroke technology registers keystrokes faster for precise and effortless control.

Thermal

Hypercool Technology Improves Durability
ASUS-exclusive HyperCool technology consists of the Anti-Dust Cooling (ADC) system and HyperFan to ensure exceptional cooling during gaming marathons. Cooling is also improved by the patented trapezoid-cut lid and intelligent parallel fan placement.

Audio

Immersive DTS Surround Sound
DTS Headphone: X technology delivers immersive, high-fidelity 7.1-channel virtual surround-sound for theater-quality audio, even when you're using a headset. It features optimized settings for games, sports, and movies, and has a built-in equalizer for additional fine-tuning.

Exclusive Software

Unified System Tuning and Personalization
TUF Gaming Armoury Crate puts all essential system and lighting control at your fingertips in a single utility. You can easily change settings for both and define up to four game profiles that automatically make adjustments when you launch your favorite titles. These options are just the beginning for what will become an even more versatile tool.

I/O Ports

I/O Ports Within Easy Reach
ASUS TUF Gaming FX505 features a host of I/O ports including a single USB 2.0 and two USB 3.1 Gen 1 Type-A ports for your gaming peripherals, as well as HDMI 2.0 to connect to an external display. All ports are situated on the left side of the laptop so there's nothing to interfere with right-handed mousing.

ASUS FX505 TUF Features

  • NVIDIA GeForce GTX 1650 GDDR5 4GB
  • AMD Ryzen 7-3750H Processor
  • 15.6" Panel Size Full HD (1920x1080) display
  • 8GB DDR4 2400MHz
  • PCIE NVME 256G M.2 SSD, SATA 1TB 5400RPM 2.5' HDD
  • Windows 10 Home Operating System

Key Features

  • NVIDIA GeForce GTX 1650 GDDR5 4GB
  • AMD Ryzen 7-3750H Processor
  • 15.6" Panel Size Full HD (1920x1080) display
  • 8GB DDR4 2400MHz
  • PCIE NVME 256G M.2 SSD, SATA 1TB 5400RPM 2.5' HDD
  • Windows 10 Home Operating System

What's in the box:

  • FX505 TUF 15.6" Full HD MIL-STD-810G Gaming Notebook Computer
  • User Guide
  • Power Adapter
  • ASUS 1 Year Limited Warranty
