Review Summary
400 Watt
350 Watt Continuous
115-230 Volts
2 Ohms / 4 Ohms / 8 Ohms
-3dB at 17Hz and 30kHz
Impedance 3.9m Ohms , input range 150mV -
Impedance 10kOhms, input range 300mV -
Impedance 22kOhms, input level 0dBu nominal
Impedance 1kOhms, level 0dBu Nominal
600 Ohms balanced, level 0dBu nominal
Impedance 22kOhms, level 0dBu nominal
Minimum impedance 2 Ohms
Bass +/-15dB at 45Hz Middle +/-15dB at 660Hz Treble +/-15dB at 7kHz shelving Slider 1 +/-15dB at 180Hz Slider 2 +/-15dB at 340Hz Slid
Impedance 22kOhms, level 0dBu nominal
Impedance 22kOhms, input level 0dBu Nominal
1x ECC83, 2x ECC82, 1x ECC 99
6x KT88 ( JJ REC.D)
14.25 x 24.01 x 11.81" (362 x 610 x 300mm)
77.16 lbs (35kg)
0094922759412

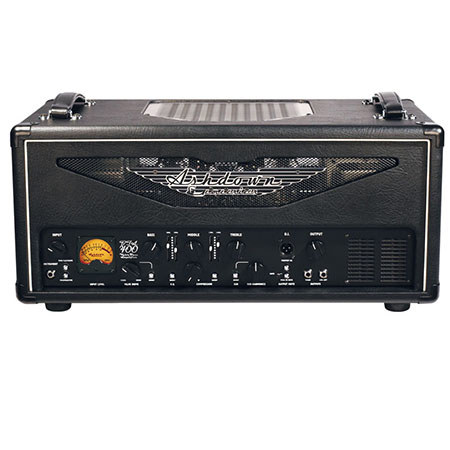

The Ashdown BTA 400 is a true contemporary bass masterpiece for tonal connoisseurs who crave the traditional punch of valve amplification with the added flexibility of a modern preamp. Combining the unmistakable tonal sophistication of the industry-standard ABM preamp with the sonic might of a fully-loaded 6x KT88 400W valve power amp, BTA400 is a stadium-ready powerhouse, currently rocking the world with players like Nate Mendel of the Foo Fighters. All the ABM features are EQ In/Out footswitching, variable Tube/Solid-State input stages, on-board compressor, Sub-Harmonic Generator, balanced DI Output with Pre/Post EQ switching, FX loop, Tuner output and more.
Variable Valve Drive - from zero to rock hero
Whatever tonal character you're seeking, the valve drive control can take you there. Engage it and set on zero for a pristine solid state preamp tone or wind it up to increase the level of true valve overdrive that gets blended into the signal, taking you from a hint of hair to a fat overdrive. The Drive level be preset and kicked in and out via footswitch, providing access to a huge range of clean, warm and overdriven tones.
Best EQ in the business
Imagine the simplicity of a traditional 3-band EQ but with the flexibility of a graphic equalizer that's what the acclaimed ABM preamp delivers and that's why it's as popular with bass-purists as it is with modern tone-shifters. Designed to be as simple to use as a 3-band EQ but offer outstanding tonal shaping options, the ABM EQ features familiar Bass, Middle and Treble rotary controls and two pairs of additional sliders. With the sliders set in the center position the three knobs function just like a classic 3-band EQ. But if you require more flexibility, the additional sliders allow you to fine tune the EQ in the regions the standard controls can't reach, providing a huge range of variation and allowing you to tailor the perfect sound for any gig. The EQ can be switched in via footswitch taking you from a flat fretless sound to your favorite EQ setting instantly.
One knob compressor
Kick it in and this simple to use, great sounding compressor delivers a powerful, even sound, assured to help your bass fill out any mix.
Sub-Harmonic Generator
The ABM Sub-Harmonic generator adds an octave below the notes being played bringing fullness to any bass part. The Sub level is independently controllable, letting you dial in anything from a subtle hint of deep bass to a full-on subterranean funk.
Flexible Footswitching
Paired with the FS-4 footswitch (not included) the ABM comes alive for onstage use, enabling on-the-fly tonal gearshifts. With foot switchable Valve Drive, Compression, EQ and Sub Harmonic Generator, ABM puts dozens of sound combinations at your feet, without so much as an effect pedal in sight.
Professional Connections
Not that you'd expect any less from any amp loaded with the ABM preamp section, BTA400 is loaded with connectivity. A Sub-Bass output to feed the desk or an additional amp, a tuner output, transparent FX loop and a Line Input for the connection of an external sampler or sound source. Output muting cuts the signal from the DI output but leaves the tuner output 'live', allowing the player to tune up in silence.
Classic Series cabs
Classic Series cabs have been developed to be the perfect partners to the range of valve heads, offering powerful performance and striking future-retro looks in 4x10", 4x12", 1x15", 6x10" and 8x10" configurations.
