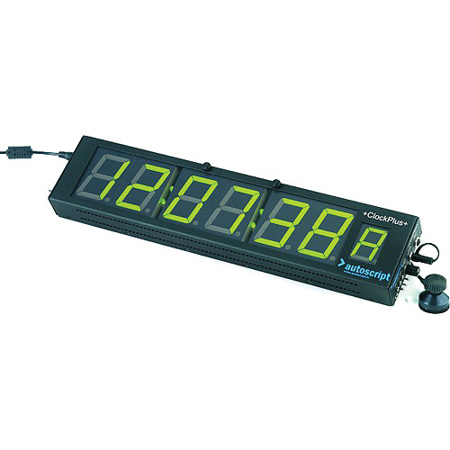

Autoscript ClockPlus LED SMPTE/EBU Timecode Display
See all Autoscript items

Autoscript ClockPlus LED SMPTE/EBU Timecode Display, HH:MM:SS A/P Display Format

SKU: ASCLOCKPLUS

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Autoscript ClockPlus Specifications

  • Display Format

    HH:MM:SS A/P

  • Size

    (HH:MM:SS):2.25"
    (A/P): 1.5"

  • Linear Time Code Input: Standard

    SMPTE 12M linear time code - 24, 25 or 30 Fps nominal

  • Linear Time Code Input: Impedance

    > 50kOhms, balanced

  • Linear Time Code Input: Connector

    3 pin male TiniQ-G miniature

  • Linear Time Code Input: XLR Level

    1V to 3.0 p-p

  • VITC Input: Standard

    PAL or NTSC

  • VITC Input: Impedance

    75 Ohms, balanced

  • VITC Input: Connector

    BNC socket

  • VITC Input: Level

    1V p-p

  • Tally Control Input: Type

    Logic signal, low = green, high (>2V) = red

  • Tally Control Input: Connector

    3.5mm mono jack socket, sleeve = ground, tip = signal

  • Opto Sensor Input: Type

    Light dependent resistor, 20k Ohms at 10 lux, 5K Ohms at 100 lux OR (grounding) contact closure

  • Electrical Data: Supply voltage

    12VDC

  • Electrical Data: Current

    1.6A (max)

  • Display Data: Format

    Seven segment LED display digits (HH:MM:SS A/P)

  • Display Data: Size (HH:MM:SS)

    2.25" / 57.15mm

  • Display Data: Size (A/P)

    1.5" / 38.1mm

  • Opto Sensor Data

    Sensor Light dependent resistor, 20kOhms at 10 Lux, 5KOhms at 100 lux
    High illumination: Red tally indication
    Low illumination: Green tally indication

  • DC Power Socket: Connector type

    2.1mm DC socket (ClockPlus)

  • Opto Sensor Socket: Connector type

    3.5mm mono jack socket (ClockPlus)

  • Operating temperature range

    5 to 40 deg. C / 41 to 104 deg. F

  • Storage temperature range

    -20 to 60 deg. C / -4 to 140 deg. F

  • Certification

    FCC, CE, RoHS

  • Dimensions (W x H x D)

    15.1 x 3.5 x 34.5" / 38.35 x 8.89 x 87.63cm

  • Weight

    1.76lbs / 0.8kg

About Autoscript ClockPlus

The ClockPlus is an LED SMPTE/EBU timecode display which has the added feature of changing color from green to red when a suitable Tally input is applied. When a timecode source is connected, the clock will instantly set itself to the input time. If the timecode source is removed the display will continue to update the time under control of an internal crystal oscillator. LED Six Digit On Air Time or Countdown display. Interfaces to Studio Time code, combined with Tally Light function. Tally's green to red. Includes 2 x Mini Jack cables and hardware to front mount to 12" - 19" prompters.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Autoscript ClockPlus LED SMPTE/EBU Timecode Display
  • Spacer Mounting Plate
  • Mini Jack to Mini Jack cable
  • Mini Jack to Centre Pin Power Cable
  • Autoscript 1 Year Warranty
