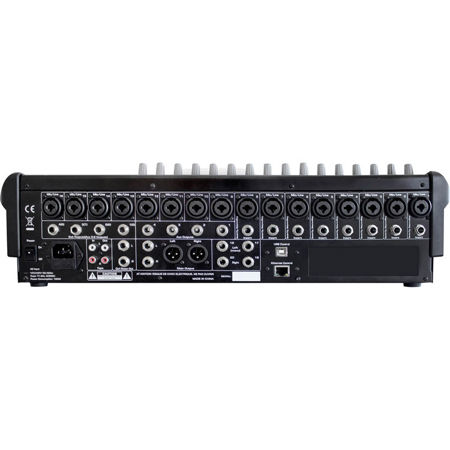

Ashly digiMIX24 24-Channel Digital Mixer with 7" Color-LCD Touchscreen
SKU: ASDIGIMIX24
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Ashly digiMIX24
The NEW digiMIX24 Digital Mixing Console gives you complete control over your performance space. Light and portable, it's easy to transport or store away-whether you're mixing live bands, a high school musical, a worship service or recording in a project studio-there are many applications where digiMIX24 feels right at home.
With its traditional analog feel, the Live Control Surface allows optimum control with real knobs and a live fader when selecting important functions, while offering conveniences of a responsive touchscreen, USB interfacing and companion Apple iPad App. Together, its the ideal mixing experience.
Live Motorized Fader & Intelligent Meter Bridge shows all signal levels
Select any channel to assign the Live Motorized Fader to an individual channel. The Intelligent Meter Bridge will not only display signal levels, but also all fader positions as shown above.
7" Touchscreen adds depth to control
Combined with the Live Control Surface, use the LCD touchscreen to navigate sub menus and toggle to various settings quickly and intuitively.
EZ-Mode for the non-technical user
Use the free Ashly digiMIX iPad App for remote control or in a fixed installation with EZ-Mode for users with no technical experience. Programmers can password-protect a very simple control interface that clients can easily understand and operate.
Add a Dante for network audio capability or a USB for multi-track recording
Use digiMIX24 as a command center to integrate live performance throughout an entire venue or facility. Add an optional Dante module to transmit and receive Dante network audio. Assign one or more channels of network audio to receive and integrate audio with any endpoint in the system. With a USB-32 interface connection, process 24-bit audio for recording with a computer.
Ashly digiMIX24 Features
- Precision Alps motorized 100mm fader
- 7" color LCD capacitive touchscreen for graphical viewing, assign, and setup
- EZ-Mode for secure, simplified touchscreen or iPad control with EZ-Mode mixer
- 16 low noise microphone preamps with dedicated trim controls, +48V phantom power, phase invert
- Gain-sharing automixer
- Assignable cross fader
- Stereo AUX sends for stereo monitors
- 4 dedicated line-level inputs
- Stereo tape/CD inputs and outputs on RCA connectors
- USB 2-track audio stereo record and playback
- TRS inserts on channels 1-8
- 4 AUX sends and 4 subgroup outputs, switchable to 8 AUX sends
- 6 DCA for fader or mute groups
- 2 internal stereo FX with fully editable reverbs, delay with tap tempo, tremolo, flange, and chorus
- Pan control
- High resolution delay (0.2mS) on every input, subgroup, AUX, or FX
- Expander/noise gate on every input and FX channel
- Compressor/limiter on every input, subgroup, output, and FX channel
- 4-band parametric/shelving EQ filters plus HPF/LPF on every input, subgroup, output, and FX channel
- 31-band Graphic EQ on Main, AUX, and Sub Outputs
- Stereo link for adjacent inputs, subgroups, and AUX outputs
- Solo/PFL on every Input, Output, Subgroup, AUX, or FX
- Stereo main outputs on XLR and phone jack with dedicated level control
- Headphone and control room outputs with dedicated level controls
- User presets for DSP channel, GEQ, FX, or scene settings, plus channel copy function
- 32-bit A/D and D/A converters, 32-bit DSP processing, 48kHz sampling rate
- Password security
- Software control using Windows, Mac, or iPad
- Internal 100-240VAC universal power supply
- Safety/compliance: cTUVus, FCC, RoHS
