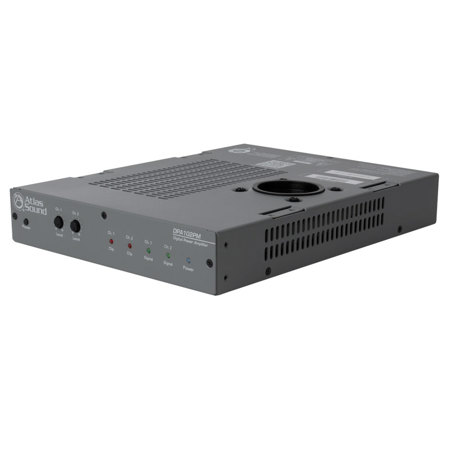

Atlas Sound DPA-102PM 2-Channel 2x 100-Watt 4 Ohm Networkable Power Amplifier with Pole Mount Capability

SKU: ASDPA102PM MFR: DPA-102PM
Earn VIP Reward Points

Key Features

  • Experience high power output with 100W per channel at 4 Ohms for robust audio performance.
  • Achieve pristine sound with a low THD, ensuring your amplifier delivers crystal-clear audio.
  • Enjoy a high signal-to-noise ratio, eliminating unwanted background noise for pure sound.
  • Versatile input options include RCA, balanced, & Euro Block for seamless connectivity.
  • Rely on the protection circuitry, guarding against thermal overload and short circuits.
  • Its compact form factor allows the power amplifier to fit seamlessly into any setup.
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Atlas Sound DPA-102PM Specifications

  • Output Power

    50 W per channel @ 8 Ohms
    100 W per channel @ 4 Ohms

  • Settings

    Factory Ship Settings: 2-ch 4 Ohms,
    Front panel levels active DSP set to flat & 0 dB

  • THD

    0.2% at rated output

  • Frequency Response

    20 Hz to 20 kHz, -3 dB (DSP filters engaged)

  • DSP

    Input level, output level, output limiter, 5-band parametric EQ per channel,
    high & low cut filters, delay 60 ms per channel, and matrix mixer

  • GUI

    Ethernet base, on-board web (No PC software for single unit monitoring or configuration)

  • Audio

    On Trigger Threshold: 5 mV Off, no signal sense, 30 minutes

  • Level Control

    Assignable: Front panel (removable knobs and security cover)
    GUI control (PC, iPhone, Android, password protected)
    Remote wired (10 kOhms based, separate return per channel)

  • Protection Circuits

    Thermal, short, limiter

  • Signal to Noise Ratio

    -100 dB below rated output (A-weighted)

  • Input Sensitivity

    RCA unbalanced 750 mV, balanced 750 mV, Euro Block PHX type 0.1" / 3.5 mm

  • Input Impedance

    RCA Unbalanced: 10 kOhms
    Balanced: 20 kOhms

  • Output Terminals

    Euro Block PHX Type: 0.20" (5.08mm)

  • Power Requirement

    100 to 240 VAC, 50/60 Hz

  • Power Consumption

    Standby Mode (Ethernet Active): 1 W, 22 mA, 3.14 BTU
    Idle Active: 12.5 W, 173 mA, 41 BTU
    Average Power: 4 Ohms (Audio signal, 1/3 power), 116 W, 395 BTU
    Maximum Power: 4 Ohms (Audio signal, peak), 384 W, 4.9 A, 1310 BTU

  • Dimensions (W x D x H)

    8.5 x 13.5 x 1.8" (215.9 x 342.9 x 44.5mm)

  • Weight

    4.9 lb (2.2kg)

  • UPC Code

    612079189380

About Atlas Sound DPA-102PM

A powerhouse of versatility and performance, the AtlasIED DPA-102PM 2-Channel Power Amplifier is engineered to meet the rigorous demands of high-quality sound reinforcement. This 2x 100-Watt amplifier is designed for 4 Ohm loads, ensuring robust audio output for a variety of professional applications.

The DPA-102PM stands out with its user-friendly design, allowing for immediate use as a traditional power amplifier with no need for programming, special setup, or network connectivity. This plug-and-play functionality makes it an ideal choice for quick and efficient audio installations.

For those seeking advanced control, the DPA-102PM is equipped with a comprehensive suite of DSP tools accessible via a web-enabled interface. Users can fine-tune their audio experience with precision using level controls, equalizers, limiters, high-pass and low-pass filters, delays, and summing options. These features provide unparalleled flexibility, catering to a wide range of audio environments from live events to fixed installations.

Security is a priority with the DPA-102PM. Once configured, the amplifier can be password-protected to prevent unauthorized adjustments, ensuring that your audio settings remain consistent and tamper-free. Additionally, the embedded control software allows integrators to disable front panel controls, maintaining the integrity of the audio system.

The DPA-102PM is not just about control but also about convenience. With its built-in web server, users can remotely manage DSP functions, monitor output levels, and check the status of the amplifier from any location on the network. This remote capability is a testament to the amplifier's adaptability in modern, networked audio systems.

AtlasIED's commitment to ease of use extends to system setup. The DPA-102PM is supported by DPA Discovery, a proprietary tool that simplifies network identification and configuration for both PC and Apple mobile devices. This ensures a seamless integration process for audio professionals.

Moreover, the DPA-102PM's pole mount capability adds to its installation versatility, allowing for strategic placement and optimal sound dispersion in various settings.

In summary, the AtlasIED DPA-102PM 2-Channel Networkable Power Amplifier is a sophisticated, high-performance solution that offers both simplicity for immediate use and advanced features for professional-grade audio control, all while maintaining a secure and easily manageable system.

Atlas Sound DPA-102PM Features

  • 2 x 100 Watt Class-D Amplifier Technology
  • No Computer Required to Use
  • Fully Configurable DSP Signal Processing
  • iPhone, iPad, & Android Controllable
  • Ethernet Network Connectivity
  • Network Auto-Discovery Software
  • Remote Monitoring of Status & Levels
  • 1RU by 1/2 Rack Wide
  • Convection Cooled
  • Pole Mounted Projector System. Through Chassis or Side Pole Mount
  • Audio Sense, Turn-On/Off
  • Balanced and Unbalanced Inputs
  • Assignable Level Controls (Security Password Protected) or by Front Panel Pots with Tamper Deterring Covers
  • Wired Remote Level Control with Optional WPD-VC10K
  • Rack Mountable Using Optional Kit (PA702-RMK)
  • Meets Energy Savings Requirements & Draws One Watt of Power in Standby Mode

Warranty Information

This product has a limited warranty of 36 months for parts and 12 months for labor.

Product Documents

User Manual

Key Features

  • Experience high power output with 100W per channel at 4 Ohms for robust audio performance.
  • Achieve pristine sound with a low THD, ensuring your amplifier delivers crystal-clear audio.
  • Enjoy a high signal-to-noise ratio, eliminating unwanted background noise for pure sound.
  • Versatile input options include RCA, balanced, & Euro Block for seamless connectivity.
  • Rely on the protection circuitry, guarding against thermal overload and short circuits.
  • Its compact form factor allows the power amplifier to fit seamlessly into any setup.

What's in the box:

  • DPA-102PM 2-Channel 2x 100-Watt 4 Ohm Networkable Power Amplifier with Pole Mount Capability
  • IEC Power Cord
  • Atlas Sound 3 Year Limited Warranty
