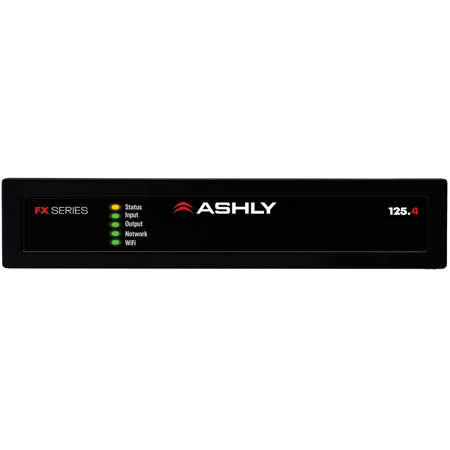

Ashly FX Series FX125.4 4-Channel 125W Compact Class D Power Amplifier with DSP

SKU: ASFX1254120V MFR: FX125.4-120V-U
Earn VIP Reward Points

Key Features

  • Experience superior audio clarity with this power amplifier's high signal-to-noise ratio.
  • This 4-channel power amplifier delivers 125W per channel, perfect for multi-zone audio.
  • Achieve pristine sound with <0.05% THD, ensuring your audio is clear and distortion-free.
  • Benefit from reliable thermal protection, keeping your power amplifier safe during operation.
  • Enjoy input/output flexibility, making this power amplifier ideal for diverse audio setups.
  • Its compact form factor allows for easy integration into any rack or audio setup.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ashly FX Series Specifications

  • Channels

    4x Lo-Z / 2x Hi-Z

  • Output power @ 4 Ohm/8 Ohm

    4x 125 W

  • Output power @ 25V

    4x 125 W

  • Output power @ 70V/100V

    2x 250 W

  • Powershare (up to)

    2x 250 W

  • Total System Power

    500 W

  • DSP

    4 Input x 2 or 4 Outputs: Input, Zone, Output & Speaker Processing, plus General settings

  • Networking

    Browser-based UI Software with Ethernet & Wi-Fi connectivity

  • Power Consumption

    150 W

  • Output Circuitry

    Class D - full bandwidth PWM modulator with ultra-low distortion

  • Output Voltage

    70 Vp / 140 Vpp (unloaded) // Bridged 140 Vp / 280 Vpp (unloaded)

  • Signal To Noise-Ratio

    > 106 dB (A-weighted, 20 Hz - 20 kHz, 8 Ohm load)

  • THD+N (typical)

    < 0.05% (20 Hz - 20 kHz, 8 Ohm load, 3 dB below rated power)

  • Frequency Response

    20 Hz - 20 kHz (+/- 0.5 dB, 8 Ohm load, 3 dB below rated power)

  • Protection Circuits

    Short circuit, DC, Under voltage, Temperature and Overload protection

  • Power Supply

    Universal mains switch mode power supply with Power Factor Correction (PFC) and standby converter

  • Operating temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Operating Voltage / Frequency

    Universal Mains, 100V - 240V, 50Hz - 60Hz

  • Standby Consumption

    < 0.5 W

  • Power Ratings

    1 % THD @ 120 Vac and 230 Vac

  • Dimensions

    1.75 x 8.66 x 11.65" (44.5 x 220 x 296mm)

  • Weight

    6.2 lbs (2.8kg)

  • UPC Code

    801128003634

About Ashly FX Series

After years of refining Class D design and providing user-friendly software, Ashly presents the FX Series FX125.4 4-Channel 125W Compact Class D Power Amplifier with DSP. This advanced piece of audio equipment takes amplification to new heights, combining power, versatility, and innovation in one compact package.

The FX Series FX125.4 is a networkable amplifier, offering both Ethernet and built-in Wi-Fi hotspot connectivity. This eliminates the need for a network router and allows for easy system configurations without the need for additional equipment like stand-alone DSP or speaker system processors.

This multi-purpose installation DSP-equipped amplifier is part of the FX series, known for its built-in Wireless-Access-Point (WAP) for simple connection and configuration via Wi-Fi. It also features an intuitive web-based software user interface. The FX125.4 comes in two configurations: 1/2 Rack Units (RU) for compact spaces and 2 RU for larger systems, making it a versatile choice for various audio setups.

Underneath its sleek exterior, the FX Series FX125.4 boasts a powerful DSP engine that can be tailored to a wide array of tasks. It offers comprehensive input, zone, output, and speaker processing, making it capable of handling diverse applications such as multi-zone music distribution for retail and restaurants, noise masking for offices and medical facilities, and media playback for hotel lobbies, retail, and museum kiosks.

The FX DSP engine provides a rich selection of functions for optimizing your system, including status display, level control and metering for Zones A-D, gain/trim, sensitivity, source select, mono/stereo, level control & metering, GPIO assignment, compressor for Zones A-D, and more.

The FX Series FX125.4 also features an intuitive software user interface that offers an easy-to-navigate workflow and quick access to advanced functions. It allows you to create, save, and load speaker presets to accommodate virtually any loudspeaker, making it a versatile choice for different zones or satellites and subs in a bar or auditorium.

The FX Series FX125.4 offers wireless access, allowing you to view and control the amplifier from virtually any PC, tablet, or smartphone. Its browser-based network interface also makes remote service and troubleshooting easier, as a technician can log in with remote access from their device without needing to download or install any software.

The FX Series FX125.4 also offers flexible amp modes, with switchable Low Z (4/8 Ohms) or Hi Z (25/70/100V) that can be selected in software. This allows you to mix and match speaker types as needed. The amplifier also offers convenient power-sharing technology that balances power between channels to meet different load requirements.

In conclusion, the FX Series FX125.4 4-Channel 125W Compact Class D Power Amplifier with DSP is a powerful, versatile, and innovative solution for your audio needs, offering advanced features and functionality in a compact and user-friendly package.

Ashly FX Series Features

  • Low (4/8 Ohm) or Hi Impedance (70/100V) operation, selectable in software
  • Balanced Mic/Line inputs on removable Euroblock connectors, plus unbalanced RCA inputs
  • 2-channel SPDIF Digital IO
  • Front panel status LEDs for amp, Input, output & network
  • Networkable via Ethernet or built-in Wi-Fi
  • Built-in advanced DSP on all inputs & outputs, including: Sensitivity, Routing, Gain, PEQ, Compressor, Limiter, FIR Filters, X-Over, Polarity & Delay
  • Browser-based UI accessed via PC or mobile device. No software to install
  • Auto/Manual Power Saver Mode (sleep/standby), adjustable in Software
  • Customized Speaker Presets made be created, saved & loaded for each output channel
  • Addressable GPIO, Standby/Mute & VC remote ports. VC assignable per channel via software
  • Highly efficient Class D and lightweight

Warranty Information

This product has a limited warranty of 60 months for parts and 60 months for labor.

Product Documents

User Manual

Key Features

  • Experience superior audio clarity with this power amplifier's high signal-to-noise ratio.
  • This 4-channel power amplifier delivers 125W per channel, perfect for multi-zone audio.
  • Achieve pristine sound with <0.05% THD, ensuring your audio is clear and distortion-free.
  • Benefit from reliable thermal protection, keeping your power amplifier safe during operation.
  • Enjoy input/output flexibility, making this power amplifier ideal for diverse audio setups.
  • Its compact form factor allows for easy integration into any rack or audio setup.

What's in the box:

  • Ashly FX Series FX125.4 4-Channel 125W Compact Class D Power Amplifier
  • IEC Power Cord
  • 2x 6-Pin Input Block Connectors
  • 8-Pin GPIO Block Connector
  • 2x 4-Pin Speaker Output Block Connector
  • 4x Adhesive Rubber Feet
  • Ashly 5 Year Limited Warranty
