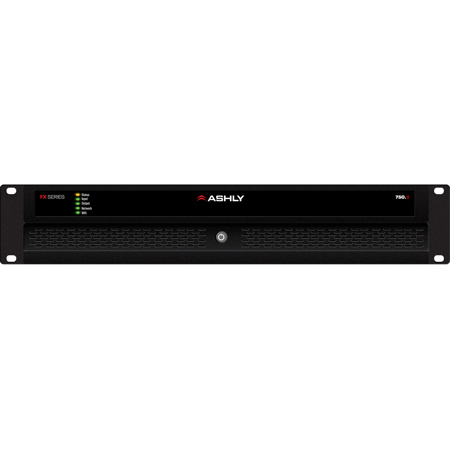

Ashly FX Series FX750.2 2-Channel 750W Class D Power Amplifier with DSP

The FX Series FX750.2 2-Channel 750W Class D Power Amplifier with DSP is a state-of-the-art audio device, designed to deliver superior sound quality and performance. This compact, Class D amplifier is the result of Ashly's years of expertise in creating user-friendly software and the successful implementation of the FA Series design.

The FX750.2 amplifier is equipped with a newly incorporated DSP engine and software UI, taking sound amplification to unprecedented heights. It is networkable via Ethernet for a wired LAN connection, or directly through its built-in Wi-Fi hotspot, eliminating the need for a network router. This feature-rich amplifier allows for system configurations that do not require additional equipment like stand-alone DSP or speaker system processors, offering a comprehensive solution in a single, space-saving unit.

The FX Series is a versatile range of multi-purpose installation DSP-equipped amplifiers. The FX750.2 model features a built-in Wireless-Access-Point (WAP) for effortless connection and configuration via Wi-Fi, as well as an intuitive web-based software UI. It is available in two configurations: 1/2 Rack Units (RU) for fitting into compact spaces, and the 2 RU FX 500.2 & FX500.4 for larger, high-powered applications. Despite their power levels, all FX models are lightweight, with the 2,000W FX 500.4 weighing only 16.5 lbs.

Under the hood, the FX Series boasts a powerful DSP engine that can be configured to suit a wide array of tasks, eliminating the need for additional equipment. It offers comprehensive input processing, zone processing, output processing, speaker processing, and device settings. This makes the FX Series capable of handling a variety of applications, such as multi-zone music distribution for retail, restaurant/bar, noise masking for offices and medical facilities, media playback for hotel lobbies, retail & museum kiosks, and mobile sound.

The FX DSP engine provides a rich selection of functions for optimizing your system. It offers a user-friendly software interface that provides an intuitive workflow and easy access to even the most advanced functions. An added feature is the ability to create, save, and load speaker presets to accommodate virtually any loudspeaker.

The FX750.2 amplifier offers wireless access, allowing you to control the device from virtually any PC, tablet, or smartphone, regardless of the operating system. No software installation is required; simply connect using the Ethernet port or built-in Wi-Fi.

The FX Series also offers flexible amp modes, with switchable Low Z (4/8 Ohms) or Hi Z (25/70/100V) that can be selected in software, allowing you to mix and match speaker types as needed. Each channel of the FX Series can operate at Low Z mode or be bridged for 70/100V constant Voltage output by selecting the appropriate Output Mode in the DSP software on each channel.

In conclusion, the FX Series FX750.2 2-Channel 750W Class D Power Amplifier with DSP is a versatile, high-performance audio device that offers superior sound quality, user-friendly features, and flexible configurations, making it an ideal choice for a wide range of applications.
