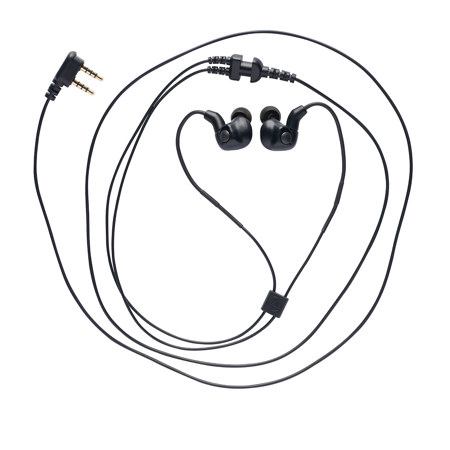

ASI Audio 3DME Active Ambient In Ear Bluetooth Monitor System

The ASI Audio 3DME. Hear incredible.
With the ASI Audio 3DME, you can enhance, control, and fine tune true 3D ambient audio into a personal monitor mix in any live environment.

Enhances sound
Embedded binaural mics capture full frequency and dynamic natural ambience with accurate 3D directionality. Full-range drivers give reference-quality sound without crossover distortion.

Enhances hearing health
Rapid sound limiting keeps your 3DMEs at healthy sound levels and three sizes of zero-fatigue eartips ensure a tight seal to reduce harmful stage loudness.

Enhances control
The ASI Audio app lets you create custom settings for each ear, with EQ and the levels of room ambience for an individualized monitor mix. Fine tune your mix during rehearsal or soundcheck, then go play!

Embedded binaural mics, a bodypack, the app, and an audiologist's magic.
3D active-ambient technology was conceived by renowned audiologist Dr. Michael Santucci of Sensaphonics for its legendary 3D AARO IEMs, used by touring pros around the world. The magic comes from tiny embedded binaural mics that bring room ambience to your monitor mix as a discrete signal while enhancing sound quality and protecting from excessive sound levels. Now this same technology is available in the new 3DME system controlled by the ASI Audio app.

Plays well with others.
The 3DME is particularly effective in acoustic and orchestral performance environments as well as amplified setups. The ASI Audio app lets you personally tune the amount of audio enhancement, levels, ambience, and equalization. Set it during rehearsal to the sound of the hall, then leave your phone or tablet behind.

Active-Ambient Technology
Controlled 3D ambience with full earphone isolation

Embedded binaural microphones
Full frequency and dynamic range for natural ambience with accurate 3D directionality

Full range drivers
Reference-quality sound without crossover distortion

Eartips for maximum isolation
Three sizes of zero-fatigue eartips

Bodypack
Wired to IEMs to combine monitor mix with ambient sound

Compact
Measures 64mm x 54mm x 25.5mm (2.12 in. x 2.5 in. x 1.004 in.)

Patented active signal processing
Distortion-free ambience capture up to 135 dB-SPL

Tactile control
Programmable ambient up/down buttons

Rapid limiting
Clean limiting of clipping-level signals sensed at multiple circuit points

Power to last
• Rechargeable Li-Ion battery via USB lasts up to 7 hours
• LED power indicator, charging status, USB power

ASI AUDIO App
Connects via USB to bodypack for easy setup and tuning with multiple stored settings

Selectable ambience level
Left, right can be adjusted together or separately

Selectable sound limiter function
Set left and right channels independently or link them to limit loudness

Multi-band EQ
Left, right adjusted together or separately
