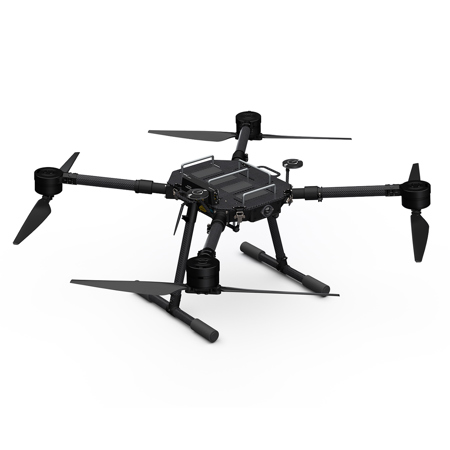

Arcsky X55 V2 Heavy Lift Industrial Drone Standard Package

SKU: ASK0001 MFR: 0001
Earn VIP Reward Points

Key Features

  • Soar for up to 45 minutes with this industrial drone, maximizing your project's flight time.
  • The Arcsky X55 V2 drone boasts impressive flight stability, even in challenging conditions.
  • Equipped with RTK-Capable GPS, this drone ensures precise navigation and accurate data collection.
  • Carry payloads up to 17 lbs with ease, perfect for heavy-duty industrial applications.
  • This heavy lift drone is ready for versatile use with external video & power options.
  • Operate confidently in temperatures from -4°F to 113°F, expanding your drone's usability.
See More Product Details
Special Order Item?Estimated to Ship: 09/13/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Arcsky X55 V2 Specifications

General

General

Jump to...
  • Number of Rotors

    4

  • Configuration

    Drone

  • FAA Registration (Non-Commercial Usage)

    Required

  • Kit Style

    Base

  • Model

    X55 V2

Aircraft

Jump to...
  • Color

    Black

  • Maximum Flight Time

    With Battery Module: Up to 45mins

  • Takeoff Weight

    55 lbs (24.94kg)

  • Max Wind Speed Resistance

    12m/s

  • Global Navigation Satellite System

    Dual Here 4
    RTK-Capable GPS

  • Operating Temperature

    -4 Degree F to 113 Degree F (-20 Degree C to 45 Degree C)

Battery

Jump to...
  • Capacity

    16000 mAh

  • Voltage

    44.4V

  • Battery Material

    Lithium ion

  • Energy

    710.4 Wh

  • Battery Quantity

    2

Remote Controller

Jump to...
  • Remote Controller

    Herelink Controller

Physical

Jump to...
  • Dimensions

    Unfolded: 78.74 x 24.60" (200 x 62.5cm)
    Folded: 26.37 x 24.6" (67 x 62.5cm)

  • Weight

    18.5 lbs (8.39kg)

  • Max Speed

    40mph (64.37 km/h)

  • Payload

    17 lbs (8kg)

  • Operating Voltage

    12S (44.4V)

  • Ingress Protection

    X3

  • Propulsion

    Equivalent KV: 100
    Maximum Thrust: 123 lbs (55.79kg)
    Propeller: 30x10
    Maximum RPM: 3600

  • Flight Controller

    Autopilot: Cube Orange Plus
    Supported Radios: Herelink, Futaba, Frsky and more
    Default Flight Modes: Altitude Hold, Loiter, Auto, Return To Launch

  • Misc

    Payload Rail:
    0.47"(12mm) Outer Diameter
    5.86" (149mm) Center to Center

    External Video: HDMI, Ethernet
    External Power: 5V, 12V & 48V
    FPV Video Feed: High Definition FPV (1080P)
    External COM: SBus, Serial, CAN, PWM
    NDAA Compliance: NDAA compliant version available

Models
Arcsky X55 V2 Heavy Lift Industrial Drone Standard Package
$19,600.00

Special Order Item

This item is typically shipped to you directly from Manufacturer within 4-6 Weeks. Delivery is subject to availability.

Skydio X10 Patrol-LED DFR Kit w/Cellular 5G, IR Light, VT300-Z & NightSense

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

Skydio X10 Drone w/Cellular 5G, Visible Light Navigation Camera & VT300-Z Sensor

Ships from Manufacturer

Usually ships within 8-10 Weeks. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

Features-Camera Included, IP Rated, Thermal CameraCamera Included, IP Rated, Thermal Camera
Kit StyleBaseBaseBase
ConfigurationDrone Kit OnlyDrone with CameraDrone with Camera
Video Resolution-4K4K
Camera Included-Thermal CameraThermal Camera
Camera Still Resolution-0.3 MP, 50 MP, 64 MP0.3 MP, 50 MP, 64 MP
Drone Type-QuadcoptersQuadcopters
Maximum Flight Time45 min.40 min.40 min.

About Arcsky X55 V2

The Truly Modular Design
Swap between the Hybrid Module and the Battery Module in a matter of seconds. No tools required.

Hybrid Module
Hybrid power technology offers extended range, longer flight time, reduced down-time, and nearly continuous operation. (Sold Separately).

Electronic Fuel Injection
No tuning required. Consistent performance regardless of temperature or elevation changes.

3-Hour Flight Time
Up to 3 hours of flight time, depending on payload. Fully maximize your workflow.

Fast-Refill
Back in operation with just a quick refill (91 octane gasoline + 2 stroke oil).

Engineered for Robustness

Exceptional Flight Time
Our custom power delivery and control systems work together to keep the Hybrid Module running optimally at all times, while the backup battery provides in-flight power redundancy.

Battery Module
A heavy lift drone without compromise! The Battery Module option provides a powerful solution for carrying heavy payloads while maintaining class-leading long flight times. Adjustable rails to support a wide variety of battery packs.

The New Industry Standard
The heavy-lift drone you can rely on. The X55 offers unmatched versatility, specifically engineered for commercial applications.

Easy Payload Integration
Master payload connector with 5V, 12V, 48V power, and Serial, CAN, PWM interfaces.

Standard 12mm Rail System
Industry-standard 12mm rail system easily mounts most payloads.

Auxiliary Communication Port
Additional communication ports for added flexibility (PWM, SBus, CAN, Serial).

Top-Bottom Payload Mounting
Bottom mount battery option frees up the top platform for mounting. (Bottom-mount battery tray sold separately).

Remote ID Built-In
Compliant with FAA regulations and pre-configured for operation.

All In One Controller
The X55 controller has a range of up to 20km, and includes mission planning software for automating flights and data collection.

• Plan an automated mission through the controller
• Video feed and telemetry data of the flight in real time

Built to Last
The X55 is the result of hundreds of hours of testing and iteration. Robustness and reliability are built-in.

Mechanical and Electrical Testing
Load testing beyond rated specifications, electrical load testing.

Environmental Testing
Ingress protection, maximum internal temperature, cold and hot weather testing.

Generator Testing
High load and endurance testing, tuning for optimal responsiveness and efficiency.

Applications

Inspection
Inspection over a large area is often restricted by limited flight time. The Hybrid Module allows you to extend flight time up to several hours.

Surveying & Mapping
Both heavy lift and long endurance capabilities. You can carry anything from a simple lightweight package to heavy multi-sensor setups.

Public Safety
The weatherproof design, extended flight time and robust communication link ensures that the X55 is ready for operation 24/7.

Arcsky X55 V2 Features

  • Modular power sources
  • Weatherproof design
  • 55 lbs Maximum take-off weight (MTOW)
  • Long-range transmission system up to 20km (12 miles)
  • Industry-standard 12mm rail system easily mounts most payloads
  • Master payload connector with 5V, 12V, 48V power, and Serial, CAN, PWM interfaces
  • Auxiliary Communication Port- integrate directly with gimbals and other accessories
  • Accessory Power - allows you to power your payload directly from the aircraft

Warranty Information

This product has a limited warranty of 2 months.

Key Features

  • Soar for up to 45 minutes with this industrial drone, maximizing your project's flight time.
  • The Arcsky X55 V2 drone boasts impressive flight stability, even in challenging conditions.
  • Equipped with RTK-Capable GPS, this drone ensures precise navigation and accurate data collection.
  • Carry payloads up to 17 lbs with ease, perfect for heavy-duty industrial applications.
  • This heavy lift drone is ready for versatile use with external video & power options.
  • Operate confidently in temperatures from -4°F to 113°F, expanding your drone's usability.

What's in the box:

  • Arcsky X55 V2 Heavy Lift Industrial Drone
  • Battery Module (Batteries Not Included)
  • Herelink Controller
  • Arcsky 2 Month Limited Warranty
