ASUS ZenScreen Ink MB14AHD Specifications

Display

Display

Jump to...
  • Panel Size

    14" (355.6mm)

  • Aspect Ratio

    16:9

  • Display Viewing Area (H x V)

    12.17 x 6.85" (309.37 x 174.02mm)

  • Display Surface

    Glare

  • Backlight Type

    LED

  • Panel Type

    IPS

  • Viewing Angle (CR>=10, H/V)

    170 Degree / 170 Degree

  • Pixel Pitch

    0.161mm

  • Resolution

    1920x1080

  • Brightness (Typ.)

    220 cd/sq.m

  • Contrast Ratio (Typ.)

    800:1

  • Display Colors

    262K

  • Response Time

    5ms (GTG)

  • Refresh Rate (Max)

    60Hz

  • Touch

    PCT + MPP2.0 Active Pen

  • Protection Glass

    Yes

  • Flicker-free

    Yes

Video Feature

Jump to...
  • Trace Free Technology

    Yes

  • SPLENDID Technology

    Yes

  • Color Temp. Selection

    Yes (4 modes)

  • GamePlus

    Yes

  • QuickFit

    Yes

  • HDCP

    Yes, 1.4

  • DisplayWidget

    Yes

  • Low Blue Light

    Yes

Audio Feature

Jump to...
  • Speaker

    No

I/O Ports

Jump to...
  • USB-C

    2x (DP Alt Mode)

  • Micro HDMI

    1x

  • Earphone Jack

    Yes

Signal Frequency

Jump to...
  • Digital Signal Frequency

    HDMI:24Khz-83KHz
    USB-C: 83KHz

Power Consumption

Jump to...
  • Power Consumption

    8.21 W

  • Power Saving Mode

    <0.5W

  • Power Off Mode

    <0.3W

  • Voltage

    100-240V, 50/60Hz

Mechanical Design

Jump to...
  • Height Adjustment

    No

  • 1/4" Tripod Socket

    Yes

Certification

Jump to...
  • Certification

    TUV Flicker-free
    TUV Low Blue Light

Physical

Jump to...
  • Dimensions (W x H x D)

    Without Stand: 12.76 x 7.92 x 0.49" (324.2 x 201.2 x 12.5mm)

  • Weight

    Without Stand: 30.68 oz (870g)

  • UPC Code

    195553550864

About ASUS ZenScreen Ink MB14AHD

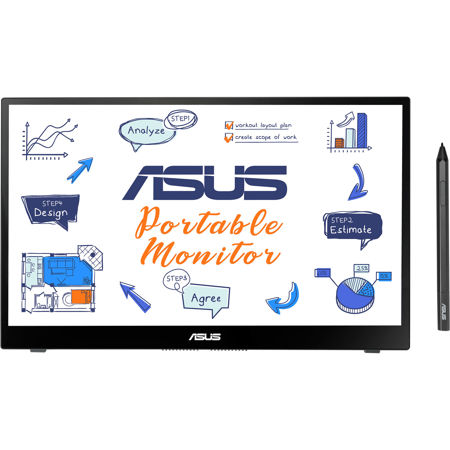

ASUS ZenScreen Ink MB14AHD Portable Monitor

Productivity at the tip of your stylus
ASUS ZenScreen Ink MB14AHD is a 14-inch IPS FHD portable monitor with 10-point touch functionality and ASUS Pen (SA201H) that allows users to write, draw anytime and anywhere. The included ASUS Pen features MPP 2.0 and 4096 pressure level for precise and lag-free writing and drawing experiences. It even features an integrated stepless kickstand, enabling ZenScreen Ink to be used in almost any position.

The ultimate portable touchscreen and pen combination
With the MPP 2.0-compliant ASUS Pen, 10-point touch functionality and portable design, ZenScreen Ink is the perfect companion for taking notes, drawing or even signing documents - anywhere, anytime. Use it as an extended display to work more efficiently on the go, or simply kick back for hands-free tasks.

ASUS Pen - Take note of every creative idea
ASUS Pen is the perfect accessory for ZenScreen Ink, empowering you to write, draw or annotate in any supported app. It features Microsoft Pen Protocol (MPP) 2.0 technology and 4096-level sensitivity for low latency and fast response, enabling smooth, natural writing experiences. With built-in magnets securing it to the top of the monitor, and lasting up to a year on a single battery charge, ASUS Pen is ready to use whenever and wherever you want.

• 4096 Pressure level
• 14-450 Pen tip force

Compatible software
ZenScreen Ink is designed for productivity and is fully compatible with numerous writing software and other tools including Microsoft Windows Ink, Whiteboard and OneNote.

Tap into productivity
With its interactive 10-point touchscreen, ZenScreen Ink offers highly-accurate, responsive and seamless touch experiences, enabling you to edit documents, draw on slides or play games with your fingertips. It is Windows 10/11 compatible, allowing you to work smarter and more efficiently.

Flexible viewing positions
The built-in stepless kickstand supports both landscape and portrait modes. It offers up to 150 Degree of hinge movement, so it's easy to use and flexible for all kinds of touch or writing scenarios. There's also an integrated tripod socket, enabling ZenScreen Ink to be elevated and oriented into any position.

• Ergo kick stand

Automatic screen orientation
When connected to a Windows PC, the ASUS DisplayWidget Lite tool enables ZenScreen Ink to sense its orientation and automatically switches the display between landscape and portrait modes. Landscape mode is ideal for presentations and spreadsheets, while portrait style provides the perfect long view for documents, books or websites.

Rich connectivity
ZenScreen Ink includes a Micro HDMI port and two USB-C ports with DisplayPort Alt Mode for quick connections to compatible devices. The USB-C ports can also be used for power input.

• Micro HDMI x1
• USB-C x2 (with DisplayPort Alt Mode and power input)
• Headphone jack x1

Protect your eyes with ASUS Eye Care technology

ASUS Blue Light Filter
The TUV Rheinland-certified ASUS Blue Light Filter protects you from harmful blue light. It's easy to access, intuitive and flexible with seamless adjustment (0 to Maximum) via the OSD menu. ASUS displays has undergone stringent performance tests and has been certified by TUV Rheinland laboratories, a global provider of technical, safety, and certification services.

ASUS Flicker Free technology
TUV Rheinland-certified ASUS Flicker Free technology eliminates flicker, ensuring comfortable viewing experiences. This technology helps minimize eyestrain and other ailments typically associated with extended hours of viewing.

ASUS ZenScreen Ink MB14AHD Features

  • 14" FHD (1920 x 1080) IPS portable monitor with 10-point touch and active stylus support
  • MPP 2.0 stylus with 4096-level pressure sensitivity and low latency for precise and exceptional writing experiences
  • Rich connectivity with two USB-C (DP Alt mode) and micro HDMI
  • Integrated stepless kickstand offers up to 150 Degree of hinge movement in both landscape and portrait orientation to suit different scenarios
  • Built-in 1/4"-threaded socket for compatibility with a standard tripod

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • 14" FHD (1920 x 1080) IPS portable monitor with 10-point touch and active stylus support
  • MPP 2.0 stylus with 4096-level pressure sensitivity & low latency for precise writing experiences
  • Rich connectivity with two USB-C (DP Alt mode) and micro HDMI
  • Integrated kickstand offers up to 150 Degree of hinge movement in landscape & portrait orientation
  • Built-in 1/4"-threaded socket for compatibility with a standard tripod

What's in the box:

  • ASUS ZenScreen Ink MB14AHD 14" 16:9 Full HD Touchscreen Portable USB-C IPS LED Monitor
  • Stylus Pen (MPP2.0)
  • Micro HDMI to HDMI Cable
  • Power Adapter
  • Quick Start Guide
  • USB Type-C to A Adapter
  • USB-C Cable
  • USB-C to A Cable
  • ZenScreen Sleeve
  • ASUS 3 Year Limited Warranty
