What does the single USB cable connectivity mean for the ASUS ZenScreen MB166B?

The single USB cable connectivity means that the ZenScreen MB166B requires only one USB cable to transmit the video signal and power the monitor. This simplifies the setup process and reduces cable clutter.

What is the purpose of the 1/4'-threaded hole at the back of the ZenScreen MB166B?

The 1/4'-threaded hole at the back of the ZenScreen MB166B allows you to mount the monitor on a standard tripod or table mount. This provides flexibility and comfort in setting up your workspace.

How does the automatic orientation detection work on the ASUS ZenScreen MB166B?

The ASUS ZenScreen MB166B uses ASUS DisplayWidget software to automatically detect its orientation and switch between landscape and portrait modes. This feature is activated when the monitor is connected to your laptop.

What benefits does the Full HD IPS panel offer on the ZenScreen MB166B?

The Full HD IPS panel on the ZenScreen MB166B delivers stunning, lifelike visuals with a resolution of 1920 x 1080. It also provides wide 178-degree viewing angles, ensuring consistent color and contrast levels even when viewed from off-center positions.

Can the ASUS ZenScreen MB166B be used with mobile devices?

Yes, the ASUS ZenScreen MB166B can be used with a variety of devices, including laptops, desktops, and certain mobile devices that support USB-C connectivity.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

ASUS ZenScreen MB166B Specifications

Display

Display

Jump to...
  • Panel Size

    15.6" (396.24mm)

  • Aspect Ratio

    16:9

  • Display Viewing Area (H x V)

    13.54 x 7.62" (344.16 x 193.59mm)

  • Display Surface

    Non-Glare

  • Backlight Type

    LED

  • Panel Type

    IPS

  • Viewing Angle (CR>=10, H/V)

    178 Degree / 178 Degree

  • Pixel Pitch

    0.179mm

  • Resolution

    1920x1080

  • Brightness (Typ.)

    250 cd/sq.m

  • Contrast Ratio (Typ.)

    1000:1

  • Display Colors

    262K

  • Response Time

    25ms (Tr+Tf)

  • Refresh Rate (Max)

    60Hz

I/O Ports

Jump to...
  • USB 3.2 (Signal)

    1x

Signal Frequency

Jump to...
  • Digital Signal Frequency

    USB: 60Hz

Power Consumption

Jump to...
  • Power Consumption

    5 W

  • Power Saving Mode

    <0.5W

  • Power Off Mode

    <0.3W

  • Voltage

    DC: 5V, 3A

Mechanical Design

Jump to...
  • 1/4" Tripod Socket

    Yes

Physical

Jump to...
  • Dimensions (W x H x D)

    14.17 x 8.88 x 0.46" (360.14 x 225.64 x 11.8mm)

  • Weight

    Without Stand: 27.51 oz (780g)

About ASUS ZenScreen MB166B

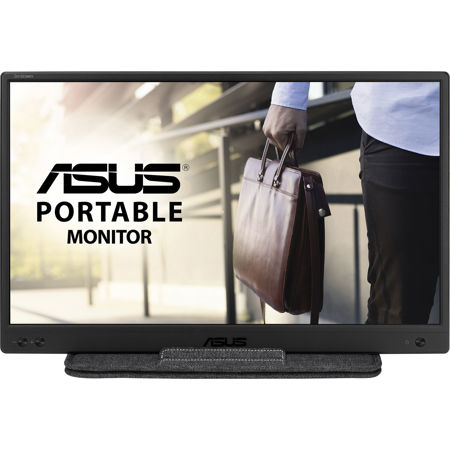

Take your productivity to new heights with the ASUS ZenScreen MB166B, a 15.6" 16:9 Full HD Portable USB IPS LED Monitor that embodies sophistication and functionality. Designed for professionals and creatives who demand excellence on the move, this stylish monitor boasts a lightweight build, weighing in at just 0.78kg, and features an ultra-slim 11.8 mm profile. Its compact size ensures it slips effortlessly into your travel bag, making it the quintessential companion for your mobile workspace.

The ZenScreen MB166B simplifies your workflow with its single USB cable connectivity, which serves the dual purpose of transmitting a Full HD video signal and powering the monitor. This seamless integration is compatible with a wide array of laptops, ensuring a plug-and-play experience that eliminates the hassle of multiple cables.

Ergonomics are at the forefront of the ZenScreen MB166B's design. It includes a 1/4"-threaded hole at the rear, providing the versatility to mount it on a standard tripod or table mount, allowing you to work in a comfortable viewing position. Whether you're delivering a presentation or crunching numbers on spreadsheets, the landscape mode offers an expansive view. For reading documents, books, or browsing websites, the portrait mode presents an optimal viewing experience. The intuitive ASUS DisplayWidget software enables the monitor to detect its orientation automatically and switch between these modes when connected to your laptop.

Visual excellence is a hallmark of the ZenScreen MB166B. The Full HD (1920 x 1080) IPS panel ensures vivid, lifelike images and delivers wide 178-degree viewing angles. This means consistent color and contrast levels, even when you view the screen from off-center positions. Whether you're editing photos, watching videos, or engaging in any other color-critical work, this monitor reproduces every detail with precision.

In summary, the ASUS ZenScreen MB166B is not just a portable monitor; it's a gateway to enhanced productivity and vibrant visual performance, wherever your work takes you.

ASUS ZenScreen MB166B Features

  • 15.6" portable USB-powered monitor with a single USB 3.2 cable for power and video signal transmission
  • Anti-glare IPS display with an ultra-slim design helps you get things done more efficiently when you're on the go
  • User-friendly design with embedded tripod socket on the rear and foldable sleeve for versatility
  • Can automatically sense its orientation and switch the monitor between landscape and portrait modes

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Lightweight and ultra-slim 15.6" FHD Portable USB IPS LED Monitor, perfect for mobile productivity
  • Single-cable USB connectivity for seamless integration with most laptops
  • Versatile mounting options with a 1/4"-threaded hole for tripods or table mounts
  • Automatic orientation detection and switching between landscape and portrait modes
  • Full HD (1920 x 1080) IPS panel with 178-degree viewing angles for vivid, lifelike visuals
  • Ideal for a variety of applications, including photo editing, video watching, and document reading

What's in the box:

  • ASUS ZenScreen MB166B 15.6" 16:9 Full HD Portable USB IPS LED Monitor
  • USB 3.2 Cable
  • ZenScreen Sleeve
  • Quick Start Guide
  • ASUS 3 Year Limited Warranty
