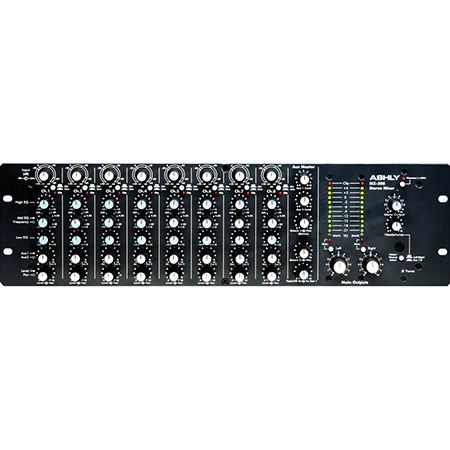

Ashly MX-508 8 Channel Mic/Line Stereo Microphone Mixer with EQ & Sends, 8 Send/Return Insets, 3U Rack Mountable

SKU: ASMX508 MFR: MX-508
Earn VIP Reward Points

Key Features

  • Achieve pristine sound quality with this Ashly 8-channel mic/line stereo mixer.
  • Versatile EQ control: Shape your sound with precise low, mid, and high adjustments.
  • Seamless USB interface: Effortlessly connect to your computer for recording and playback.
  • Ultra-low noise design ensures clean, professional audio for critical applications.
  • Durable build: Reliable performance for studio recording, live sound, and installations.
  • Perfect for live sound: Route signals with 8 send/return inserts for effects processing.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Where is the MX-508 manufactured? Thank you.
Shopper : Why Did You Choose This?BRYAN G : This mixer has the best sound I've ever heard in my 30 years of live sound experience. The clarity, punch and realism is incredible. Expensive, but worth every penny.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ashly MX-508 Specifications

  • Input Impedance

    Mic input (balanced): 1.2kOhms
    Line input (balanced): 20kOhms

  • Distortion

    THD at +4 dBu output, 20Hz-20kHz: <0.05%
    THD at +20dBu output, 30Hz-10kHz: <0.05%
    IMD (SMPTE) at +20dBu output: <0.05%

  • Hum & Noise (20Hz-20kHz)

    equivalent input hum and noise: <-128dBu
    residual output noise, TRS outputs, all levels at minimum: <-100dBu
    residual output noise, XLR outputs: <-90dBu
    Master Level at nominal, all Ch. Level controls at min: <-80dBu
    Master Level and one Ch. Level at nom: <-68dBu
    Aux 1 or 2 Out, Aux Master at nominal and all Ch. Aux at min: <-88dBu
    Aux 1 or 2 Out, Aux Master and one Ch. Aux at nom: <-68dBu

  • Max. Voltage Gain (+/-2dB)

    Master
    Mic Input to Master Output, 600 Ohms load: 84dB
    Line Input to Master Output, 600 Ohms load: 28dB
    AUX SENDS
    Mic Input to Aux Master Output, pre ch. level: 80dB
    Mic Input to Aux Master 2 Output, post ch. level: 95dB
    SUB Input to Master Output: 12dB
    AUX RETURNS 1 or 2 to Master Output: 30dB
    Stereo Line In to Master Output: 27dB

  • Max. Input Level

    Mic input (with pad): +22.3dBu
    Line input: +23dBu

  • Max. Output Level

    Transformer output: +24.2dBu at 600 Ohms (+26.7dBu no load)
    Line output: +23dBu, RCA +13.5dBu

  • Frequency Response

    20Hz-20kHz, +0.5/-1dB
    50Hz-10kHz: +0/-0.5dB,

  • Equalization

    Low ( at 70Hz, shelving): +/-18dB
    Mid (peaking, 140Hz-8kHz): +/-13dB
    High ( at 8kHz, shelving): +/-12dB

  • Crosstalk

    Adjacent Inputs, (20Hz-20kHz): <-65dB
    Mic Input to Master Output (1kHz): <-65dB
    Mic Input to Master Output (20kHz): <-55dB

  • VU Meter

    (Selectable to L/R or Aux Outputs) -21VU to +6VU,0VU = +4dBu

  • Peak Indicator

    Peak Clip indicator on each input channel and left and right outputs, illuminates 3dB below clipping

  • Phantom Power

    +48 VDC applied to all Mic Inputs, switchable on front panel. Maxi-mum total current draw = 80mA.Maximum single channel current draw = 14mA.Gradual power-up and down to eliminate "pops"

  • Power Requirement

    100-240 VAC, 50-60 Hz, 30 Watts

  • Dimensions (W x H x D)

    19 x 5.25 x 9.4" (482.6 x 133.35 x 238.76mm)

  • Weight

    14.7lbs (6.66kg)

  • UPC Code

    694970393882

About Ashly MX-508

A pinnacle of audio engineering, the Ashly MX-508 stands out as a professional-grade 8-input stereo microphone mixer that is both rack-mountable and feature-rich, catering to the discerning needs of audio professionals. With its robust 3U design, this mixer is an ideal choice for a multitude of applications, from live sound reinforcement to sophisticated recording studio setups.

The MX-508 boasts an impressive 84dB of gain, ensuring that even low-level or distant microphones can be amplified to full output with crystal-clear clarity. The meticulously researched microphone preamp is a testament to Ashly's commitment to audio excellence, delivering a discrete circuit with an exceptional -129 dBu Equivalent Input Noise (EIN) and minimal distortion, for a sound that is both pure and powerful.

Flexibility in sound shaping is provided by the mixer's comprehensive EQ section, featuring Low and High Shelving EQ alongside a mid-band peaking EQ, tunable from 140Hz to 8 kHz. This allows for precise tonal control, enabling users to sculpt the audio to their exacting standards.

For versatility, each of the eight channels comes equipped with a dedicated 20dB pad switch, variable gain trim, and Mic/Line selection switches. The front panel offers easy access to +48V phantom power for condenser microphones, ensuring compatibility with a wide range of microphones.

Connectivity is a strong suit of the MX-508, with balanced XLR microphone and TRS Line inputs on each channel. The mixer also features transformer-balanced Left and Right XLR outputs, balanced Left and Right TRS 1/4" outs, and an independent Mono output with its own level control. For private monitoring, there is a selectable Headphone output with a dedicated Level Control.

The MX-508 is designed with meticulous attention to detail, including Peak Clip indicators for each channel and the outputs, ensuring that levels are kept in check. The 10-Segment LED Meters offer visual monitoring and can be set to display the levels of Program Left and Right or Aux 1 and 2.

For expanded connectivity, the mixer includes two Master Aux Sends and two panable Master Aux Returns, one stereo and one mono, as well as Pre-Master Sub In/Out patch points for linking additional mixers. An added convenience is the 3.5mm stereo line-in jack on the front panel, allowing for easy connection of MP3 players and smartphones, with level control routed to the Mains or to Aux 1. Additionally, Stereo RCA Outputs are provided for further routing flexibility.

In summary, the Ashly MX-508 is a reliable, durable, and high-quality 8-channel microphone mixer that offers advanced features and professional performance. Its rack-mountable design and extensive input/output options make it a top choice for audio professionals seeking a versatile and efficient audio mixing solution.

Ashly MX-508 Features

  • 3-Band, channel EQ w/ sweepable mid freq center
  • Convenient, 3.5mm stereo line in jack on front panel for MP3 players and smartphones
  • 2 AUX sends per channel
  • Insert jacks on each channel
  • Independent mono output with level control
  • Transformer isolated +24dBm 600 Ohm balanced XLR-stereo program outputs
  • Safety/Compliance: cTUVus, CE, FCC, RoHS

Warranty Information

This product has a limited warranty of 60 months for parts and 60 months for labor.

Key Features

  • Achieve pristine sound quality with this Ashly 8-channel mic/line stereo mixer.
  • Versatile EQ control: Shape your sound with precise low, mid, and high adjustments.
  • Seamless USB interface: Effortlessly connect to your computer for recording and playback.
  • Ultra-low noise design ensures clean, professional audio for critical applications.
  • Durable build: Reliable performance for studio recording, live sound, and installations.
  • Perfect for live sound: Route signals with 8 send/return inserts for effects processing.

What's in the box:

  • Ashly MX-508 8 Channel Mic/Line Stereo Microphone Mixer
  • Ashly 5 Year Limited Warranty
