Ashly mXa-1502 Networkable Mixer/Amplifier with DSP and 12-Input x 4-Output, 2x 150W @ 2/4/8 Ohms or 25V/70V/100V

SKU: ASMXA1502 MFR: MXA-1502
Earn VIP Reward Points

Key Features

  • Experience pristine audio with this networkable amplifier, perfect for installations.
  • This 12x4 mixer/amplifier delivers 2x150W power output for robust sound in any venue.
  • Achieve superior sound quality with integrated DSP, ensuring clear and precise audio.
  • Easily connect via Euroblock; this installed amplifier offers versatile connectivity options.
  • Enjoy peace of mind with comprehensive amplifier protection against faults and overheating.
  • Control your sound remotely with the network control amp, offering seamless integration.
See More Product Details
Special Order?Estimated to Ship: 08/10/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ashly mXa-1502 Specifications

  • Damping Factor

    >250 (8 Ohm load <1kHz)

  • Distortion (SMPTE, typical)

    <0.5%

  • Distortion (THD-N, typical)

    <0.5% (8 Ohms, 10dB below rated power, 20Hz-20kHz)

  • Channel Separation

    -75dB (dB from full output, 1kHz)

  • Signal-to-Noise (unweighted)

    20Hz-20kHz, Gain@26dB

  • Frequency Response

    20Hz-20kHz, +/-0.05dB

  • Balanced Input Connector

    Euroblock 3.5mm

  • Input Impedance

    10k Ohms

  • Maximum Input Level

    +21dBu

  • Speaker Output Connector

    Euroblock 7.62mm

  • Nominal Voltage Input

    100 - 240VAC

  • Operating Range

    70 - 270VAC

  • Power Supply Type

    SMPS with active PFC

  • AC Mains Line Cord Connector

    Detachable Nema 5-15 for USA

  • Control Network

    RJ-45 connector, 1GB Ethernet

  • AUX Output Connector

    Balanced Euroblock 3.5mm

  • AUX Output Maximum Level

    +21dBu

  • Data Connection

    Euroblock 3.5mm - Gnd, +18V, Data Out, Data In

  • Fault Condition Logic Outputs

    Euroblock 3.5mm - fault indicated by loss of 1Hz "heartbeat" pulse signal

  • Remote DC Level Control

    Euroblock 3.5mm - Gnd, CV, V+ per input

  • Amplifier Protection

    Shorted output power limiting, over-temperature, DC-output, power-supply fault, mains-fuses & inrush-current limiting

  • Cooling

    Continuously variable temperature controlled fan

  • Dimensions (W x H x D)

    Unit: 19 x 1.75 x 14.54" (483 x 5 x 369mm)

  • Weight

    13 lb (5.4kg)

About Ashly mXa-1502

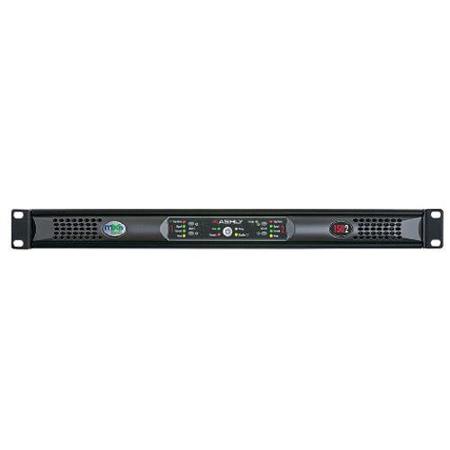

When it comes to multi-zone music distribution, sound masking, paging, and automatic mixing, the mXa-1502 Networkable Mixer/Amplifier with DSP and 12-Input x 4-Output is an advanced solution. This powerful device, equipped with Ashly AquaControl software, is designed to process 12 audio inputs into four different zones, providing high-quality sound for a variety of environments.

This durable mixer/amplifier features two reliable 150-watt amplifiers, capable of driving 2, 4, and 8-ohm loads, as well as 25, 70, and 100V loads. It's a versatile choice for venues ranging from restaurants, sports bars, and event centers to educational institutions and houses of worship.

The mXa-1502 is not just a mixer/amplifier but a comprehensive audio solution. It can handle everything from paging and announcements to background music and TV audio, all controlled from a single tablet or fixed remote. It's an ideal choice for schools, offering high-power, input count, and solutions for challenging acoustics.

For sports facilities, the mXa-1502 offers flexibility and dependability. Its advanced Class D design is energy-efficient, cool-running, and less prone to failure, even under demanding conditions.

In houses of worship, this mixer/amplifier provides a budget-friendly, reliable solution with plenty of mic preamps for ministers, scripture readers, and solo singers, as well as A/V inputs for laptops, DVDs, and CDs.

The mXa-1502 with Ashly AquaControl software also offers total control over four separate zones with a rich array of digital signal processing options, including routing, automixing, ducking, amplifier monitoring, event scheduling/triggering, and more. Its user-friendly interface allows you to navigate using virtually any browser-enabled device, making troubleshooting or reconfiguring a breeze, even from remote locations.

In summary, the mXa-1502 Networkable Mixer/Amplifier with DSP and 12-Input x 4-Output is a powerful, advanced, and versatile audio solution that delivers high-quality sound for a wide range of applications.

Ashly mXa-1502 Features

  • 8-balanced Mic/Line Inputs
  • Precision Class A mic preamp design
  • 4 Stereo Line Inputs
  • 4 Outputs
  • 2x 150W Class D Amplifiers with selectable Multi-mode operation (2/4/8 Ohm + 25/70/100V)
  • Four convenient front-panel buttons for source/preset select
  • Scheduler and RTC (Real-Time Clock) allows user-defined automatic, timed activation of various operations
  • Generous integration I/O, including: Network, Serial, GPIO, VC, Standby & Fault (works with new WR-1.1 remote)
  • Compact 1U design reduces rack space requirements

Warranty Information

This product has a limited warranty of 60 months for parts and 60 months for labor.

Key Features

  • Experience pristine audio with this networkable amplifier, perfect for installations.
  • This 12x4 mixer/amplifier delivers 2x150W power output for robust sound in any venue.
  • Achieve superior sound quality with integrated DSP, ensuring clear and precise audio.
  • Easily connect via Euroblock; this installed amplifier offers versatile connectivity options.
  • Enjoy peace of mind with comprehensive amplifier protection against faults and overheating.
  • Control your sound remotely with the network control amp, offering seamless integration.

What's in the box:

  • mXa-1502 Networkable Mixer/Amplifier with DSP
  • Ashly 5 Year Limited Warranty
