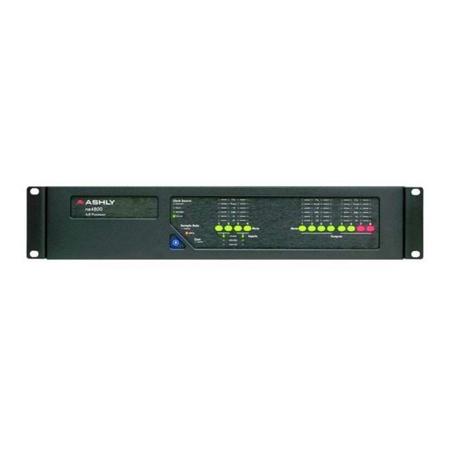

Ashly ne4800 Network Enabled Protea DSP Processor with 4-Ch AES3 Inputs, 8-Ch AES3 Outputs, CNM-2 CobraNet Option Card
SKU: ASNE4800DSC MFR: NE4800DSC
$2,989.00
$3,739.00
Save: $750 (20%)OR
Key Features
- Optimize your audio with the Ashly ne4800 DSP processor's advanced signal routing.
- Achieve pristine sound quality using the 32-bit floating-point SHARC DSP processors.
- Integrate seamlessly with CobraNet for networked audio distribution and control.
- Customize your sound with versatile parametric EQ and crossover filter options.
- Utilize the auto-mixer to automatically balance levels for clear conferencing audio.
- Ensure reliable performance with AES3 digital inputs and outputs for studio clarity.
Special Order?Estimated to Ship: 12/18/2025
Free Shipping
See Options
1
Add Adorama Protect:
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Ashly ne4800
An advanced solution for networked audio systems, the ne4800 Network Enabled Protea DSP Audio System Processor simplifies the process of connecting and controlling an audio processor. This sophisticated device is designed to work seamlessly with our amplifiers, offering effortless setup and control through standard 10/100 Ethernet protocol and Protea ne Software.
The ne4800 stands out with its analog line input/output format, featuring 4 channels of AES3 input and 8 channels of AES3 output. It also comes equipped with a CNM-2 CobraNet Option Card, providing network audio, AES3, and mic input options.
This high-quality audio system processor boasts an extensive DSP signal processing library, powered by multiple SHARC 32-Bit processors with sample rates of either 48kHz or 96kHz. It includes a matrix mixer, available in 4x4, 4x8 or 8x8 configurations, and a comprehensive range of graphic, parametric, and all pass equalization.
The ne4800 also features advanced audio processing capabilities such as an automatic feedback suppressor, FIR filter capability, gain sharing automatic microphone mixing, ambient noise sensing and level adjustment, autolevelers, compressors, matrix duckers, limiters, and frequency-keyed noise gates.
Signal delay up to 1,365ms on every channel is possible, and you can choose from sinewave, pink or white noise generators. All programming is accomplished using standard 10/100 Ethernet or RS-232 protocol and Protea ne Software on a PC platform.
The ne4800's hot-plug software control allows you to plug any function into any channel block even when running live audio with no recompiling necessary. Its automatic DHCP network IP configuration reduces network setup time, and multi-level software security with password access assures you a tamper-proof audio system.
The ne4800 is designed for professional use in live sound reinforcement, recording studios, and post-production facilities. Its innovative design and advanced features make it a reliable choice for audio professionals seeking a high-quality, network-enabled DSP audio system processor.
Ashly ne4800 Features
- 10/100 Ethernet and RS-232 computer interface standard
- Extensive DSP available
- Easy and intuitive user interface
- 24-Bit A/D-D/A audio resolution
- 32-Bit SHARC DSPs
- Sample rates of 48kHz and 96KHz
- Hot-plug software control
- Automatic DHCP network IP configuration
- Butterworth, Bessel, Linkwitz-Riley, and Notched-Linkwitz-Riley filters
- FIR filter capability
- Advanced automatic feedback suppression
- Word Clock input and output
- Euroblock connectors for audio, preset recall, DC remote level control and data in/out
- Remote controls for level, logic I/O and programmable functions
- Third-party control friendly, input and output metering, multi-level security
- Safety/Compliance: TUV, CE, FCC, RoHS
Warranty Information
This product has a limited warranty of 60 months for parts and 60 months for labor.
