Ashly NE800 2-Channel Network-Enabled Power Amplifier, 20Hz-20kHz Frequency
See all Ashly items

Ashly NE800 2-Channel Network-Enabled Power Amplifier, 2x 225W at 8 Ohms/400W at 4 Ohms Output Power, 20Hz-20kHz Frequency Response, 20kOhms Input Impedance

SKU: ASNE800

This item is no longer available.

Recommended Alternatives

Ashly CA Series Power Amp: Picture 1 regular

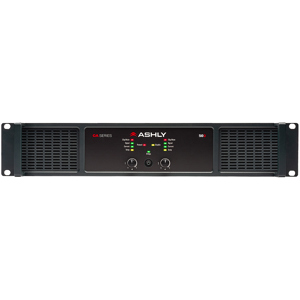

Ashly CA Series CA502 2-Channel 500W Class D Power Amplifier
$1,749.00$1,399.00
Ashly FX Series: Picture 1 regular

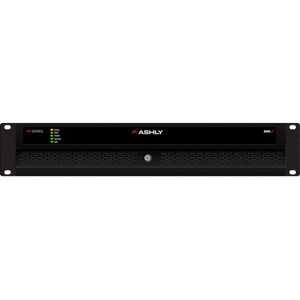

Ashly FX Series FX500.2 2-Channel 500W Class D Power Amplifier with DSP
$1,399.00$1,119.00
See More Recommendations
Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Ashly NE800 Specifications

  • Front Panel: Controls

    Individual input attenuators, AC Power Switch

  • Front Panel: Cooling

    Temperature dependent speed-controlled fan (Front in, Side out)

  • LED Indicators: Unit Status

    POWER (Blue): Switch: On, Off STANDBY (Yellow): Standby, flashing
    PROTECT (Red): On, Off
    DISABLE (Yellow): Per Channel Pair: On, Off
    COM (Green): On, for Ethernet data or Device ID

  • LED Indicators: Each Channel

    SIGNAL LEVEL:
    Red: Clip
    Yellow: -6dBu
    Green: -18dBu, -12dBu
    BRIDGE (Green): Per Channel Pair
    TEMP (Yellow): Per Channel
    CURRENT (Green): Per Channel: Proportional to output

  • Continuous Average Power Output

    8 Ohms: 225W
    4 Ohms: 400W (Per Channel, Low Z Models, Stereo Mode, All Channels Driven)

  • Low Z Output: Bridge Mode

    All channels driven: 8 Ohms: 800W

  • 25/70/100V Distributed Output Models

    25V (per channel): 400W
    70V (per channel): 400W
    100V (per channel): 400W

  • Line Current Draw

    Standby Mode: 200mA
    No Signal: 475mA
    Typical (1/8 power pink noise): 2.81A
    Maximum (1/3 power pink noise): 4.93A (120VAC Mains (divide in half for 230V))

  • Thermal Dissipation

    Standby mode: 40
    Idle (no signal): 109
    Typical (1/8 power pink noise): 287
    Maximum (1/3 power pink noise): 297 (BTU/hr, All Channels Driven)

  • Signal to Noise

    20-20k, Unweighted: >107dB

  • Frequency Response (8 Ohms)

    20Hz-20kHz, (unweighted) +/-1dB

  • Input Impedance

    20k Ohms, Balanced

  • Input Sensitivity

    26dB, 32dB or 1.4V

  • Maximum Input Level

    +21dBu

  • Distortion (8 Ohm load)

    (SMPTE) <0.5% typical
    (THD-N) <0.5% typical

  • Damping Factor

    >250 (8 Ohms, 1kHz)

  • Output Circuitry

    Class D

  • Amplifier/Load Protection

    Output Over current, Main Supply, Rail Overvoltage, Chassis Temperature, Inrush Limiting, Mains Fuse

  • Environmental

    40-120deg. F, (4-49deg. C) noncondensing

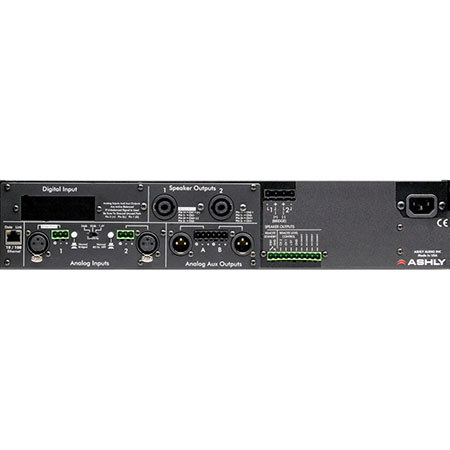

  • Rear Panel: Controls

    Ethernet 10/100, Bridge switch, Remote standby, Remote Level (2)

  • Rear Panel: Connectors (each channel)

    Input: Euroblock, XLR
    Output: Euroblock, speakON

  • Power Requirements

    120V or 240V AC, +/-10% 50-60Hz

  • Power Cable Connector

    15A Edison, 3-Prong IEC

  • Airflow

    IN through sides, OUT through front

  • Dimensions (W x H x D)

    19 x 3.5 x 16.84" (48.26 x 8.89 x 42.77cm)

  • Weight

    24.2lbs (10.97kg)

1 Accessories for Ashly NE800 2-Channel Network-Enabled Power Amplifier, 2x 225W at 8 Ohms/400W at 4 Ohms Output Power, 20Hz-20kHz Frequency Response, 20kOhms Input Impedance

  • All Accessories (1)
  • Studio Installations & Control (1)
Ashly WR-5 Programmable Multifunction Remote Decora Wall Mount
Ashly WR-5 Programmable Multifunction Remote Decora Wall Mount
$229.00
Recommended

About Ashly NE800

The Ashly NE800 2-Channel Network-Enabled Power Amplifier delivers a minimum power of 225 Watts RMS per channel into 8 Ohms loads and 400 Watts RMS per channel into 4 Ohms loads with both channels operating. When switched into bridged-mono mode, the amplifier deliver at least 800 Watts RMS into an 8 Ohms load. The power amplifier include XLR and Euroblock input connectors and Speakon plus Euroblock output connectors. It have balanced analog inputs and a selectable 80Hz high-pass filter. The power amplifier have a 26db/32dB/1.4V input sensitivity switch, remote standby for power up and DC remote level control. It have Ethernet control and monitoring of power functions, level, mute, polarity and swept-sinewave speaker load analysis.

It have balanced and buffered analog aux outputs on XLR and Euroblock connectors. Frequency response 20Hz to 20kHz + 1.0dB. Signal-to-Noise greater than 107dB unweighted and SMPTE intermodulation distortion less than 0.5% into an 8 Ohms load, 10dB below rated output. The front panel provide the status of power, standby, protect, power switch disable, signal level, bridge, over-temperature, over-current and Ethernet communication. The power amplifier will be capable of having factory installed AES3, CobraNet, or Dante interface options. The amplifier mount in a standard 19 inch rack using two spaces.

Ashly NE800 Features

  • 10/100 Ethernet comes standard for remote control and monitoring
  • FIR Filtering Capable
  • Low-Z, 25V, 70V, 100V models
  • DC voltage remote gain control
  • Switched-mode power supply, Class-D output
  • Stepped, calibrated input attenuators
  • Selectable input sensitivity 26dB, 32dB or 1.4V
  • Remote power stand-by
  • Disable all front panel controls via software
  • Temperature sensitive variable speed fan with front-to-back airflow
  • Selectable 80Hz HPF
  • 4-stage level meters
  • Output current and temp indicators
  • Safety/Compliance: CE, FCC, RoHS

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • FIR Filtering Capable
  • Low-Z, 25V, 70V, 100V models
  • DC voltage remote gain control
  • Switched-mode power supply, Class-D output
  • Stepped, calibrated input attenuators
  • Selectable input sensitivity 26dB, 32dB or 1.4V

What's in the box:

  • Ashly NE800 2-Channel Network-Enabled Power Amplifier
  • Ashly 5 Year Warranty
