20 Hz to 20 kHz,
+/-0.1 dB, A>D
+/-0.25 dB, D>A
+/-0.25 dB, A>A
20 Hz to 20 kHz (unweighted)
>115 dB, A>D
>114 dB, D>A
>114 dB, A>A
1 kHz, +20 dBu analog (-1.0 dBFS digital)
<0.001%, A>D
<0.002%, D>A
<0.002%, A>A
<0.00001%, D>D
@48 kHz
1.42 ms, A>D
0.90 ms, D>A
2.21 ms, A>A
0.10 ms, D>D
@96 kHz
0.71 ms, A>D
0.45 ms, D>A
1.11 ms, A>A
0.05 ms, D>D
Input/Output Type: 75 Ohms BNC
Lock Range: 48 kHz +/- 4%, 96 kHz +/- 4%
Input Impedance: Selectable 75 Ohms or high impedance
Input Voltage Range: 1.0 to 7.0 Vpp
Output Impedance: 75 Ohms
Output Level: 5.0 Vpp nominal, unterminated
Sources
Audio network
Wordclock
AES3
Internal crystal clock
Modes
Prioritized auto switching
Manual
Analog Line/Microphone
Input Type: Active balanced Euroblock
Input Impedance: 20 k Ohms
Maximum Input Level: +20 dB
Analog
Servo-Balanced Euroblock
Output Impedance: 20 Ohms
Maximum Output Level: +20 dBu
AES3
Transformer Balanced Male XLR
Output Impedance: 110 Ohms
Maximum Output Level: 5.0 Vpp
10/100 Ethernet port
RS-232 port
Euroblock inputs/outputs
Four option bays
Word Clock in/out
Remote level control
Logic I/O
Data in/out ports
On/Off switch
40 to 120 Degree F (4 to 49 Degree C) non-condensing
90 to 240 VAC, 50/60 Hz
70 W maximum
Cable Connector: 15A Edison 3-Prong IEC
Computer running under Windows 8, 7, Vista, XP (32- and 64-bit systems)
TUV, CE, FCC, RoHS
3.5 x 19 x 8.5" (89 x 483 x 216mm)
10.5 lb (4.77kg)
Input Source Select Options: Analog, Auto (Net, AES3, Analog)
Brick Wall Limiter
Threshold: -20 to +20 dBu
Ratio: Infinite
Attack: 0.2 to 50 ms/dB
Release: 5 to 1000ms/dB
Threshold: -20 to +20 dBu
Ratio: 1.2:1 to infinite
Attack: 0.2 to 50 ms
Release: 5 to 1000 ms/dB
Detector: Peak/average
Attenuation Bus: 4 available
Metering: In, Out, Attenuation, Graphical
Target Level: -40 to +20 dBu
Action: Gentle, normal, aggressive, user-defined
Maximum Gain: 0 to +22 dB
Metering: Input Level, Gain, Attenuation
Ratio: 1.2:1 to 10:1
Threshold Below Target: -30 to 0 dB
Gain Increase/Decrease Rate: 5 to 1000 ms/dB
Hold Time: 0 to 6 sec
Maximum Gain: -20 to +20 dB
Minimum/Base Gain: -40 to -1 dB
Gain Change Rate: 0.2 to 20 s/dB
Link Group: 8 available>ANC Input Channel: 1-2 or 1-4
Noise Threshold: -40 to +20 dBu
Program/Ambient Gain Ratio: 0.3:1 to 3:1
Metering: Input level, Attenuation, Average noise
High/Low Priority, Trigger, Filibuster, Ducked Program
Trigger Threshold: -80 to +20 dBu
Ducking Release: 5 to 1000 ms/dB
Ducking Depth: 0 to -30 dB, -Infinite
Enable Ducking at Matrix Mixer: Yes
Metering: Input
Threshold: -80 to +20 dBu
Range: off, 100 to 0 dB
Attack: 0.2 to 50 ms/dB
Release: 5 to 1000 ms/dB
Metering: Key Signal, Gate LED, Graphical
Advanced Gate Controls
Key Engage Enable: Yes
Key Frequency: 20 Hz to 20 kHz
Key Bandwidth: 0.016 to 3.995 octave
Gain (with/without VCA): -50 to +12 dB, off, polarity invert
Digital VCA Groups: 4 available
Remote RD8C Gain: Enable per channel, 0 dB to -Infinite
WR-5 (neWR-5) Remote Gain: 0 to -50 dB, mute
31-Band
Filter Type: Constant Q or proportional Q
Bandwidth: 0.499 to 0.25 oct
Parametric 2,4,6, or 10 Band
Frequency: 20 to 20 kHz
Level: -30 to +15 dB
Q Value: 0.016 to 3.995 Octave
Hi/Low Shelf 6/12 dB/oct
Frequency: 20 Hz to 20 kHz
Level: -15 to +15 dB
All Pass
Frequency: 20 Hz to 20 kHz
Variable Q HP/LP
Frequency: 20 Hz to 20 kHz
Q Value: 3.047 to 0.267
Notch/Bandpass
Frequency: 20 Hz to 20 kHz
Bandwidth Range: 0.016 to 3.995 oct.
Feedback Suppressor: Only available w/ 48 kHz sampling rate (inputs only)
Filters: 12
In/Out per filter: Yes
Filter Modes: Float, Restricted, Manual, Lock
Filter Type: Notch, Parametric
Filter Frequency Range: 20 Hz to 20 kHz
Parametric Filter Level: +15 to -30 dB
Filter Bandwidth: 0.016 to 3.995 Octave
Detector Sensitivity: 5 levels
Float Time: 5 seconds to 24 hours
2 Way, 3 Way, 4 Way Crossover & High-Pass/Low-Pass Filters
Bessel & Butterworth Filters: 12/18/24/48 dB/oct
Linkwitz-Riley Filter: 12/24/48 dB/oct
Notched Linkwitz-Riley: 4th Order, 8th Order
Frequency:Off, 20 Hz to 20 kHz
@ 48 kHz Sampling Rate (Input Time, Distance & Temperature)
Speaker Delay: 0 to 58.65 ms
Delay: 0 to 1.365.31 ms
@ 96 kHz Sampling Rate (Input Time, Distance & Temperature)
Speaker Delay: 0 to 29.32 ms
Delay: 0 to 682.65 ms
Range: -60 to +20 dBu
Increments: 1 dB
Peak Hold Indicator: Yes
Pink noise, White noise, Sine wave
Signal Level: Off, -50 to +20 dBu
Sine Wave Frequency: 20 Hz to 12 kHz
Gain (0.5 dB increments): Off, -50 to +12 dB
Mute: Input
Auto-Mixer: Automix assign per input
Global Auto-mixer Response: 0.01 to 2 sec
Enable Ducking at Mixer: Yes
Ducking LED: Per channel if enabled
Metering: Level, auto-mixer level
Input A/D, Output D/A: 24 bit
DSP Processors: 32-bit floating point
Sample Rates: 48 and 96 kHz

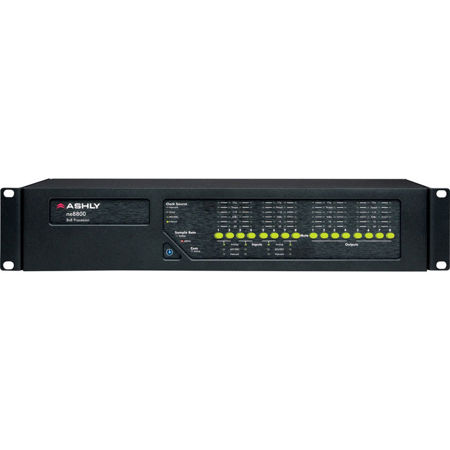

The Network-Enabled Digital Signal Processor with 8-Channel Mic Inputs & Protea Software Suite is a sophisticated and powerful tool designed for professional audio and video applications. This advanced device offers seamless setup and control using the standard 10/100 Ethernet protocol and the Protea ne Software, eliminating the need for special outboard control units.
This innovative processor simplifies the connection and control of an audio processor for networked systems. It comes in standard analog line input/output formats of ne4400 (4x4), ne4800 (4x8), and ne8800 (8x8), with four option bays supporting network audio, AES3, and mic input options.
The high-quality DSP signal processing library is extensive, utilizing multiple SHARC 32-bit processors with sample rates of either 48KHz or 96KHz. Processing blocks include a matrix mixer (either 4x4, 4x8 or 8x8), a comprehensive array of graphic, parametric and all pass equalization, and crossover filters including 8th-order Butterworth, Bessel, Linkwitz-Riley and notched Linkwitz-Riley.
The Protea Software Suite enhances the functionality of this device, featuring an exceptionally advanced automatic feedback suppressor, gain sharing automatic microphone mixing, ambient noise sensing and level adjustment, autolevelers, compressors, matrix duckers, limiters, frequency-keyed noise gates, and signal delay up to 1,365ms on every channel. It also offers your choice of sinewave, pink or white noise generators.
Programming is easily accomplished using standard 10/100 Ethernet or RS-232 protocol and Protea ne Software on a PC platform. The hot-plug software control allows you to plug any function into any channel block even when running live audio, with no recompiling necessary. The automatic DHCP network IP configuration significantly reduces network setup time, while the multi-level software security with password access ensures a tamper-proof audio system.
Ideal for use in live performances, recording studios, and broadcast facilities, this Network-Enabled Digital Signal Processor with 8-Channel Mic Inputs & Protea Software Suite is a versatile and reliable choice for your professional audio needs.
