Ashly ne8800 DSP Audio System Processor, 8-Ch Mic In, 2x 4-Ch Mic In Card, CNM-2
See all Ashly items
20% Off

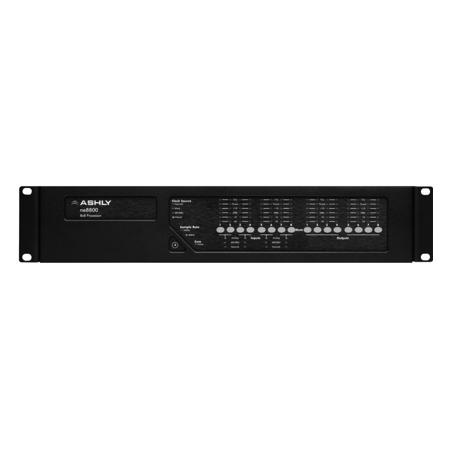

Ashly ne8800 Network Enabled Protea DSP Processor with 8-Ch Mic Inputs, 2x 4-Ch Mic Input Card, CNM-2 CobraNet Option Card

SKU: ASNE8800MMC MFR: NE8800MMC
Be the first to review this itemAsk a Question
$3,749.00
$4,699.00
Save: $950 (20%)
OR
$313/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Achieve pristine audio with the ne8800's high-quality signal processing capabilities.
  • Customize your sound using the flexible parametric EQ for precise frequency control.
  • Enjoy seamless integration with CobraNet for networked audio distribution in large venues.
  • Easily manage gain, ducking, and more with the intuitive matrix mixer for live performances.
  • Ensure consistent levels with the autoleveler, ideal for broadcast and recording studios.
  • Eliminate feedback issues using the built-in feedback suppressor for clear, professional sound.
See More Product Details
Special Order?Estimated to Ship: 08/13/2025
Free Shipping

See Options

Qty
1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Ashly ne8800 Specifications

Control Functions

Control Functions

Jump to...

  • Digital

    Ethernet Control: Standard RJ45 10/100 Ethernet w/auto-configuration
    RS-232 Control: Standard female Dsub9 jack
    4-pin Serial Data Remote: 4-pin Euroblock for phantom-poweredbi-directional remotes
    Logic Inputs: 9-pin Euroblock for (8) assignable 5V logic inputs
    Logic Outputs: Shared with logic inputs. +12V @ 10mA output high, 100mA input low

  • Analog

    Remote Attenuators: 10-pin Euroblock for (8) assignable 0-5VDC passive remote attenuators

Digital Audio Hardware

Jump to...

  • Samples Rates

    48kHz, 96kHz

  • DSP Processing

    32-Bit floating-point SHARC processor array

  • Audio Input Source Selection

    Selectable in adjacent channel pairs from analog, AES3, or network inputs

  • Network Audio

    CobraNet

  • Network Audio Routing

    Selectable between input/output or internal to matrix mixer

  • Digital Audio/Output Jitter

    0.5nS average, 1.0nS peak

Sonic Performance

Jump to...

  • Frequency Response

    20Hz-20kHz:

    A > D: +/- 0.1dB
    D > A: +/-0.25dB
    A > A: +/-0.25dB

  • Dynamic Range

    20Hz-20kHz, Unweighted:

    A > D: > 115dB
    D > A: 114dB
    A > A: 114dB

  • Distortion, THD and Noise

    1kHz, +20dBu Analog(-1dBFS digital):

    A > D: < 0.001%
    D > A: < 0.002%
    A > A: < 0.002%
    D > D: < 0.00001%

  • Latency

    @ 48kHz:

    A > D: 1.42ms
    D > A: 0.90ms
    A > A: 2.21ms
    D > D: 0.10ms

    @ 96kHz:

    A > D: 0.71ms
    D > A: 0.45ms
    A > A: 1.11ms
    D > D: 0.05ms

Word Clock

Jump to...

  • Input/Output Type

    75 Ohms BNC

  • Lock Range

    48kHz +/- 4%, 96kHz +/- 4%

  • Input Impedance

    Selectable 75 Ohm or high impedance

  • Input Voltage Range

    1.0Vpp-7.0Vpp

  • Output Impedance

    75 Ohms

  • Output Level

    5.0Vpp nominal, unterminated

Master Clock

Jump to...

  • Sources

    Audio network, Word Clock, AES3,Internal crystal clock

  • Modes

    Prioritized auto switching or manual

Audio Inputs

Jump to...

  • Analog Line/Mic

    Input Type: Active balanced Euroblock
    Input Impedance: 20k Ohms
    Max Input Level: +20dBu

Audio Outputs

Jump to...

  • Servo-balanced Euroblock

    Output Impedance: 20 Ohms
    Max Output Level: +20dBu

Rear Panel

Jump to...

  • Connectors

    10/100 Ethernet port, RS-232 port, Euroblock inputs/outputs, Four option bays, Word Clock in/out, Remote level control, Logic I/O, Data in/out ports, On/off switch

Environmental

Jump to...

  • Environmental

    40-120 degree F (4-49 degree C) (noncondensing)

Power

Jump to...

  • Power Requirements

    AC Mains: 90-240VAC, 50-60Hz, 70W Max
    Power Cable Connector: 15A Edison 3-Prong IEC

DSP: Input Source Selection

Jump to...

  • Input Source Selection Options

    Analog, Auto (Net, AES3, Analog)

DSP: Brick Wall Limiter

Jump to...

  • Threshold

    -20dBu to +20dBu

  • Ratio

    infinity

  • Attack

    0.2ms/dB to 50 ms/dB

  • Release

    5ms/dB to 1000ms/dB

DSP: Compressor

Jump to...

  • Threshold

    -20dBu to +20dBu

  • Ratio

    1.2:1 to infinite

  • Attack

    0.2 to 50ms

  • Release

    5ms/dB to 1000ms/dB

  • Detector

    Peak/Average

  • Attenuation Bus

    4 available

  • Metering

    In, Out, Attenuation, Graphical

DSP: Autoleveler Controls

Jump to...

  • Target Level

    -40dBu to +20dBu

  • Action

    Gentle, normal, aggressive, user-defined

  • Maximum Gain

    0dB to +22dB

  • Metering

    Input Level, Gain, Attenuation

  • Ratio

    1.2:1 to 10:1

  • Threshold Below Target

    -30dB to 0dB

  • Gain Increase/Decrease Rate

    5ms/dB to 1000ms/dB

  • Hold Time

    0-6 sec

DSP: Ambient Noise Compensation (Output)

Jump to...

  • Max Gain

    -20dB to +20dB

  • Min/Base Gain

    -40dB to -1dB

  • Gain Change Rate

    0.2s/dB to 20s/dB

  • Link Group

    8 available

  • ANC Input Channel

    1-2 or 1-4

  • Noise Threshold

    -40dBu to +20dBu

  • Program/Ambient Gain Ratio

    0.3:1 to 3:1

  • Metering

    Input level, Attenuation, Average noise

DSP: Ducking

Jump to...

  • Trigger Threshold

    -80dBu to +20 dBu

  • Ducking Release

    5ms/dB to 1000ms/dB

  • Ducking Depth

    0dB to -30dB, infinity

  • Enable Ducking at Matrix Mixer

    Yes

  • Metering

    Input

DSP: Gate

Jump to...

  • Threshold

    -80dBu to +20dBu

  • Range

    off, 100dB to 0dB

  • Attack

    0.2ms/dB to 50 ms/dB

  • Release

    5ms/dB to 1000ms/dB

  • Metering

    Key Signal, Gate LED, Graphical

DSP: Advanced Gate Controls

Jump to...

  • Key Engage Enable

    Yes

  • Key Frequency

    20Hz to 20kHz

  • Key Bandwidth

    0.016 to 3.995 Octave

DSP: Gain

Jump to...

  • Gain (with/without VCA)

    -50dB to +12dB, off, polarity invert

  • Digital VCA Groups

    4 available

  • Remote RD8C Gain

    Enable per channel, 0dB to infinity

  • WR-5 (neWR-5) Remote Gain

    0 to -50dB, Mute

DSP: EQ (31-Band)

Jump to...

  • Filter Type

    Constant Q or Proportional Q

  • Bandwidth

    0.499oct to 0.25oct

DSP: EQ (Parametric 2,4,6, or 10 Band)

Jump to...

  • Frequency

    20-20kHz

  • Level

    -30dB to +15dB

  • Q Value

    0.016 to 3.995 Octave

DSP: EQ (Hi/Low Shelf 6/12 dB/oct)

Jump to...

  • Frequency

    20Hz-20kHz

  • Level

    -15dB to +15dB

DSP: EQ (All Pass)

Jump to...

  • Frequency

    20Hz-20kHz

DSP: EQ (Variable Q HP/LP)

Jump to...

  • Frequency

    20Hz-20kHz

  • Q Value

    3.047 to 0.267

DSP: EQ (Notch/Bandpass)

Jump to...

  • Frequency

    20Hz-20kHz

  • Bandwidth Range

    0.016 to 3.995 oct.

DSP: Feedback Suppressor (Input Only)

Jump to...

  • Filters

    12

  • In/Out per filter

    Yes

  • Filter Modes

    Float, Restricted, Manual, Lock

  • Filter Type

    Notch, Parametric

  • Filter Frequency Range

    20Hz to 20kHz

  • Parametric Filter Level

    +15dB to -30dB

  • Filter Bandwidth

    0.016 to 3.995 Octave

  • Detector Sensitivity

    5 levels

  • Float Time

    5 seconds to 24 hours (Only available w/ 48kHz sampling rate (inputs only))

DSP: Crossover (2 /3/4 Way Crossover)

Jump to...

  • Bessel & Butterworth Filters

    12/18/24/48 dB/oct

  • Linkwitz-Riley Filter

    12/24/48 dB/oct

  • Notched Linkwitz-Riley

    4th Order, 8th Order

  • Frequency

    Off, 20Hz-20KHz

DSP: Delay (@ 48kHz Sampling Rate)

Jump to...

  • Speaker Delay

    0-58.65ms

  • Delay

    0-1,365.31ms

DSP: Delay (@ 96kHz Sampling Rate)

Jump to...

  • Speaker Delay

    0-29.32ms

  • Delay

    0-682.65ms

DSP: Audio Metering Tool

Jump to...

  • Range

    -60dBu to +20dBu

  • Increments

    1dB

  • Peak Hold Indicator

    Yes

DSP: Signal Generator Tool

Jump to...

  • Signal Level

    Off, -50dBu to +20dBu

  • Sine Wave Frequency

    20Hz-12kHz

DSP: Matrix Mixer

Jump to...

  • Gain (0.5dB increments)

    Off, -50dB to +12dB

  • Mute

    Input

  • Auto-Mixer

    Automix assign per input

  • Global Auto-mixer Response

    0.01sec to 2sec

  • Enable Ducking at Mixer

    Yes

  • Ducking LED

    Per channel if enabled

  • Metering

    Level, auto-mixer level

DSP: Processors

Jump to...

  • Input A/D, Output D/A

    24 bit

  • DSP Processors

    32-bit floating point

  • Sample Rates

    48kHz, 96kHz

Physical

Jump to...

  • Dimensions (L x H x D)

    19 x 3.5 x 8.5" (483 x 89 x 216mm)

  • Weight

    10.5 lb (4.77kg)

About Ashly ne8800

Discover the advanced capabilities of the ne8800 Network Enabled Protea DSP Audio System Processor. This sophisticated device simplifies the connection and control of an audio processor for networked systems, making it an ideal choice for professionals in the audio industry.

This powerful processor is designed for seamless integration with standard 10/100 Ethernet protocol and Protea ne Software, eliminating the need for special outboard control units. It boasts an analog line input/output format with four option bays that support network audio, AES3, and mic input options.

The ne8800 is a high-quality 8-channel mic input processor, equipped with 2x 4-channel mic input cards and a CNM-2 CobraNet option card. This innovative design allows for greater flexibility in routing and processing audio signals, making it perfect for live sound reinforcement, theater productions, and installed sound systems.

The extensive DSP signal processing library utilizes multiple SHARC 32-Bit processors with sample rates of either 48kHz or 96kHz. Processing blocks include a matrix mixer, a full array of graphic, parametric and all pass equalization, and crossover filters. The Protea Software Suite also includes an advanced automatic feedback suppressor, FIR filter capability, gain sharing automatic microphone mixing, ambient noise sensing and level adjustment, autolevelers, compressors, matrix duckers, limiters, frequency-keyed noise gates, signal delay up to 1,365ms on every channel, and your choice of sinewave, pink or white noise generators.

All programming is accomplished using standard 10/100 Ethernet or RS-232 protocol and Protea ne Software on a PC platform. The hot-plug software control allows you to plug any function into any channel block even when running live audio with no recompiling necessary. The automatic DHCP network IP configuration reduces network setup time, while multi-level software security with password access assures a tamper-proof audio system.

The ne8800 Network Enabled Protea DSP Audio System Processor is more than just a device; it's a comprehensive solution for all your professional audio needs.

Ashly ne8800 Features

  • 10/100 Ethernet and RS-232 computer interface standard
  • Extensive DSP available
  • Easy and intuitive user interface
  • 24-Bit A/D-D/A audio resolution
  • 32-Bit SHARC DSPs
  • Sample rates of 48kHz and 96KHz
  • Hot-plug software control
  • Automatic DHCP network IP configuration
  • Butterworth, Bessel, Linkwitz-Riley, and Notched-Linkwitz-Riley filters
  • FIR filter capability
  • Advanced automatic feedback suppression
  • Word Clock input and output
  • Euroblock connectors for audio, preset recall, DC remote level control and data in/out
  • Remote controls for level, logic I/O and programmable functions
  • Third-party control friendly, input and output metering, multi-level security
  • Safety/Compliance: TUV, CE, FCC, RoHS

Warranty Information

This product has a limited warranty of 60 months for parts and 60 months for labor.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Achieve pristine audio with the ne8800's high-quality signal processing capabilities.
  • Customize your sound using the flexible parametric EQ for precise frequency control.
  • Enjoy seamless integration with CobraNet for networked audio distribution in large venues.
  • Easily manage gain, ducking, and more with the intuitive matrix mixer for live performances.
  • Ensure consistent levels with the autoleveler, ideal for broadcast and recording studios.
  • Eliminate feedback issues using the built-in feedback suppressor for clear, professional sound.

What's in the box:

  • ne8800 Network Enabled Protea DSP Audio System Processor
  • Ashly 5 Year Limited Warranty
