Ethernet Control: Standard RJ45 10/100 Ethernet w/auto-configuration
RS-232 Control: Standard female Dsub9 jack
4-pin Serial Data Remote: 4-pin Euroblock for phantom-poweredbi-directional remotes
Logic Inputs: 9-pin Euroblock for (8) assignable 5V logic inputs
Logic Outputs: Shared with logic inputs. +12V @ 10mA output high, 100mA input low
Remote Attenuators: 10-pin Euroblock for (8) assignable 0-5VDC passive remote attenuators
48kHz, 96kHz
32-Bit floating-point SHARC processor array
Selectable in adjacent channel pairs from analog, AES3, or network inputs
CobraNet
Selectable between input/output or internal to matrix mixer
0.5nS average, 1.0nS peak
20Hz-20kHz:
A > D: +/- 0.1dB
D > A: +/-0.25dB
A > A: +/-0.25dB
20Hz-20kHz, Unweighted:
A > D: > 115dB
D > A: 114dB
A > A: 114dB
1kHz, +20dBu Analog(-1dBFS digital):
A > D: < 0.001%
D > A: < 0.002%
A > A: < 0.002%
D > D: < 0.00001%
@ 48kHz:
A > D: 1.42ms
D > A: 0.90ms
A > A: 2.21ms
D > D: 0.10ms
@ 96kHz:
A > D: 0.71ms
D > A: 0.45ms
A > A: 1.11ms
D > D: 0.05ms
75 Ohms BNC
48kHz +/- 4%, 96kHz +/- 4%
Selectable 75 Ohm or high impedance
1.0Vpp-7.0Vpp
75 Ohms
5.0Vpp nominal, unterminated
Audio network, Word Clock, AES3,Internal crystal clock
Prioritized auto switching or manual
Input Type: Active balanced Euroblock
Input Impedance: 20k Ohms
Max Input Level: +20dBu
Output Impedance: 20 Ohms
Max Output Level: +20dBu
Output Impedance: 110 Ohms
Max Output Level: 5.0Vpp
10/100 Ethernet port, RS-232 port, Euroblock inputs/outputs, Four option bays, Word Clock in/out, Remote level control, Logic I/O, Data in/out ports, On/off switch
40-120 degree F (4-49 degree C) (noncondensing)
AC Mains: 90-240VAC, 50-60Hz, 70W Max
Power Cable Connector: 15A Edison 3-Prong IEC
Analog, Auto (Net, AES3, Analog)
-20dBu to +20dBu
infinity
0.2ms/dB to 50 ms/dB
5ms/dB to 1000ms/dB
-20dBu to +20dBu
1.2:1 to infinite
0.2 to 50ms
5ms/dB to 1000ms/dB
Peak/Average
4 available
In, Out, Attenuation, Graphical
-40dBu to +20dBu
Gentle, normal, aggressive, user-defined
0dB to +22dB
Input Level, Gain, Attenuation
1.2:1 to 10:1
-30dB to 0dB
5ms/dB to 1000ms/dB
0-6 sec
-20dB to +20dB
-40dB to -1dB
0.2s/dB to 20s/dB
8 available
1-2 or 1-4
-40dBu to +20dBu
0.3:1 to 3:1
Input level, Attenuation, Average noise
-80dBu to +20 dBu
5ms/dB to 1000ms/dB
0dB to -30dB, infinity
Yes
Input
-80dBu to +20dBu
off, 100dB to 0dB
0.2ms/dB to 50 ms/dB
5ms/dB to 1000ms/dB
Key Signal, Gate LED, Graphical
Yes
20Hz to 20kHz
0.016 to 3.995 Octave
-50dB to +12dB, off, polarity invert
4 available
Enable per channel, 0dB to infinity
0 to -50dB, Mute
Constant Q or Proportional Q
0.499oct to 0.25oct
20-20kHz
-30dB to +15dB
0.016 to 3.995 Octave
20Hz-20kHz
-15dB to +15dB
20Hz-20kHz
20Hz-20kHz
3.047 to 0.267
20Hz-20kHz
0.016 to 3.995 oct.
12
Yes
Float, Restricted, Manual, Lock
Notch, Parametric
20Hz to 20kHz
+15dB to -30dB
0.016 to 3.995 Octave
5 levels
5 seconds to 24 hours (Only available w/ 48kHz sampling rate (inputs only))
12/18/24/48 dB/oct
12/24/48 dB/oct
4th Order, 8th Order
Off, 20Hz-20KHz
0-58.65ms
0-1,365.31ms
0-29.32ms
0-682.65ms
-60dBu to +20dBu
1dB
Yes
Off, -50dBu to +20dBu
20Hz-12kHz
Off, -50dB to +12dB
Input
Automix assign per input
0.01sec to 2sec
Yes
Per channel if enabled
Level, auto-mixer level
24 bit
32-bit floating point
48kHz, 96kHz
19 x 3.5 x 8.5" (483 x 89 x 216mm)
10.5 lb (4.77kg)

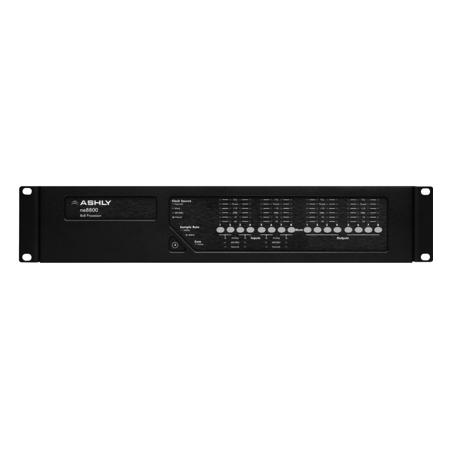

Take your audio processing to the next level with the ne8800 Network Enabled Protea DSP Audio System Processor, a powerhouse designed for sophisticated networked audio systems. This advanced unit seamlessly integrates with your existing setup, offering unparalleled control and flexibility through standard 10/100 Ethernet protocol and intuitive Protea ne Software, eliminating the need for specialized outboard control units.
The ne8800 stands out with its robust configuration, featuring eight analog line inputs and outputs, complemented by four expansion bays that support a variety of options including the CNM-2 CobraNet card for network audio connectivity, AES3 digital audio, and professional-grade microphone inputs. This versatility ensures that the ne8800 can adapt to the specific needs of your audio environment, whether it's for live sound, broadcasting, or fixed installations.
At the heart of the ne8800's performance lies an extensive DSP signal processing library powered by multiple SHARC 32-Bit processors, capable of handling sample rates of 48kHz or 96kHz. This library includes a flexible 8x8 matrix mixer, comprehensive equalization options with graphic, parametric, and all-pass filters, and advanced crossover filters such as 8th-order Butterworth, Bessel, and Linkwitz-Riley designs.
The Protea Software Suite further enhances the ne8800's capabilities with features like an advanced automatic feedback suppressor, FIR filter capability, and gain sharing automatic microphone mixing. It also includes ambient noise sensing and level adjustment, autolevelers, compressors, matrix duckers, limiters, and frequency-keyed noise gates. Signal delay is adjustable up to 1,365ms on every channel, and users can select from sinewave, pink, or white noise generators for testing and setup.
Programming the ne8800 is a breeze using a PC platform with standard Ethernet or RS-232 protocol. Hot-plug software control allows for on-the-fly adjustments to any channel block without interrupting live audio, ensuring a seamless performance. Automatic DHCP network IP configuration simplifies network setup, while multi-level software security with password access guarantees a secure and tamper-proof audio system.
The ne8800's architecture and engineering specifications are designed with the professional in mind. The unit's fixed-path architecture allows for hot-pluggable audio functions anywhere in the signal path, streamlining setup. The rear panel features Euroblock connectors for eight logic inputs or outputs, plus eight remote potentiometer level controls, and BNC connections for word clock input and output, ensuring precise digital audio synchronization.
Designed to fit into a standard 19" rack, the ne8800 occupies just 2U of space, making it an efficient and space-saving addition to any professional audio rack.
Compatible with Microsoft Windows 8, 7, Vista, and XP (32 & 64-bit systems), the Protea DSP platform is renowned for its user-friendly interface, allowing audio professionals and enthusiasts alike to navigate and manage their audio processing with ease and precision.
Elevate your audio system's performance with the ne8800 Network Enabled Protea DSP Audio System Processor, where advanced technology meets user-friendly operation for an unmatched audio processing experience.
