Ethernet Control: Standard RJ45 10/100 Ethernet w/auto-configuration
RS-232 Control: Standard female Dsub9 jack
4-pin Serial Data Remote: 4-pin Euroblock for phantom-poweredbi-directional remotes
Logic Inputs: 9-pin Euroblock for (8) assignable 5V logic inputs
Logic Outputs: Shared with logic inputs. +12V @ 10mA output high, 100mA input low
Remote Attenuators: 10-pin Euroblock for (8) assignable 0-5VDC passive remote attenuators
48kHz, 96kHz
32-Bit floating-point SHARC processor array
Selectable in adjacent channel pairs from analog, AES3, or network inputs
CobraNet
Selectable between input/output or internal to matrix mixer
0.5nS average, 1.0nS peak
20Hz-20kHz:
A > D: +/- 0.1dB
D > A: +/-0.25dB
A > A: +/-0.25dB
20Hz-20kHz, Unweighted:
A > D: > 115dB
D > A: 114dB
A > A: 114dB
1kHz, +20dBu Analog(-1dBFS digital):
A > D: < 0.001%
D > A: < 0.002%
A > A: < 0.002%
D > D: < 0.00001%
@ 48kHz:
A > D: 1.42ms
D > A: 0.90ms
A > A: 2.21ms
D > D: 0.10ms
@ 96kHz:
A > D: 0.71ms
D > A: 0.45ms
A > A: 1.11ms
D > D: 0.05ms
75 Ohms BNC
48kHz +/- 4%, 96kHz +/- 4%
Selectable 75 Ohm or high impedance
1.0Vpp-7.0Vpp
75 Ohms
5.0Vpp nominal, unterminated
Audio network, Word Clock, AES3,Internal crystal clock
Prioritized auto switching or manual
Output Impedance: 20 Ohms
Max Output Level: +20dBu
Output Impedance: 110 Ohms
Max Output Level: 5.0Vpp
10/100 Ethernet port, RS-232 port, Euroblock inputs/outputs, Four option bays, Word Clock in/out, Remote level control, Logic I/O, Data in/out ports, On/off switch
40-120 degree F (4-49 degree C) (noncondensing)
AC Mains: 90-240VAC, 50-60Hz, 70W Max
Power Cable Connector: 15A Edison 3-Prong IEC
Analog, Auto (Net, AES3, Analog)
-20dBu to +20dBu
infinity
0.2ms/dB to 50 ms/dB
5ms/dB to 1000ms/dB
-20dBu to +20dBu
1.2:1 to infinite
0.2 to 50ms
5ms/dB to 1000ms/dB
Peak/Average
4 available
In, Out, Attenuation, Graphical
-40dBu to +20dBu
Gentle, normal, aggressive, user-defined
0dB to +22dB
Input Level, Gain, Attenuation
1.2:1 to 10:1
-30dB to 0dB
5ms/dB to 1000ms/dB
0-6 sec
-20dB to +20dB
-40dB to -1dB
0.2s/dB to 20s/dB
8 available
1-2 or 1-4
-40dBu to +20dBu
0.3:1 to 3:1
Input level, Attenuation, Average noise
-80dBu to +20 dBu
5ms/dB to 1000ms/dB
0dB to -30dB, infinity
Yes
Input
-80dBu to +20dBu
off, 100dB to 0dB
0.2ms/dB to 50 ms/dB
5ms/dB to 1000ms/dB
Key Signal, Gate LED, Graphical
Yes
20Hz to 20kHz
0.016 to 3.995 Octave
-50dB to +12dB, off, polarity invert
4 available
Enable per channel, 0dB to infinity
0 to -50dB, Mute
Constant Q or Proportional Q
0.499oct to 0.25oct
20-20kHz
-30dB to +15dB
0.016 to 3.995 Octave
20Hz-20kHz
-15dB to +15dB
20Hz-20kHz
20Hz-20kHz
3.047 to 0.267
20Hz-20kHz
0.016 to 3.995 oct.
12
Yes
Float, Restricted, Manual, Lock
Notch, Parametric
20Hz to 20kHz
+15dB to -30dB
0.016 to 3.995 Octave
5 levels
5 seconds to 24 hours (Only available w/ 48kHz sampling rate (inputs only))
12/18/24/48 dB/oct
12/24/48 dB/oct
4th Order, 8th Order
Off, 20Hz-20KHz
0-58.65ms
0-1,365.31ms
0-29.32ms
0-682.65ms
-60dBu to +20dBu
1dB
Yes
Off, -50dBu to +20dBu
20Hz-12kHz
Off, -50dB to +12dB
Input
Automix assign per input
0.01sec to 2sec
Yes
Per channel if enabled
Level, auto-mixer level
24 bit
32-bit floating point
48kHz, 96kHz
19 x 3.5 x 8.5" (483 x 89 x 216mm)
10.5 lb (4.77kg)

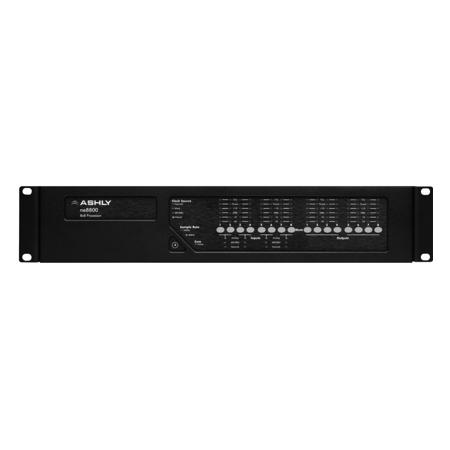

Where advanced audio processing meets network-enabled capabilities, the ne8800 Network Enabled Protea DSP Audio System Processor stands out. This high-performance processor, complete with 8-Ch AES3 Outputs and a CNM-2 CobraNet Option Card, is designed to streamline the connection and control of audio processors for networked systems.
The ne8800 is a key component of our Protea DSP series, which is renowned for its easy setup and control using the standard 10/100 Ethernet protocol and Protea ne Software. This eliminates the need for special outboard control units. The ne8800 model boasts an 8x8 analog line input/output format, with four option bays that support network audio, AES3, and mic input options.
At the heart of this processor is an extensive DSP signal processing library, powered by multiple SHARC 32-Bit processors. These processors offer sample rates of either 48kHz or 96kHz, ensuring high-quality audio output. The processing blocks include a versatile 8x8 matrix mixer, a comprehensive array of graphic, parametric, and all-pass equalization, and crossover filters. These filters include 8th-order Butterworth, Bessel, Linkwitz-Riley, and notched Linkwitz-Riley.
The Protea Software Suite enhances the functionality of the ne8800 with an advanced automatic feedback suppressor, FIR filter capability, gain sharing automatic microphone mixing, ambient noise sensing and level adjustment, autolevelers, compressors, matrix duckers, limiters, frequency-keyed noise gates, and signal delay up to 1,365ms on every channel. It also includes your choice of sinewave, pink or white noise generators.
The ne8800 is designed for seamless integration into your audio system. It features automatic DHCP network IP configuration for reduced network setup time, and multi-level software security with password access for a tamper-proof audio system. All programming is accomplished using standard 10/100 Ethernet or RS-232 protocol and Protea ne Software on a PC platform.
The ne8800 Network Enabled Protea DSP Audio System Processor is more than just a processor; it's a comprehensive solution for high-quality, networked audio processing. Whether you're a professional audio engineer or an audiophile, the ne8800 delivers the performance and versatility you need.
