Ashly nX4002 2-Channel Power Amplifier with Programmable Output
See all Ashly items

Ashly nX4002 2-Channel Power Amplifier with Programmable Output, 2x 400W at 2/4/8 Ohms, 20Hz-20kHz Frequency, 10k Ohms Input Impedance

SKU: ASNX4002

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Ashly nX4002 Specifications

  • Voltage Gain

    Selectable at 26dB, 32dB, 38dB, or 1.4V

  • Damping Factor

    >250 (8 Ohms load <1kHz)

  • Input High Pass Filter

    80Hz 2nd order

  • Distortion (SMPTE, typical)

    <0.5%

  • Distortion (THD-N, typical)

    <0.5% (8 Ohms, 10dB below rated power, 20Hz-20kHz)

  • Channel Separation

    -75dB (dB from full output, 1kHz)

  • Signal to Noise (20Hz-20kHz, unweighted)

    >111dB

  • Frequency Response

    20Hz-20kHz, +/-0.05dB

  • Balanced Input Connector

    Euroblock 3.5mm, 1/4" TRS and XLR Combo jack

  • Input Impedance

    10k Ohms

  • Maximum Input Level

    +21dBu

  • Speaker Output Connector

    Neutrik speakON

  • Remote DC Level Control

    Euroblock 3.5mm - Gnd, CV, V+ per input

  • Attenuators (per channel)

    Front panel and remote. Fully off = Mute

  • Amplifier Protection

    Inrush current limitation, temperature monitoring, output over-power protection, mains fuses

  • Airflow

    In through sides, Out through front

  • Cooling

    Continuously variable temperature controlled axial fan(s)

  • Environmental

    32 to 113 deg. F (0 to 45 deg. C) (noncondensing)

  • Front Panel LED Indicators 1

    White LED:
    POWER Switch: On, Off, Standby (flashing)
    Red LED:
    CLIP/MUTE: Per Channel: Clip at 1dB below full output / Mute
    PROTECT: On (fault condition or shut down), Off
    Green LED:
    SIGNAL: Per Channel: -18dB below rated output
    BRIDGE: Per Channel Pair: On, Off
    COM: On, for Ethernet data or Device ID
    CURRENT: Per Channel: Proportional to output

  • Front Panel LED Indicators 2

    Yellow LED:
    TEMP: Per Channel: On dim at 90% max operating temperature, full bright + protect at 100%
    SLEEP: On, amplifier is asleep from audio inactivity
    DISABLE: On, power switch & front panel attenuators are disabled

  • Power Requirements at 50Hz

    Nominal (Automatic Sensing SMPS): 120V AC
    Operating Range: 70-135V AC
    Minimum power-up: 85V AC

  • Power Requirements at 60Hz

    Nominal (Automatic Sensing SMPS): 240V AC
    Operating Range: 140-270V AC
    Minimum power-up: 170V AC

  • Power Cable Connector

    20A powerCON (32A powerCON 3.04 model only)

  • Channels

    2

  • Max Output Power (All channels Driven)

    2 Ohms: 400
    4 Ohms: 400W
    8 Ohms: 400

  • Low Z Output (All Channels Driven)

    4 Ohms: 800W
    8 Ohms: 800W

  • 70V, 100V Output (All Channels Driven)

    70V (Per Channel): 400W
    100V (per channel): 400W

  • Total Power Draw

    Sleep Mode: less than 1
    Standby Mode: 25
    Idle (no signal): 40

  • Current Draw

    Sleep Mode: 0.1A
    Standby Mode: 0.38A
    Idle (no signal): 0.70A (Total for all Channels, 120VAC, Divide by 2 for 240V)

  • Max Current Draw

    1/8 Max Power at 2 Ohms: 2.6A

  • Thermal Dissipation (BTU/hr)

    Sleep mode: < 3.4
    Standby mode: 85
    Idle (no signal): 136
    1/8 Max Power at 2 Ohms: 305

  • Dimensions (W x H x D)

    19 x 3.5 x 16.84" (48.26 x 8.89 x 42.77cm)

  • Weight

    21.5lbs (9.75kg)

About Ashly nX4002

The Ashly nx4002 2-Channel Power Amplifier with Programmable Output is capable of driving 2 Ohm loads at full power. The maximum rated output power 400W per channel at Low Z, 70V and 100V mode. There an auto - matic but defeatable sleep mode consuming <1W. A switch mode power supply auto-detect 120VAC or 240VAC mains and a Neutrik powerCON used for the AC cord. Each channel have selectable output mode of Low Z, 70V, or 100V, an 80Hz high-pass filter, input limiter and input gain settings of 26dB, 32dB, 38dB, or 1.4V. Each channel have remote DC level control. Input connectors Neutrik XLR/TRS combo jack and Euroblock, while output connectors Neutrik speakON.

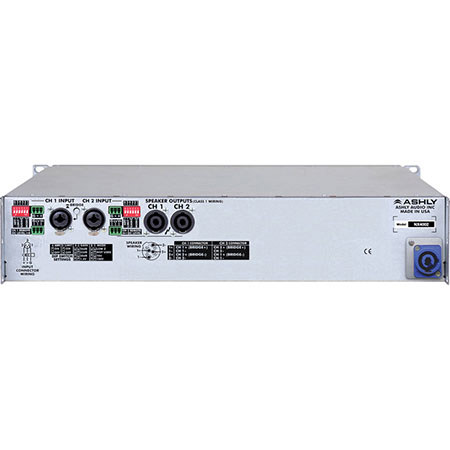

The unit have a front panel power switch and level controls that can be disabled. LEDs indicate Protect, Sleep, Disabled and Bridge mode status, as well as Temperature, Output Current, Output Signal and Clipping/Mute status per channel. The amplifier have temperature dependent variable speed forced-air cooling. The unit weigh <21.5 lbs (9.75kg), measure 19"W x 3.5"h X 16.8"D (483mm x 89mm x 428mm) and mount in a standard 19" rack.

Ashly nX4002 Features

  • Power-saving, Energy Management System (Ashly EMS) automatic less than 1W sleep-mode (defeatable)
  • Front panel power switch and level controls (can be disabled for security)
  • Rear panel DIP switches per channel for selection of high pass filter, limiter, input gain and High-Z or Low-Z speaker output configuration
  • Remote DC level control on each input channel
  • Extensive protection circuitry, continuously variable cooling fans
  • Multiple independent internal power supplies provide increased channel separation and reliability

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Energy Management System (Ashly EMS)
  • Front panel power switch and level controls
  • Rear panel DIP switches per channel
  • Remote DC level control on each input channel
  • Extensive protection circuitry, continuously variable cooling fans

What's in the box:

  • Ashly nX4002 2-Channel Power Amplifier with Programmable Output
  • Ashly 5 Year Warranty
