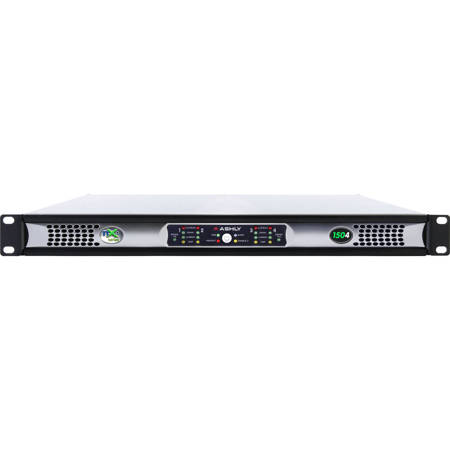

Ashly NXE1504 4-Channel Networkable Multi-Mode Power Amplifier with OPDante and OPDAC4 Option Cards

What sets the NXE1504 4-Channel Networkable Multi-Mode Power Amplifier apart is its advanced technology and high-quality performance. Designed by Ashly, a brand renowned for its superior audio equipment, this powerful amplifier is engineered to meet the stringent demands of live sound and fixed installation sound systems in large venues such as stadiums, arenas, performance venues, worship spaces, and convention centers.

The NXE1504 is part of the NX series, which offers 2 or 4-channel models in three different series: NX (base model series), NXE (networkable), and NXP (networkable + DSP). This model is equipped with Class-D Switching Amplifier Technology and a universal switch-mode power supply with Power Factor Correction (PFC) that operates from 70VAC to 270VAC, ensuring efficient and reliable performance.

One of the standout features of the NXE1504 is its Multi-Mode Operation with Selectable Outputs. This allows you to customize the output mode on each channel, with the DIP-switch configuration offering options for Low Impedance (2, 4, and 8 Ohm) or 25V, 70V, or 100V Constant Voltage.

The NXE1504 also boasts an energy-efficient Ashly EMS (Energy Management System) that provides an automatic sleep-mode drawing less than 1 Watt (defeatable). This feature not only saves power but also contributes to the longevity of the device.

For enhanced control, the NXE1504 offers Ethernet Control using Protea NE software, serial data control by Ashly programmable remotes or third-party controllers, and aux preamp outputs. It also features an instant standby mode, preset recall, fault condition logic outputs, and optional Dante, CobraNet, or AES3 digital audio capability (factory-installed).

The NXE1504 is also equipped with a Real-Time Clock with Event Scheduler, which allows for automatic execution of selected functions and tasks. This event scheduler is programmed from software and stored in the amplifier.

For added convenience, the NXE1504 can be controlled remotely via the free Ashly Remote app, offering custom design of secure wireless control over the network.

The NXE1504 is a 4-channel multi-mode amplifier capable of driving 2 Ohm loads at full power, with a maximum rated output power of 150W per channel at Low Z, 25V, 70V, and 100V modes. It features 3.5mm Euroblock input connectors and 7.62mm Euro-block output connectors, a front panel power switch, and rear level controls that can be disabled.

LED indicators provide status updates on Protect, Sleep, Disabled, and Bridge modes, as well as Temperature, Output Current, Output Signal, and Clipping/Mute status per channel. The unit also has optional factory-installed network audio or AES3 digital audio capability with the addition of a 4-Channel DAC card.

Designed with durability in mind, the NXE1504 features temperature-dependent variable speed forced-air cooling and weighs less than 13.0 lbs (5.9kg). It measures 19"W x 1.75"H x 14.54"D (483mm x 45mm x 369mm) and can be mounted in a standard 19" rack.

In summary, the NXE1504 4-Channel Networkable Multi-Mode Power Amplifier is a powerful, advanced, and efficient solution for high-quality sound in large venues.
