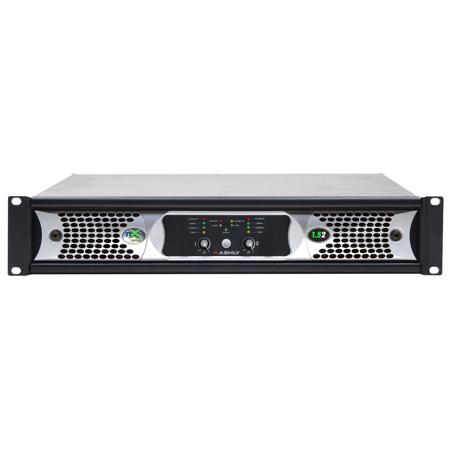

Ashly NXE1.52 2-Channel Networkable Multi-Mode Power Amplifier with CNM-2 CobraNet and OPDAC4 Option Cards

SKU: ASNXE152BC MFR: NXE1.52BC
Earn VIP Reward Points

Key Features

  • Experience powerful, clear audio with this 2-channel professional amplifier.
  • Get flexible connectivity with Ethernet control for seamless network integration.
  • Enjoy peace of mind with the amplifier's comprehensive protection circuitry.
  • Achieve optimal sound with selectable voltage gain and impedance matching.
  • Easily install this amplifier in any standard rack for studio or live use.
  • Rely on this amplifier's robust power output for demanding audio applications.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ashly NXE1.52 Specifications

  • No of channel

    2

  • Output

    For Max Output Power: Measured in Watts, Per Channel, Low Impedance Output, All Channels Driven: 2 Ohms: 1500 W
    4 Ohms: 1500W
    8 Ohms: 1250 W

    For Low Impedance Output: Measured in Watts, Bridge Mode, All Channels Driven
    4 Ohms: 3000 W

    8 Ohms:3000 W

  • Power Draw

    Sleep Mode: less than 1 W
    Standby Mode: 40 W
    Idle (No Signal): 55 W

  • Current Draw

    For 120 VAC
    Sleep Mode: 0.1
    Standby Mode: 0.70
    Idle (No Signal): 1.00

    Typical: 8.0

  • Dissipation

    Thermal Dissipation: Sleep Mode: <3.4 BTU/hr
    Standby Mode: 136 BTU/hr
    Idle (no signal): 187 BTU/hr
    Typical (1 / 8 Max Power): 850 BTU/hr

  • Voltage Gain

    Selectable at 26dB, 32dB, 38dB, or 1.4V

  • Damping Factor

    >250 (8 Ohms load <1kHz)

  • Input High Pass Filter

    80Hz 2nd order

  • Distortion (SMPTE, typical)

    <0.5%

  • Distortion (THD-N, typical)

    <0.5% (8 Ohms, 10dB below rated power, 20Hz-20kHz)

  • Channel Separation

    -75dB (dB from full output, 1kHz)

  • Signal-to-Noise (20Hz-20kHz)

    >111dB

  • Frequency Response

    20Hz-20kHz, +/-0.05dB

  • Balanced Input Connector

    Euroblock 3.5mm, 1/4" TRS and XLR Combo jack

  • Input Impedance

    10k Ohms

  • Maximum Input Level

    +21dBu

  • Speaker Output Connector

    Neutrik speakON

  • Control Network

    Compatible with standard 100MB Ethernet

  • AUX Output Connector

    Balanced Euroblock 3.5mm

  • AUX Output Maximum Level

    +21dBu

  • Remote Standby Contact Closure

    Euroblock 3.5mm, close contact to GND for standby mode

  • Preset Recall Contact Closure

    Euroblock 3.5mm, close contact to GND for preset 1-4 recall

  • Data Connection

    Euroblock 3.5mm - Gnd, +18V, In, Out

  • Fault Condition Logic Outputs

    Fault indicated by loss of 1Hz "heartbeat" pulse signal

  • Remote DC Level Control

    Euroblock 3.5mm - Gnd, CV, V+ per input

  • Attenuators (per channel)

    Front panel, software, offset link group and remote. Fully off = Mute

  • Amplifier Protection

    Inrush current limitation, temperature monitoring, output over-power protection, mains fuses

  • Cooling

    Continuously variable temperature controlled axial fan(s)

  • Environmental

    32-113 deg F, (0-45 deg, C) (noncondensing)

  • Front Panel LED Indicators

    POWER (white): Switch: On, Off, Standby (flashing)
    PROTECT (red): On (fault condition or shut down), Of
    SLEEP (blue): On, amplifier is asleep from audio inactivity
    DISABLE (yellow): On, power switch & attenuators are disabled
    COM (green): On, for Ethernet data or Device ID

  • Front Panel LED Indicators (Contd.)

    Per Channel CLIP/MUTE (red): Clip at 1dB below rated output / Mute
    SIGNAL (green): -18dB below rated output
    CURRENT (green): Brightness is proportional to output current
    TEMP (yellow): On dim at 90% max operating temperature, On full bright + protect at 100%
    BRIDGE (green): Per Channel Pair, On, Off

  • Power Requirements Nominal

    110-120VAC
    220-240VAC (Automatic Sensing SMPS)

  • Power Requirements Operating Range

    70-135VAC at 50Hz
    140-270VAC at 60Hz

  • Power Requirements Minimum power-up

    85VAC at 50Hz
    170VAC at 60Hz

  • Power Requirements Cable Connector

    20A powerCON (32A powerCON 3.04 model only)

  • Dimensions (W x H x D)

    19 x 3.5 x 16.84" (482.6 x 88.9 x 427.73mm)

  • Weight

    22.7 lb (10.3kg)

About Ashly NXE1.52

A powerhouse of sound amplification, the NXE1.52 2-Channel Networkable Multi-Mode Power Amplifier with Ethernet Control, CNM-2 CobraNet, and OPDAC4 Option Cards is engineered to cater to the rigorous demands of live sound and fixed installation sound systems. This versatile device is perfect for large-scale venues such as stadiums, arenas, performance venues, worship spaces, and convention centers.

The NXE1.52 is part of the NX series, which offers 2 or 4-channel models in three different variants: NX (base model series), NXE (networkable), and NXP (networkable + DSP). This model is networkable, providing seamless integration into your existing sound system.

Equipped with Ethernet Control using Protea NE software, this amplifier allows for efficient and reliable control. It also supports serial data control by Ashly programmable remotes or third-party controllers, enhancing its versatility. The device also features aux preamp outputs, instant standby mode, preset recall, and fault condition logic outputs.

The NXE1.52 amplifier is also compatible with optional Dante, CobraNet, or AES3 digital audio capability (factory-installed), providing a wide range of digital audio options. A Real-Time Clock with Event Scheduler allows for automatic execution of selected functions and tasks, programmed using PneS software and stored in the amplifier.

For remote control, the amplifier is compatible with the Ashly Remote free app, allowing for custom design of secure wireless control over a network. The NXE1.52 features Class-D Switching Amplifier Technology and a switch-mode power supply, which automatically detects 110 - 120VAC or 220 - 240VAC operation.

The Multi-Mode Operation with Selectable Outputs on each channel lets you choose the desired output mode. Set the DIP-switch configuration for Low Impedance (2, 4, and 8 Ohm), or Constant Voltage (70V or 100V), and you're ready to go.

The NXE1.52 is equipped with the power-saving Ashly EMS (Energy Management System), which provides an automatic sleep-mode drawing less than 1 Watt (defeatable). With multiple internal power supplies, the NXE1.52 ensures increased channel separation and reliability.

The NXE1.52 is a 2-channel multi-mode amplifier capable of driving 2 Ohm loads at full power. The maximum rated output power is 1,500W per channel at Low Z and 70V modes, and 1,250W in 100V mode. The unit features a front panel power switch and level controls that can be disabled. LEDs indicate various statuses including Protect, Sleep, Disabled, Com, and Bridge mode, as well as Temperature, Output Current, Output Signal, and Clipping/Mute status per channel.

The amplifier has temperature-dependent variable speed forced-air cooling, ensuring optimal performance. The unit is lightweight, weighing less than 22.7 lbs (10.3kg), and measures 19"W x 3.5"H x 16.8"D (483mm x 89mm x 428mm), making it suitable for mounting in a standard 19" rack.

Ashly NXE1.52 Features

  • Selectable 80Hz Hipass filter, limiter, and input gain per channel, via rear panel
  • Remote DC level control per channel
  • Extensive protection circuitry, continuously variable cooling fan
  • Ethernet port for software control and monitoring of amplifier functions, with front panel COM activity LED
  • Serial data port available for Ashly WR-5 and RD-8C programmable remote control (optional RS-232 converter INA-1 available for third party controllers)
  • Instant Standby Mode, 30% reduction in idle power consumption, triggered by contact closure, software control, or event scheduler
  • Preset recall via contact closure, software control, remote control, or event scheduler
  • Programmable power-on delay
  • Aux preamp line outputs for driving other amplifiers
  • Fault condition logic outputs per channel
  • Neutrik Combo XLR - 1/4" TRS jack plus Euroblock input connectors
  • Neutrik speakON twist locking loudspeaker connectors
  • Neutrik powerCON detachable AC mains connector
  • Safety/Compliance: TUV, CE, FCC, RoHS

Warranty Information

This product has a limited warranty of 60 months for parts and 60 months for labor.

Key Features

  • Experience powerful, clear audio with this 2-channel professional amplifier.
  • Get flexible connectivity with Ethernet control for seamless network integration.
  • Enjoy peace of mind with the amplifier's comprehensive protection circuitry.
  • Achieve optimal sound with selectable voltage gain and impedance matching.
  • Easily install this amplifier in any standard rack for studio or live use.
  • Rely on this amplifier's robust power output for demanding audio applications.

What's in the box:

  • NXE1.52 2-Channel Networkable Multi-Mode Power Amplifier with Ethernet Control
  • Ashly 5 Year Limited Warranty
