For Max Output Power: Measured in Watts, Per Channel, Low Impedance Output, All Channels Driven: 2 Ohms: 1500 W
4 Ohms: 1500W
8 Ohms: 1250 W
For Low Impedance Output: Measured in Watts, Bridge Mode, All Channels Driven
4 Ohms: 3000 W
8 Ohms:3000 W
Sleep Mode: less than 1 W
Standby Mode: 70 W
Idle (No Signal): 100 W
For 120 VAC
Sleep Mode: 0.1
Standby Mode: 1.30
Idle (No Signal): 1.85
Typical: 16.0
Thermal Dissipation: Sleep Mode: <3.4 BTU/hr
Standby Mode: 238 BTU/hr
Idle (no signal): 340 BTU/hr
Typical (1 / 8 Max Power): 1700 BTU/hr
Selectable at 26dB, 32dB, 38dB, or 1.4V
>250 (8 Ohms load <1kHz)
80Hz 2nd order
<0.5%
<0.5% (8 Ohms, 10dB below rated power, 20Hz-20kHz)
-75dB (dB from full output, 1kHz)
>111dB
20Hz-20kHz, +/-0.05dB
Euroblock 3.5mm, 1/4" TRS and XLR Combo jack
10k Ohms
+21dBu
Neutrik speakON
Compatible with standard 100MB Ethernet
Balanced Euroblock 3.5mm
+21dBu
Euroblock 3.5mm, close contact to GND for standby mode
Euroblock 3.5mm, close contact to GND for preset 1-4 recall
Euroblock 3.5mm - Gnd, +18V, In, Out
Fault indicated by loss of 1Hz "heartbeat" pulse signal
Euroblock 3.5mm - Gnd, CV, V+ per input
Front panel, software, offset link group and remote. Fully off = Mute
Inrush current limitation, temperature monitoring, output over-power protection, mains fuses
Continuously variable temperature controlled axial fan(s)
32-113 deg F, (0-45 deg, C) (noncondensing)
POWER (white): Switch: On, Off, Standby (flashing)
PROTECT (red): On (fault condition or shut down), Of
SLEEP (blue): On, amplifier is asleep from audio inactivity
DISABLE (yellow): On, power switch & attenuators are disabled
COM (green): On, for Ethernet data or Device ID
Per Channel CLIP/MUTE (red): Clip at 1dB below rated output / Mute
SIGNAL (green): -18dB below rated output
CURRENT (green): Brightness is proportional to output current
TEMP (yellow): On dim at 90% max operating temperature, On full bright + protect at 100%
BRIDGE (green): Per Channel Pair, On, Off
110-120VAC
220-240VAC (Automatic Sensing SMPS)
70-135VAC at 50Hz
140-270VAC at 60Hz
85VAC at 50Hz
170VAC at 60Hz
20A powerCON (32A powerCON 3.04 model only)
19 x 3.5 x 16.84" (482.6 x 88.9 x 427.73mm)
28.7 lb (13kg)

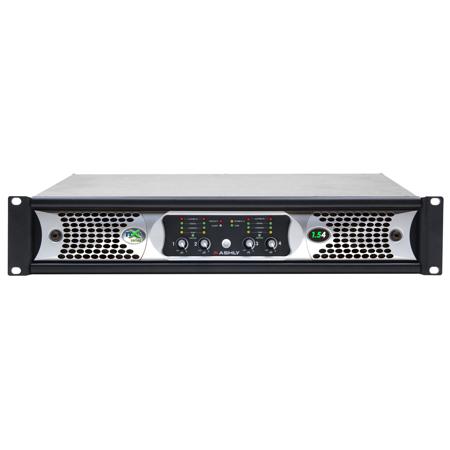

Where high-quality sound and advanced technology meet, you'll find the NXE1.54 4-Channel Networkable Multi-Mode Power Amplifier with Ethernet Control, OPDante, and OPDAC4 Option Cards. This powerful amplifier is designed to meet the rigorous demands of live sound and fixed installation sound systems, making it an ideal choice for stadiums, arenas, performance venues, worship spaces, and convention centers.
The NXE1.54 is part of Ashly's NX series, which offers 2 or 4-channel models in three amplifier series: NX (base model series), NXE (networkable), and NXP (networkable + DSP). This model is networkable, allowing for easy remote control and monitoring of the amplifier's settings and performance.
The NXE1.54 features Ethernet Control using Protea NE software, enabling seamless integration into your existing network. It also supports serial data control by Ashly programmable remotes or third-party controllers, providing additional flexibility in controlling your sound system.
This advanced amplifier also boasts a Real-Time Clock with Event Scheduler, allowing for automatic execution of selected functions and tasks. The event scheduler is programmed using PneS software and stored in the amplifier, ensuring a smooth and efficient operation.
The NXE1.54 is also equipped with Ashly's innovative Class-D Switching Amplifier Technology, featuring a switch-mode power supply that automatically detects 110 - 120VAC or 220 - 240VAC operation. This makes the NXE1.54 one of the lightest in its class, without compromising on power or performance.
With selectable outputs on each channel, you can choose the desired output mode. Set the DIP-switch configuration for Low Impedance (2, 4, and 8 Ohm), or Constant Voltage (70V or 100V), and you're set to go. This efficient amplifier also features Ashly EMS (Energy Management System), which provides an automatic sleep-mode drawing less than 1 Watt (defeatable), contributing to energy efficiency.
The NXE1.54 is designed with multiple internal power supplies, providing increased channel separation and reliability. It is capable of driving 2 Ohm loads at full power, with a maximum rated output power of 1,500W per channel at Low Z and 70V modes, and 1,250W in 100V mode.
This durable amplifier is designed with temperature-dependent variable speed forced-air cooling, ensuring it stays cool even under heavy use. It weighs less than 28.7 lbs (13kg), measures 19"W x 3.5"H x 16.8"D (483mm x 89mm x 428mm), and mounts in a standard 19" rack, making it a compact and convenient addition to any sound system.
In conclusion, the NXE1.54 4-Channel Networkable Multi-Mode Power Amplifier with Ethernet Control, OPDante, and OPDAC4 Option Cards is a powerful, efficient, and high-quality choice for any professional sound system.
