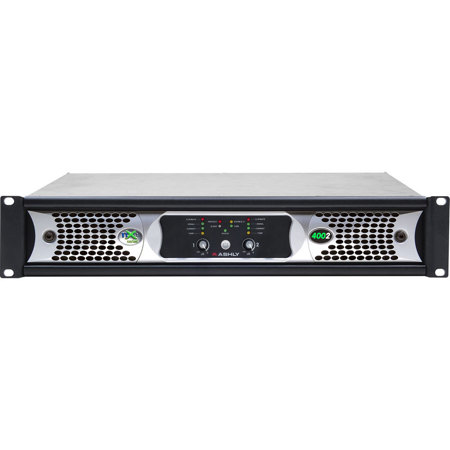

Ashly NXE4002 2-Channel Networkable Multi-Mode Power Amplifier with CNM-2 CobraNet and OPDAC4 Cards

NX Multi-Mode Power Amplifiers are designed to meet the most demanding live sound environments and fixed audio installations anywhere-performance venues, stadiums, arenas, convention centers as well as schools, store fronts, and worship spaces.

Available as three separate amplifier series, NX offers 2 or 4-channel models as NX (base model series), NXE (network-able), or NXP (networkable + DSP).

Ethernet Control using Protea NE software
Also, serial data control by Ashly programmable remotes or third party controllers, aux preamp outputs, instant standby mode, preset recall, fault condition logic outputs, optional Dante, CobraNet, or AES3 digital audio capability (factory-installed).

Real-Time Clock with Event Scheduler
Assign automatic execution of selected functions and tasks. The event scheduler is programmed using PneS software and stored in the amplifier.

Ashly Remote Control via iPad app
Use our Ashly Remote free app available for custom design of secure wireless control over a network.

Class-D Switching Amplifier Technology
NXE features a switch-mode power supply which automatically detects 110 - 120VAC or 220 - 240VAC operation and makes NXE one of the lightest in its class.

Multi-Mode Operation
Selectable Outputs on each channel allow you to choose the desired output mode. Set the DIP-switch configuration for Low Impedance (2, 4, and 8 Ohm), or Constant Voltage (70V or 100V) and you're set to go.

Energy Efficiency
NXE has power-saving Ashly EMS (Energy Management System) which provides an automatic sleep-mode drawing less than 1 Watt (defeatable).

Multiple Internal Power Supplies
NXE provides increased channel separation and reliability.

nXe4002: Architect & Engineering Specs
The unit shall be a 2 channel multi-mode amplifier capable of driving 2 Ohm loads at full power. The maximum rated output power shall be 400W per channel at Low Z, 70V, and 100V mode. There shall be an automatic but defeatable sleep mode consuming <1W, and instant standby mode controlled by contact closure or software. A switch mode power supply shall auto-detect 110 - 120VAC or 220 - 240VAC mains, and a Neutrik powerCON shall be used for the AC cord. Each channel shall have selectable output mode of Low Z, 70V, or 100V, an 80Hz high-pass filter, input limiter, and input gain settings of 26dB, 32dB, 38dB, or 1.4V.

Each channel shall have remote DC level control. Input connectors shall be Neutrik XLR/TRS combo jack and Euroblock, while output connectors shall be Neutrik speakON. The unit shall have a front panel power switch and level controls that can be disabled. LEDs shall indicate Protect, Sleep, Disabled, Com, and Bridge mode status, as well as Temperature, Output Current, Output Signal, and Clipping/Mute status per channel. The unit shall have Ethernet control with a real-time clock for event scheduling. The unit shall have serial data remote control, aux preamp outputs, preset control, fault condition logic outputs, optional network audio and AES3 digital audio capability with the addition of a 4-Channel DAC card.

The amplifier shall have temperature dependent variable speed forced-air cooling. The unit shall weigh <22.2 lbs (10.1kg), measure 19"W x 3.5"H x 16.8"D (483mm x 89mm x 428mm), and mount in a standard 19" rack. There shall be a five year warranty for units purchased in the US. No other unit shall be acceptable unless all specifications represented herein are met or exceeded and submitted in writing by an independent testing agent
