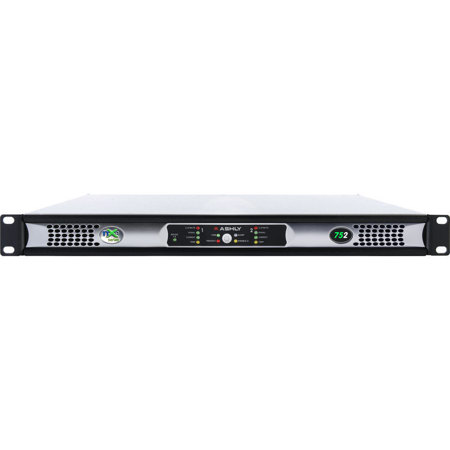

Ashly NXE752 2-Channel Networkable Multi-Mode Power Amplifier with Ethernet Control, CNM-2 CobraNet and OPDAC4 Cards

SKU: ASNXE752BC MFR: NXE752BC
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with the Ashly NXE752 professional amplifier.
  • Harness 75W per channel for crystal-clear audio with this multi-mode power amplifier.
  • Integrate seamlessly with Ethernet control for networked audio system management.
  • Enjoy reliable performance with Ashly's trusted brand reputation and 5-year warranty.
  • Optimize audio setups using CobraNet cards for advanced digital audio networking.
  • Utilize the NXE752 for installed sound, delivering pristine audio in any environment.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ashly NXE752 Specifications

  • Channels

    2

  • Max output power

    2 Ohms: 75W
    4 Ohms: 75W
    8 Ohms: 75W
    Low Impedance Output Mode, All Channels Driven at Rated Load

  • Low Impedance Output Mode, Bridged O/P

    4 Ohms: 150W
    8 Ohms: 150W
    All Channels Driven at Rated Load

  • Total AC Mains Power Draw

    Sleep Mode: <1W
    Standby Mode: 15W
    Idle (no signal): 33W
    1/8 Max Power at 2 Ohms: 82W
    Typical input, all channels driven, 120VAC

  • Current Draw

    Sleep Mode: 94mA
    Standby Mode: 0.2
    Idle (no input signal): 0.35
    1/8 Max Power at 2 Ohms: 0.76
    Typical Input, Total for all Channels, 120VAC, Divide by 2 for 240VAC

  • Thermal Dissipation

    Sleep mode: 2.14 BTU/hr
    Standby mode: 51 BTU/hr
    Idle (no input signal): 112 BTU/hr
    1/8 Max Power at 2 Ohms: 215 BTU/hr
    Typical Input, Total for all Channels

  • Voltage Gain

    Selectable at 26dB, 32dB, 38dB, or 1.4V

  • Damping Factor

    >250 (8 Ohms load <1kHz)

  • Input High Pass Filter

    80Hz 2nd order

  • Distortion (SMPTE, typical)

    <0.5%

  • Distortion (THD-N, typical)

    <0.5% (8 Ohms, 10dB below rated power, 20Hz-20kHz)

  • Channel Separation

    -75dB (dB from full output, 1kHz)

  • Signal-to-Noise 20Hz-20kHz

    >96dB (Gain at 26dB)

  • Frequency Response

    20Hz-20kHz, +/-0.05dB

  • Balanced Input Connector

    Euroblock 3.5mm

  • Input Impedance

    10k Ohms

  • Maximum Input Level

    +21dBu

  • Speaker Output Connector

    Euroblock 7.62mm

  • Control Network

    RJ-45 connector, 100MB Ethernet

  • AUX Output Connector

    Balanced Euroblock 3.5mm

  • AUX Output Maximum Level

    +21dBu

  • Remote Standby Contact Closure

    Euroblock 3.5mm, close contact pin to ground (G) for standby mode

  • Preset Recall Contact Closure

    Euroblock 3.5mm, close contact to ground (G) for preset 1-4 recall

  • Data Connection

    Euroblock 3.5mm - Gnd, +18V, Data Out, Data In

  • Fault Condition Logic Outputs

    Euroblock 3.5mm - fault indicated by loss of 1Hz "heartbeat" pulse signal

  • Remote DC Level Control

    Euroblock 3.5mm - Gnd, CV, V+ per input

  • Attenuators (per channel)

    Rear panel, software, offset link group, remote control. Fully off = Mute

  • Amplifier Protection

    Shorted output power limiting, over-temperature, DC-output
    power-supply fault, mains-fuses & inrush-current limiting

  • Cooling

    continuously variable temperature controlled fan

  • Environmental

    32 to 120 Degree F (0 to 49 Degree C) non-condensing

  • Nominal Voltage Input

    100 - 240VAC

  • Operating Range

    70 - 270VAC

  • Minimum power-up

    70VAC

  • Power Supply Type

    SMPS with active PFC (Power Factor Correction)

  • AC Mains Line Cord Connector

    Detachable Nema 5-15 for USA (May vary for export)

  • Front Panel LED Indicators

    POWER (white): Switch: On, Off, Standby (flashing)
    PROTECT (red): On (fault condition or shut down), Of
    SLEEP (blue): On, amplifier is asleep from audio inactivity
    DISABLE (yellow): On, power switch & attenuators are disabled
    COM (green): On, for Ethernet data or Device ID

  • Front Panel LED Indicators: Per Channel

    CLIP/MUTE (red): Clip at 1dB below rated output / Mute
    SIGNAL (green): -18dB below rated output
    CURRENT (green): Brightness is proportional to output current
    TEMP (yellow): On dim at 90% max operating temperature, On full bright + protect at 100%
    BRIDGE (green): Per Channel Pair, On, Off

  • Dimensions (W x H x D)

    19 x 17.5 x 14.54" (48.26 x 44.45 x 36.93cm)

  • Weight

    11.9 lb (5.40kg)

About Ashly NXE752

Be at the forefront of audio innovation with the NXE752 2-Channel Networkable Multi-Mode Power Amplifier, a cutting-edge solution designed to deliver exceptional sound quality and versatility for live sound and fixed installation systems. This powerhouse is ideal for a wide range of venues, including stadiums, arenas, performance spaces, worship centers, and convention halls.

The NXE752 stands out with its advanced Class-D Switching Amplifier Technology, ensuring high efficiency and superior audio performance. Its universal switch-mode power supply, equipped with Power Factor Correction (PFC), operates seamlessly across a broad voltage range from 70VAC to 270VAC, making it a reliable choice for global use.

Experience unparalleled flexibility with the Multi-Mode Operation feature. Each channel's selectable outputs allow for easy configuration to match your specific needs. Whether you're working with Low Impedance loads (2, 4, and 8 Ohms) or Constant Voltage systems (25V, 70V, or 100V), setting up is straightforward with the DIP-switch configuration.

The NXE752 is not only powerful but also energy-conscious. The NXP series includes the Ashly EMS (Energy Management System), which intelligently reduces power consumption by entering an automatic sleep mode that draws less than 1 Watt when not in use, which can be disabled if preferred.

Take control of your audio system with ease using Ethernet Control and the intuitive Protea NE software. For added versatility, the amplifier supports serial data control via Ashly programmable remotes or third-party controllers. The unit also features auxiliary preamp outputs, instant standby mode, preset recall, and fault condition logic outputs for comprehensive control.

Expand your digital audio capabilities with optional factory-installed Dante, CobraNet, or AES3 cards, including the OPDAC4 4-Channel DAC card, enhancing your system's connectivity and audio transmission quality.

The NXE752 is designed with a Real-Time Clock and an Event Scheduler, allowing you to automate functions and tasks with precision and reliability. These scheduled events are easily programmed and stored directly in the amplifier.

For remote control, leverage the convenience of the Ashly Remote app for iPad, offering secure wireless control over your network, ensuring you can manage your system from anywhere in the venue.

Architecturally engineered for performance, the NXE752 is a robust 2-channel multi-mode amplifier capable of driving 2 Ohm loads at full power, with a maximum rated output power of 75W per channel across all modes. The unit features a front panel power switch, rear level controls with disable function, and a comprehensive LED status indicator for each channel.

Connectivity is made simple with 3.5mm Euroblock input connectors and 7.62mm Euroblock output connectors. The amplifier's cooling system is temperature-dependent with variable speed forced-air, ensuring reliable operation under varying conditions.

Designed for professional installations, the NXE752's sleek form factor measures 19"W x 1.75"H x 14.54"D, allowing for standard 19" rack mounting, and weighs less than 11.9 lbs (5.4kg), facilitating easy integration into any audio setup.

Elevate your audio experience with the NXE752 2-Channel Networkable Multi-Mode Power Amplifier, where sophisticated design meets unparalleled functionality.

Ashly NXE752 Features

  • Selectable 80Hz 2nd-order Hi-pass filter, limiter, and input gain per channel
  • Remote DC level control per channel
  • Extensive protection circuitry, continuously variable cooling fan
  • Ethernet port for software control and monitoring of amplifier functions, with front panel COM activity LED
  • Serial data port available for Ashly WR-5 programmable remote control (optional RS-232 converter INA-1 available for third party controllers)
  • Instant Standby Mode, 40% reduction in idle power consumption, triggered by contact closure, software control, or event scheduler
  • Preset recall via contact closure, software control, remote control, or event scheduler
  • Programmable power-on delay
  • Aux preamp line outputs for driving other amplifiers
  • Fault condition logic outputs per channel
  • Euroblock input connectors
  • Euroblock loudspeaker connectors
  • Detachable AC mains line-cord connector
  • Safety/Compliance: TUV (pending), CE, FCC, RoHS

Warranty Information

This product has a limited warranty of 60 months for parts and 60 months for labor.

Key Features

  • Experience superior sound quality with the Ashly NXE752 professional amplifier.
  • Harness 75W per channel for crystal-clear audio with this multi-mode power amplifier.
  • Integrate seamlessly with Ethernet control for networked audio system management.
  • Enjoy reliable performance with Ashly's trusted brand reputation and 5-year warranty.
  • Optimize audio setups using CobraNet cards for advanced digital audio networking.
  • Utilize the NXE752 for installed sound, delivering pristine audio in any environment.

What's in the box:

  • NXE752 2-Channel Networkable Multi-Mode Power Amplifier with Ethernet Control
  • Ashly 5 Year Limited Warranty
