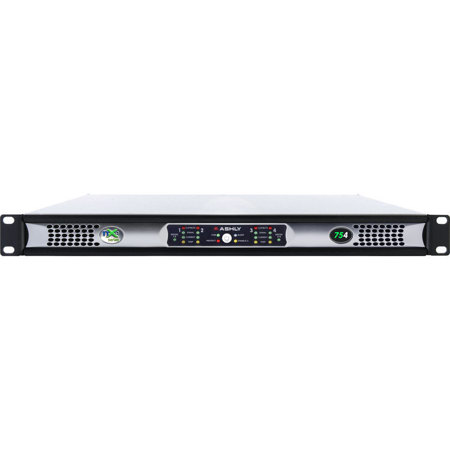

Ashly NXE754 4-Channel Networkable Multi-Mode Power Amplifier with Ethernet Control, CNM-2 CobraNet and OPDAC4 Cards

The NXE754 4-Channel Networkable Multi-Mode Power Amplifier with Ethernet Control, CNM-2 CobraNet, and OPDAC4 Cards is a powerful and advanced solution designed to cater to the most demanding live sound and fixed installation sound systems. This high-quality amplifier is ideal for large-scale applications such as stadiums, arenas, performance venues, worship spaces, and convention centers.

The NXE754 is part of three amplifier series, including the NX (base model series), NXE (networkable), and NXP (networkable + DSP). It stands out with its Class-D Switching Amplifier Technology and a universal switch-mode power supply with Power Factor Correction (PFC) that operates from 70VAC to 270VAC.

This efficient amplifier offers Multi-Mode Operation Selectable Outputs, allowing you to choose the desired output mode on each channel. You can easily set the DIP-switch configuration for Low Impedance (2, 4, and 8 Ohm), or 25V, 70V, or 100V Constant Voltage.

The NXE754 also features the power-saving Ashly EMS (Energy Management System) which provides an automatic sleep-mode drawing less than 1 Watt (defeatable). It offers Ethernet Control using Protea NE software, serial data control by Ashly programmable remotes or third-party controllers, aux preamp outputs, instant standby mode, preset recall, and fault condition logic outputs.

This durable amplifier is also equipped with a Real-Time Clock with Event Scheduler for automatic execution of selected functions and tasks. The event scheduler is programmed from software and stored in the amplifier. You can also enjoy the convenience of Ashly Remote Control via the iPad app.

The NXE754 is a 4-channel multi-mode amplifier capable of driving 2 Ohm loads at full power, with a maximum rated output power of 75W per channel at Low Z, 25V mode, 70V mode, and 100V mode. It features 3.5mm Euroblock input connectors and 7.62mm Euroblock output connectors. The front panel power switch and rear level controls can be disabled, and LEDs indicate various statuses.

The unit is also equipped with optional factory-installed network audio or AES3 digital audio capability with the addition of a 4-Channel DAC card. The amplifier has temperature-dependent variable speed forced-air cooling. It weighs less than 13.0 lbs (5.9kg), measures 19"W x 1.75"H x 14.54"D (483mm x 45mm x 369mm), and mounts in a standard 19" rack.
