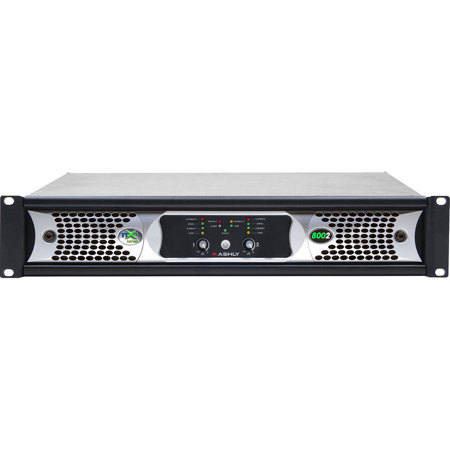

Ashly NXE8002 2-Channel Networkable Multi-Mode Power Amplifier with CNM-2 CobraNet and OPDAC4 Cards

Overcome any audio challenge with the NXE8002 2-Channel Networkable Multi-Mode Power Amplifier. This high-performance amplifier is engineered to meet the rigorous demands of live sound environments and fixed audio installations, making it an ideal choice for performance venues, stadiums, arenas, convention centers, schools, storefronts, and worship spaces.

The NXE8002 is part of the NX series, which includes the base model NX, the networkable NXE, and the networkable plus DSP NXP. This model stands out with its Ethernet Control using Protea NE software, enabling seamless integration into your existing network. It also supports serial data control by Ashly programmable remotes or third-party controllers, enhancing its versatility.

This power amplifier is equipped with aux preamp outputs, instant standby mode, preset recall, and fault condition logic outputs. It also offers optional Dante, CobraNet, or AES3 digital audio capability, which can be factory-installed for your convenience.

Stay on top of your schedule with the Real-Time Clock with Event Scheduler. This feature allows automatic execution of selected functions and tasks, programmed using PneS software and stored directly in the amplifier. You can also enjoy the convenience of Ashly Remote Control via the free iPad app, designed for custom secure wireless control over a network.

The NXE8002 utilizes Class-D Switching Amplifier Technology and features a switch-mode power supply, which automatically detects 110 - 120VAC or 220 - 240VAC operation. This makes the NXE8002 one of the lightest amplifiers in its class.

Choose your desired output mode with the Multi-Mode Operation Selectable Outputs on each channel. Simply set the DIP-switch configuration for Low Impedance (2, 4, and 8 Ohm), or Constant Voltage (70V or 100V) to get started.

The NXE8002 also boasts the power-saving Ashly EMS (Energy Management System), which provides an automatic sleep-mode drawing less than 1 Watt. This feature can be defeated if desired.

Experience increased channel separation and reliability with the NXE8002's multiple internal power supplies. This 2-channel multi-mode amplifier is capable of driving 2 Ohm loads at full power, with a maximum rated output power of 800W per channel at Low Z, 70V, and 100V mode.

The NXE8002 is designed with Neutrik XLR/TRS combo jack and Euroblock input connectors, and Neutrik speakON output connectors. It also features a front panel power switch and level controls that can be disabled, and LEDs that indicate Protect, Sleep, Disabled, Com, and Bridge mode status, as well as Temperature, Output Current, Output Signal, and Clipping/Mute status per channel.

The NXE8002 is equipped with Ethernet control and a real-time clock for event scheduling. It also offers serial data remote control, aux preamp outputs, preset control, fault condition logic outputs, and optional network audio and AES3 digital audio capability with the addition of a 4-Channel DAC card.

This amplifier is cooled by a temperature-dependent variable speed forced-air system, ensuring it stays cool even under heavy use. The unit measures 19"W x 3.5"H x 16.8"D and weighs less than 22.2 lbs, making it easy to mount in a standard 19" rack.

In conclusion, the NXE8002 2-Channel Networkable Multi-Mode Power Amplifier with Ethernet Control, CNM-2 CobraNet, and OPDAC4 Cards is a versatile, high-performance solution for any audio installation.
