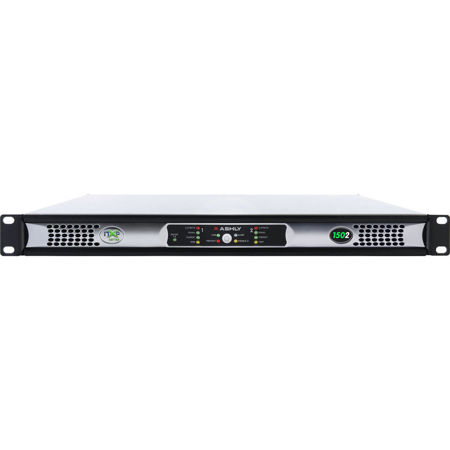

Ashly NXP Series 2-Channel 150W Networkable Multi-Mode Power Amplifier with Protea DSP Software Suite

An exceptional addition to any professional audio setup, the NXP Series 2-Channel 150W Networkable Multi-Mode Power Amplifier with Protea DSP Software Suite is meticulously engineered to meet the rigorous demands of live sound and fixed installation sound systems. This versatile amplifier is an ideal choice for a variety of settings, including stadiums, arenas, performance venues, worship spaces, and convention centers.

The NXP amplifier boasts a selectable 80Hz 2nd-order Hi-pass filter, limiter, and input gain per channel, offering precise control over your audio output. Its remote DC level control per channel and extensive protection circuitry ensure reliable, uninterrupted performance. The amplifier also features a continuously variable cooling fan to maintain optimal operating temperatures.

This networkable amplifier is equipped with an Ethernet port for software control and monitoring of amplifier functions, complete with a front panel COM activity LED for easy status checks. It also offers a serial data port for compatibility with Ashly WR-5 and RD-8C programmable remote controls. An optional RS-232 converter INA-1 is available for integration with third-party controllers.

The NXP amplifier's Instant Standby Mode offers a 40% reduction in idle power consumption, triggered by contact closure, software control, or event scheduler. This energy-efficient design is complemented by Ashly's EMS (Energy Management System), which provides an automatic sleep mode drawing less than 1 Watt.

The amplifier's comprehensive software-controlled DSP includes dynamics, gain, equalization, matrix mixer, crossover, delay, and metering. For added convenience, select DSP functions can be controlled via an iPad, including gain, matrix, A/B source select, PEQ filter level, and meters.

The NXP amplifier also features precision swept load impedance monitoring of individual amplifier channels for remote diagnosis of speaker problems, a signal generator function for test and noise masking, and remote gain and zone control with neWR-5 and FR-8/FR-16 programmable networked remotes.

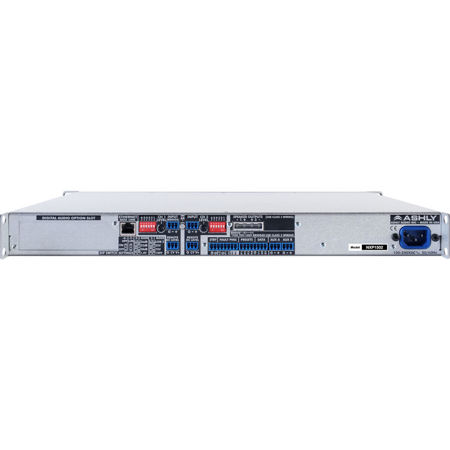

The NXP Series 2-Channel 150W Networkable Multi-Mode Power Amplifier with Protea DSP Software Suite is equipped with Euroblock input and loudspeaker connectors for easy setup. It also features a detachable AC mains line-cord connector for added safety and convenience. This amplifier is compliant with cTUVus (pending), CE, FCC, and RoHS standards, ensuring its quality and reliability.

Experience the power and versatility of Class-D Switching Amplifier Technology with the NXP amplifier. Its universal switch-mode power supply with Power Factor Correction (PFC) operates from 70VAC to 270VAC, offering flexible power options. The amplifier's Multi-Mode Operation Selectable Outputs allow you to choose the desired output mode on each channel, with options for Low Impedance (2, 4, and 8 Ohm) or 25V, 70V, or 100V Constant Voltage.

The NXP amplifier also offers real-time clock with event scheduler for automatic execution of selected functions and tasks, aux preamp line outputs for driving other amplifiers, fault condition logic outputs per channel, and optional Dante, CobraNet, or AES3 digital audio capability (factory-installed). Use the free Ashly Remote app for custom design of secure wireless control over the network. The amplifier also supports 32-bit SHARC DSP Processing at 48kHz or 96kHz sample rates, and is FIR Filter-Ready, allowing you to load a speaker manufacturer's .fir or .csv file for precision tuning.
