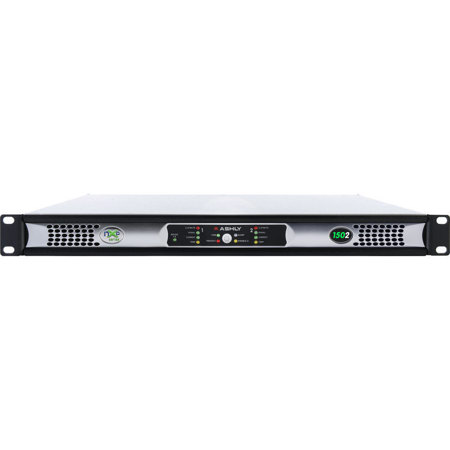

Ashly NXP1502 2-Channel Networkable Multi-Mode Power Amplifier with Protea DSP, OPDante Option Card

SKU: ASNXP1502D MFR: NXP1502D
Earn VIP Reward Points

Key Features

  • Experience pristine audio with this professional power amplifier's superior sound quality.
  • Optimize your sound system with 2 channels and Protea DSP for unmatched audio clarity.
  • Harness network control with the NXP1502, perfect for installed sound applications.
  • Enjoy flexible connectivity with the optional Dante card for seamless audio integration.
  • Rely on the amplifier's robust protection features, ensuring long-term reliability.
  • Simplify setup with user-friendly installation features for quick and easy operation.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ashly NXP1502 Specifications

Channels

Channels

Jump to...
  • No of channel

    2

  • Output

    For Max Output Power: Measured in Watts Per Channel, Low Impedance Output Mode, All Channels Driven at Rated Load: 2 Ohms: 150 W
    4 Ohms: 150W
    8 Ohms: 150 W

    For Low Impedance Output Mode: Bridge Output, Measured in Watts, All Channels Driven at Rated Load:
    4 Ohms: 300 W

    8 Ohms: 300 W

Line Current Draw

Jump to...
  • Power Draw

    Sleep Mode: less than 1 W
    Standby Mode: 25W
    Idle (No Signal): 53W
    1/8 Max Power @ 2 Ohms: 230W

  • Current Draw

    For 120 VAC
    Sleep Mode: 94mA
    Standby Mode: 0.27
    Idle (No Signal): 0.50

    Typical: 2.2

Thermal Dissipation

Jump to...
  • Dissipation

    Thermal Dissipation: Sleep Mode: 2.14
    Standby Mode: 51
    Idle (no signal): 112
    1/8 Max Power @ 2 Ohms: 325

General

Jump to...
  • Voltage Gain

    Selectable at 26dB, 32dB, 38dB, or 1.4V

  • Damping Factor

    >250 (8 Ohms load <1kHz)

  • Input High Pass Filter

    80Hz 2nd order

  • Distortion (SMPTE, typical)

    <0.5%

  • Distortion (THD-N, typical)

    <0.5% (8 Ohms, 10dB below rated power, 20Hz-20kHz)

  • Channel Separation

    -75dB (dB from full output, 1kHz)

  • Signal-to-Noise (20Hz-20kHz)

    >99dB

  • Frequency Response

    20Hz-20kHz, +/-0.05dB

  • Balanced Input Connector

    Euroblock 3.5mm

  • Input Impedance

    10k Ohms

  • Maximum Input Level

    +21dBu

  • Speaker Output Connector

    Euroblock 7.62mm

  • Control Network

    RJ-45 connector, 100MB Ethernet

  • AUX Output Connector

    Balanced Euroblock 3.5mm

  • AUX Output Maximum Level

    +21dBu

  • Remote Standby Contact Closure

    Euroblock 3.5mm, close contact pin to ground (G) for standby mode

  • Preset Recall Contact Closure

    Euroblock 3.5mm, close contact to ground (G) for preset 1-4 recall

  • Data Connection

    Euroblock 3.5mm - Gnd, +18V, Data Out, Data In

  • Fault Condition Logic Outputs

    Euroblock 3.5mm - fault indicated by loss of 1Hz "heartbeat" pulse signal

  • Remote DC Level Control

    Euroblock 3.5mm - Gnd, CV, V+ per input

  • Attenuators (per channel)

    Rear panel, software, offset link group, remote control. Fully off = Mute

  • Amplifier Protection

    Shorted output power limiting, over-tem-perature, DC-output, power-supply fault, mains-fuses & inrush-current limiting

  • Cooling

    Continuously variable temperature controlled fan

  • Environmental

    32-120 Degree F (0-49 Degree C) (noncondensing)

LED Indicators

Jump to...
  • Front Panel LED Indicators: Switch

    POWER (white): Switch: On, Off, Standby (flashing)
    PROTECT (red): On (fault condition or shut down), Off
    SLEEP (blue): On, amplifier is asleep from audio inactivity
    DISABLE (yellow): On, power switch & attenuators are disabled
    COM (green): On, for Ethernet data or Device ID

  • Front Panel LED Indicators: Per Channel

    CLIP/MUTE (red): Clip at 1dB below rated output / Mute
    SIGNAL (green): -18dB below rated output
    CURRENT (green): Brightness is proportional to output current
    TEMP (yellow): On dim at 90% max operating temperature, On full bright + protect at 100%
    Per Channel Pair, On, Off

Power Requirement

Jump to...
  • Nominal

    110 - 240VAC

  • Operating Range

    70-270VAC

  • Minimum power-up

    70VAC

  • Power Supply Type

    SMPS with active PFC (Power Factor Correction)

  • AC Mains Line Cord Connector

    Detachable Nema 5-15 for USA(May vary for export)

DSP: Input Source Selection

Jump to...
  • Options

    Analog, Auto (optional Network, AES3)

DSP: Brick Wall Limiter

Jump to...
  • Threshold

    -20dBu to +20dBu

  • Ratio

    infinity

  • Attack

    0.2ms/dB to 50 ms/dB

  • Release

    5ms/dB to 1000ms/dB

DSP: Compressor

Jump to...
  • Threshold

    -20dBu to +20dBu

  • Ratio

    1.2:1 to infinity

  • Attack

    0.2 to 50ms

  • Release

    5ms/dB to 1000ms/dB

  • Detector

    Peak/Average

  • Attenuation Bus

    2 available

  • Metering

    In, Out, Attenuation, Graphical

DSP: Autoleveler Controls

Jump to...
  • Target Level

    -40dBu to +20dBu

  • Action

    Gentle, normal, aggressive, user-defined

  • Maximum Gain

    0dB to +22dB

  • Metering

    Input, Gain, Attenuation

  • Ratio

    1.2:1 to 10:1

  • Threshold Below Target

    -30dB to 0dB

  • Gain Increase/Decrease Rate

    5ms/dB to 1000ms/dB

  • Hold Time

    0-6 sec

DSP: Ambient Noise Compensation (Output)

Jump to...
  • Max Gain

    -20dB to +20dB

  • Min/Base Gain

    -40dB to -1dB

  • Gain Change Rate

    0.2s/dB to 20s/dB

  • Link Group

    16 available

  • ANC Input Channel

    1-2 or 1-4

  • Noise Threshold

    -40dBu to +20dBu

  • Program/Ambient Gain Ratio

    0.3:1 to 3:1

  • Metering

    Input level, Attenuation, Average noise

DSP: Ducking

Jump to...
  • Trigger Threshold

    -80dBu to +20 dBu

  • Ducking Release

    5ms/dB to 1000ms/dB

  • Ducking Depth

    0dB to -30dB, infinity

  • Enable Ducking at Matrix Mixer

    Yes

  • Metering

    Input

DSP: Gate

Jump to...
  • Threshold

    -80dBu to +20dBu

  • Range

    off, 100dB to 0dB

  • Attack

    0.2ms/dB to 50 ms/dB

  • Release

    5ms/dB to 1000ms/dB

  • Metering

    Key Signal, Gate LED, Graphical

DSP: Advanced Gate Controls

Jump to...
  • Key Engage Enable

    Yes

  • Key Frequency

    20Hz to 20kHz

  • Key Bandwidth

    0.016 to 3.995 Octave

DSP: Gain

Jump to...
  • Gain (with/without VCA)

    -50dB to +12dB, off, polarity invert

  • Digital VCA Groups

    4 available

  • Remote RD8C Gain

    Enable per channel, 0dB to infinity

  • WR-5 (neWR-5) Remote Gain

    0 to -50dB, Mute

DSP: EQ (31-Band)

Jump to...
  • File Type

    .CSV, .FIR (input FBS is disabled on channel using output FIR)

  • Filter Type

    Constant Q or Proportional

  • Bandwidth

    0.499oct to 0.25oct

DSP: EQ (Parametric 2,4,6, or 10 Band)

Jump to...
  • Frequency

    20-20kHz

  • Level

    -30dB to +15dB

  • Q Value

    92.436 to 0.267

DSP: EQ (Hi/Low Shelf 6/12 dB/oct)

Jump to...
  • Frequency

    20Hz-20kHz

  • Level

    -15dB to +15dB

DSP: EQ (All Pass)

Jump to...
  • Frequency

    20Hz-20kHz

DSP: EQ (Variable Q HP/LP)

Jump to...
  • Frequency

    20Hz-20kHz

  • Q Value

    3.047 to 0.267

DSP: EQ (Notch/Bandpass)

Jump to...
  • Frequency

    20Hz-20kHz

  • Q Value

    92.436 to 0.267

DSP: Feedback Suppressor (Input Only)

Jump to...
  • Filters

    12

  • In/Out per filter

    Yes

  • Lock per filter and global lock

    Yes

  • Filter Modes

    Float, Restricted, Manual

  • Filter Type

    Notch, Parametric

  • Filter Frequency Range

    20Hz to 20kHz

  • Notch Filter

    Infinity

  • Parametric Filter

    +15dB to -30dB

  • Filter Bandwidth

    0.016 to 3.995 Octave

  • Detector Sensitivity

    5 levels

  • Float Time

    5 min to 24 hours

DSP: Crossover (2 /3/4 Way Crossover)

Jump to...
  • Bessel & Butterworth Filters

    12/18/24/48 dB/oct

  • Linkwitz-Riley Filter

    12/24/48 dB/oct

  • Frequency

    Off, 20Hz-20KHz

DSP: Delay (@ 48kHz Sampling Rate)

Jump to...
  • Speaker Delay

    0-21ms

  • Delay

    0-682ms

DSP: Delay (@ 96kHz Sampling Rate)

Jump to...
  • Speaker Delay

    0-10.6ms

  • Delay

    0-341ms

DSP: Audio Metering Tool

Jump to...
  • Range

    -60dBu to +20dBu

  • Increments

    1dB

  • Peak Hold Indicator

    Yes

DSP: Signal Generator Tool

Jump to...
  • Signal Level

    Off, -50dBu to +20dBu

  • Sine Wave Frequency

    20Hz-12kHz

DSP: Matrix Mixer

Jump to...
  • Gain (0.5dB increments)

    Off, -50dB to +12dB

  • Mute

    Per channel

  • Auto-Mixer Enabled

    Per channel

  • Global Auto-mixer Response

    0.01sec to 2sec

  • Enable Ducking at Mixer

    Yes

  • Ducking LED

    Per channel if enabled

  • Metering

    Level, auto-mixer level

DSP: Processors

Jump to...
  • Input A/D, Output D/A

    24 bit

  • DSP Processors

    32-bit floating point

  • Sample Rates

    48kHz, 96kHz

  • Propagation Delay @ 48kHz:

    1.42ms

  • Propagation Delay @ 96kHz:

    0.71ms

Physical

Jump to...
  • Dimensions (W x H x D)

    19 x 1.75 x 14.54" (483 x 45 x 369mm)

  • Weight

    12.1 lb (5.5kg)

About Ashly NXP1502

Let the NXP1502 2-Channel Networkable Multi-Mode Power Amplifier with Protea DSP and OPDante Option Card elevate your audio experience. This advanced, high-quality amplifier is designed to cater to the most demanding live sound environments and fixed audio installations, making it ideal for performance venues, stadiums, arenas, convention centers, schools, storefronts, and worship spaces.

This multifunctional amplifier is part of Ashly's NX series, available in 2 or 4-channel models, and comes in three different versions: NX (base model series), NXE (networkable), and NXP (networkable + DSP). It boasts Ethernet Control using Protea NE software, allowing for seamless integration with Ashly programmable remotes or third-party controllers.

The NXP1502 amplifier is equipped with aux preamp outputs, instant standby mode, preset recall, and fault condition logic outputs. It also offers optional Dante, CobraNet, or AES3 digital audio capability, all factory-installed. The amplifier's Real-Time Clock with Event Scheduler allows for automatic execution of selected functions and tasks, programmed using PneS software and stored in the amplifier.

The NXP1502 amplifier also offers Ashly Remote Control via an iPad app, providing custom design of secure wireless control over a network. Its Class-D Switching Amplifier Technology features a switch-mode power supply that automatically detects 110 - 120VAC or 220 - 240VAC operation, making the NXP1502 one of the lightest in its class.

The amplifier's Multi-Mode Operation with Selectable Outputs on each channel allows you to choose the desired output mode. Set the DIP-switch configuration for Low Impedance (2, 4, and 8 Ohm), or Constant Voltage (70V or 100V) and you're set to go. The NXP1502 also features Ashly's EMS (Energy Management System) for power-saving, providing an automatic sleep-mode drawing less than 1 Watt.

The NXP1502 amplifier is designed to drive 2 Ohm loads at full power, with a maximum rated output power of 150W per channel at Low Z, 25V mode, 70V mode, and 100V mode. It also features 32-bit DSP processing at 48kHz or 96kHz sampling rate, offering a range of DSP functions including swept load impedance, gain, dynamics, equalization, a matrix mixer, crossover, delay, and a signal generator.

The NXP1502 amplifier is compatible with Microsoft Windows 10, 8, 7 (Vista/XP) 32 & 64 bit systems, making it a versatile choice for audio professionals. With its temperature-dependent variable speed forced-air cooling, this durable amplifier is built to last, providing powerful, high-quality sound for all your audio needs.

Ashly NXP1502 Features

  • Selectable 80Hz 2nd-order Hi-pass filter, limiter, and input gain per channel
  • Remote DC level control per channel
  • Extensive protection circuitry, continuously variable cooling fan
  • Ethernet port for software control and monitoring of amplifier functions, with front panel COM activity LED
  • Serial data port available for Ashly WR-5 programmable remote control (optional RS-232 converter INA-1 available for third party controllers)
  • Instant Standby Mode, 40% reduction in idle power consumption, triggered by contact closure, software control, or event scheduler
  • Preset recall via contact closure, software control, remote control, or event scheduler
  • Programmable power-on delay
  • Aux preamp line outputs for driving other amplifiers
  • Fault condition logic outputs per channel
  • Euroblock input connectors
  • Euroblock loudspeaker connectors
  • Detachable AC mains line-cord connector
  • Safety/Compliance: TUV (pending), CE, FCC, RoHS

Warranty Information

This product has a limited warranty of 60 months for parts and 60 months for labor.

Key Features

  • Experience pristine audio with this professional power amplifier's superior sound quality.
  • Optimize your sound system with 2 channels and Protea DSP for unmatched audio clarity.
  • Harness network control with the NXP1502, perfect for installed sound applications.
  • Enjoy flexible connectivity with the optional Dante card for seamless audio integration.
  • Rely on the amplifier's robust protection features, ensuring long-term reliability.
  • Simplify setup with user-friendly installation features for quick and easy operation.

What's in the box:

  • NXP1502 2-Channel Networkable Multi-Mode Power Amplifier
  • Ashly 5 Year Limited Warranty
